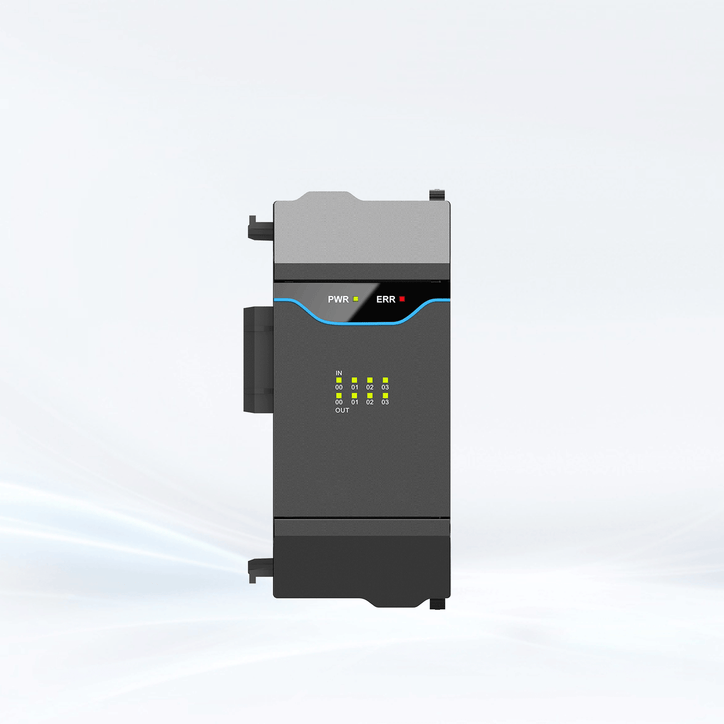

F5-MD0800
FEATURES F5-MD800 Input Characterstics 8 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage 30V Curent 9mA Voltage in state 1 >15V 15~28.8V Voltage in...
F5-MD3200
FEATURES F5-MD3200 Input Characterstics 32 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage 30V Curent 9mA Voltage in state 1 >15V 15~28.8V Voltage in...
F5-MD1616R
FEATURES F5-MD1616R Input Characteristics 16 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V...
F5-MD1616N
FEATURES F5-MD1616N Input Characteristics 16 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V...
F5-MD1600
FEATURES F5-MD1600 Input Characterstics 16 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage 30V Curent 9mA Voltage in state 1 >15V 15~28.8V Voltage in...

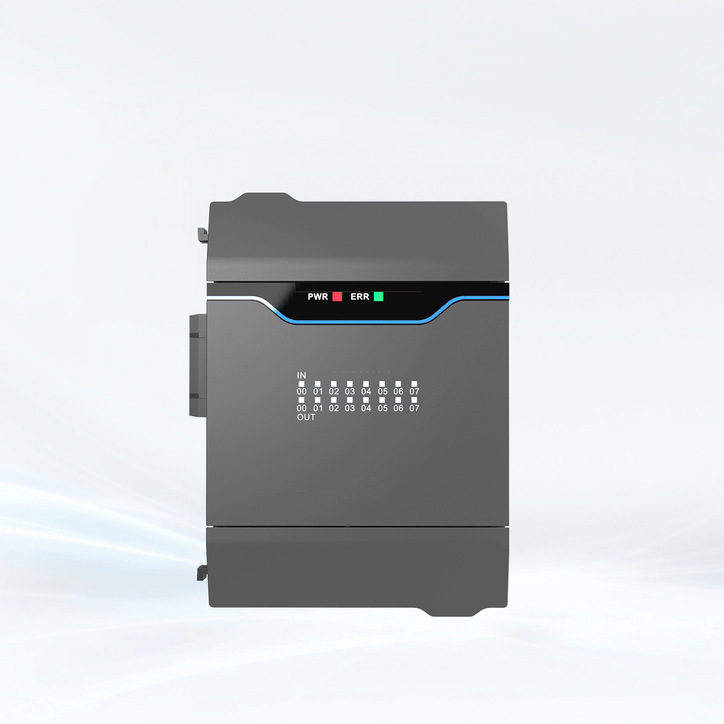

F5-MD0808R
FEATURES F5-MD0808R Input Characteristics 8 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V...
F5-MD0808N(P)
FEATURES F5-MD0808N(P) Input Characteristics 8 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V...
F5-MD0404R
FEATURES F5-MD0404R Input Characteristics 4 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V Voltage in...
F5-MD0404N(P)
FEATURES F5-MD0404N(P) Input Characteristics 4 Point Bipolar Rated Voltage 24 VDC Input Range 0~28.8V DC Rated Current 7mA Voltage Peak Value 30V Current 9mA Voltage in State 1 >15V 15~28.8V Voltage in...
F5-MD0032N(P)
FEATURES F5-MD0032N(P) Output Characterstics 32 Point Output Type NPN(PNP) Rated Voltage 24VDC Voltage Range 19.2~28.8VDC Rated Current 0.5A Current/group 0.5A Output point of each group Voltage/drop Maximum1VDC Leakage Current...
F5-MD0016N(P)
FEATURES F5-MD0016N(P) Output Characterstics 16 Point Output Type NPN(PNP) Rated Voltage 24VDC Voltage Range 19.2~28.8VDC Rated Current 0.5A Current/group 0.5A Output point of each group Voltage/drop Maximum1VDC Leakage Current...

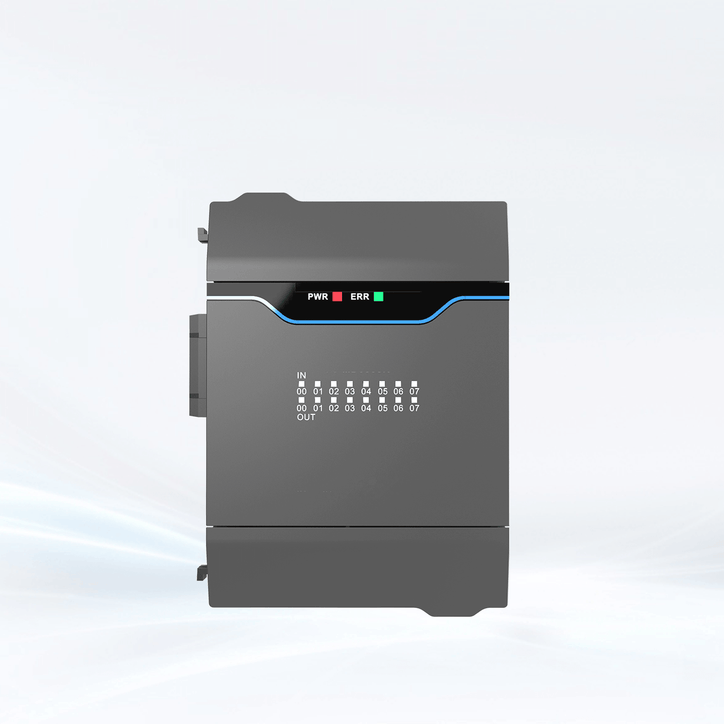

F5-MD0016R
FEATURES F5-MD0016R Output Characterstics 16 Point Rated Voltage 24VDC,220VAC Input Range 5V~30VDC;100VAC~250VAC Rated Current Maximum2A/point Current/group (4 points) 4A(relay output @60℃,50%derating required) Maximum Switch Voltage 250VAC,30VDC Current/point 5A Isolation Type...
Regular price
$126.99
Sale price
$126.99
