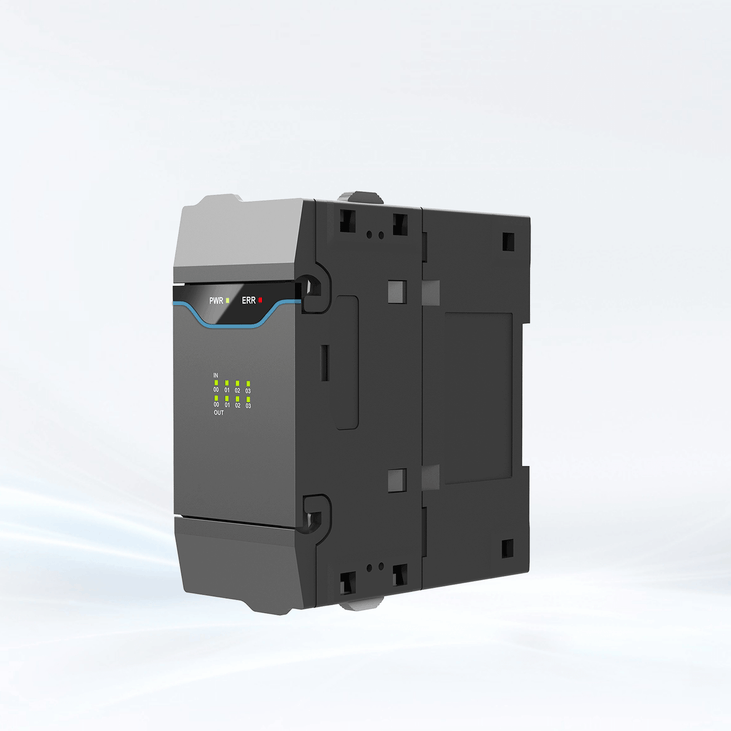

F5-MD0800

Regular price
$80.99
Sale price
$80.99
Regular price
CPU DIGITAL / ANALOG EXPANSION MODULES
MODULAR COMBINATION AND FLEXIBLE CONFIGURATION
REMOVABLE TERMINALS
RAIL / SCREWS INSTALLATION, EASY AND CONVENIENT
Download related documents and software
Availability: In stock Out of stock
F5-MD0800F5-MD0800F5-MD0800F5-MD0800
FEATURES F5-MD800
Input Characterstics 8 Point Bipolar
Rated Voltage 24 VDC
Input Range 0~28.8V DC
Rated Current 7mA
Voltage 30V
Curent 9mA
Voltage in state 1 >15V 15~28.8V
Voltage in state 0 <5V 0~5V
Currentin state 1 >2.5mA
Currentin state 0 <1.0mA
Isolation optical coupler
Input Impedance 3.3KΩ
Filter Time Default 1ms,16 equally divided levels selectable from unfiltered to 100ms
Compatibility Compatible with 2/3 wire sensors
Input Type Source/sinking
Cable Length and Ttype Max 100m shielded cable,50m unshielded cable
Protection(overvoltage) 30V maximum,limited to 1 hour per dayfrequency
Wiring Structure Removable terminal block
Dimension  Dimension A
