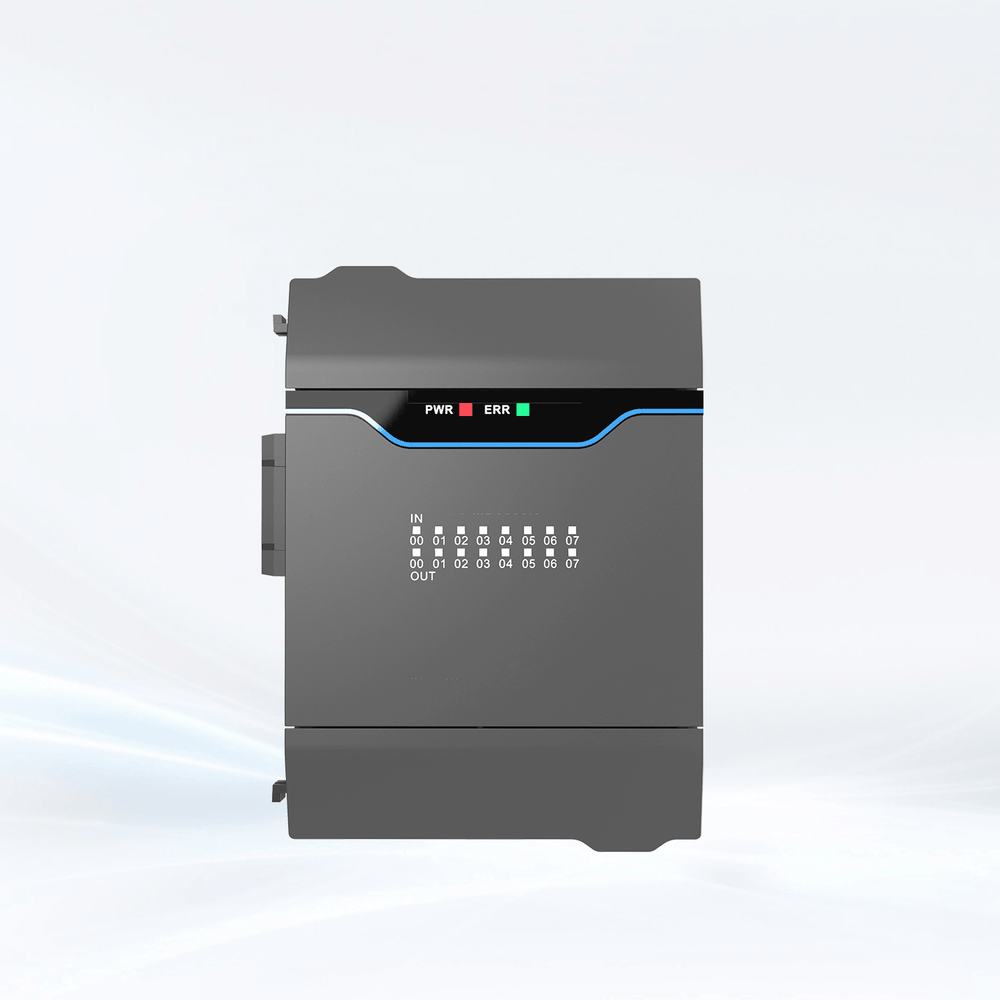

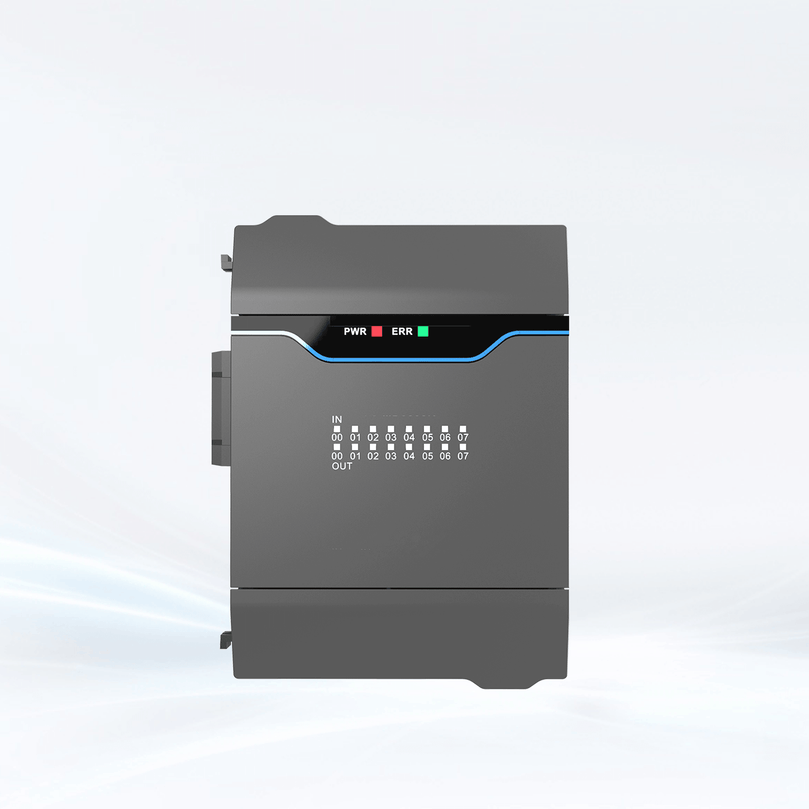

F5-MD0016R

Regular price: $126.99
Sale price: $126.99
Regular price
Unit price: per

Download related documents and software

Availability: In stock Out of stock

Product variants

Quantity

Description

FEATURES	F5-MD0016R
Output Characterstics	16 Point
Rated Voltage	24VDC,220VAC
Input Range	5V~30VDC;100VAC~250VAC
Rated Current	Maximum2A/point
Current/group (4 points)	4A(relay output @60℃,50%derating required)
Maximum Switch Voltage	250VAC,30VDC
Current/point	5A
Isolation Type	Relay coil
Maximum Load	0.1Hz
Without Load	5Hz
Resistive Load	2A/point/24VDC/220VAC
Mechanical Life	Minimum:5,000,000 times
Electrical Contact Life	Minimum:100,000 times
Short Circuit Protection	None
Wiring Structure	Removable terminal block
Dimension	Dimension B
