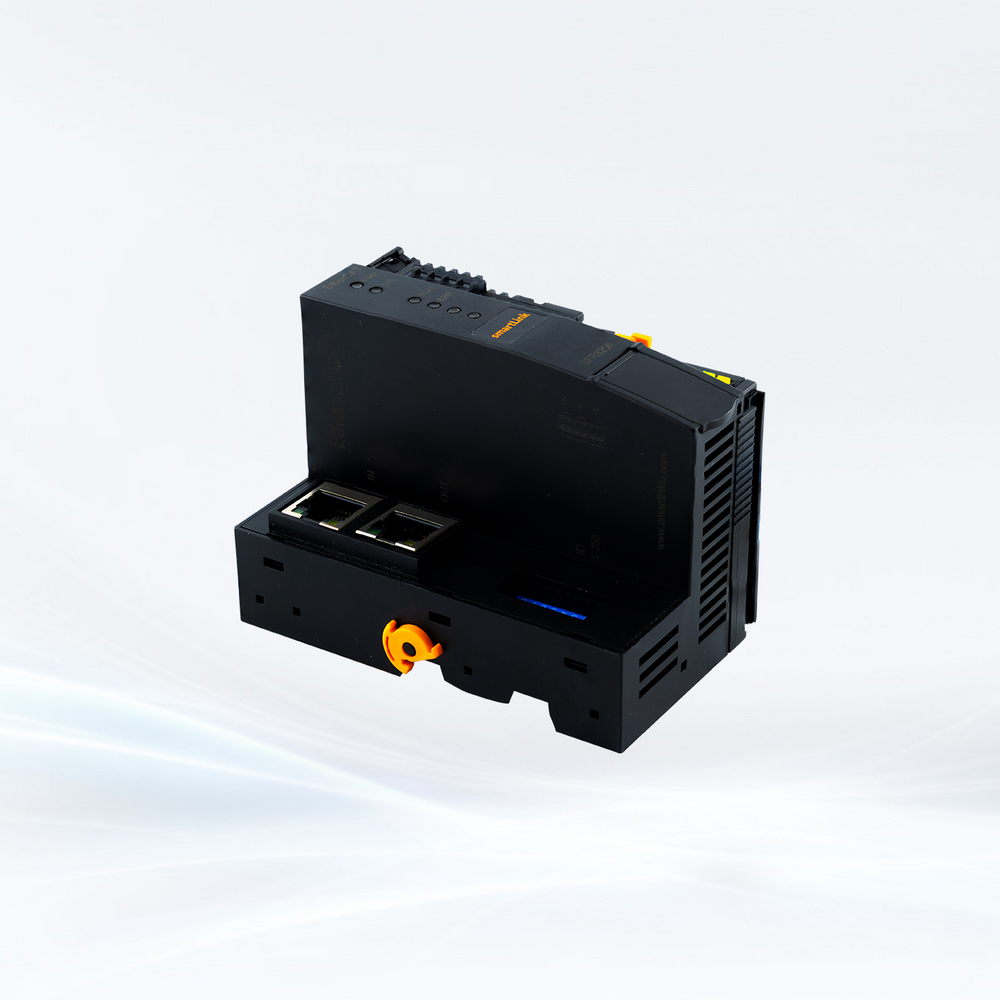

SFR-PFNT
- Regular price
- $383.00
- Sale price
- $383.00
- Regular price
-
- Unit price
- per
The SFR series remote I/O supports multiple industrial Ethernet protocols and is equipped with a variety of digital, analog, and temperature detection modules, precisely matching various applications.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | SFR-PFNT |
| Name | Profinet coupler |
| Bus parameters | |
| Maximum number of slaves stations | According to the master controller |
| Bus rate | 100Mbps、Adaptive,full-duplex work |
| Procedure data area | Input 1440 Bytes,Output 1440 Bytes |
| Network interface | 2*RJ45 |
| Communication cable | Category 5 twisted pair |
| Maximum transmission distance | 100m(Distance between stations) |
| Hardware parameters | |
| Maximum number of I/O modules | 32 |
| Enter the power supply | 24VDC( ±20%) |
| Current Consumption | ≤500mA(5VDC) |
| Physical parameters | |
| Dimensions | 63*100*69(W*H*D) |
| Weight | 170g |
| Operating temperature | -25~+70℃ |
| Storage temperature | -25~+85℃ |
| Relative humidity | 95%,no condensation |
| Ingress protection | IP20 |
