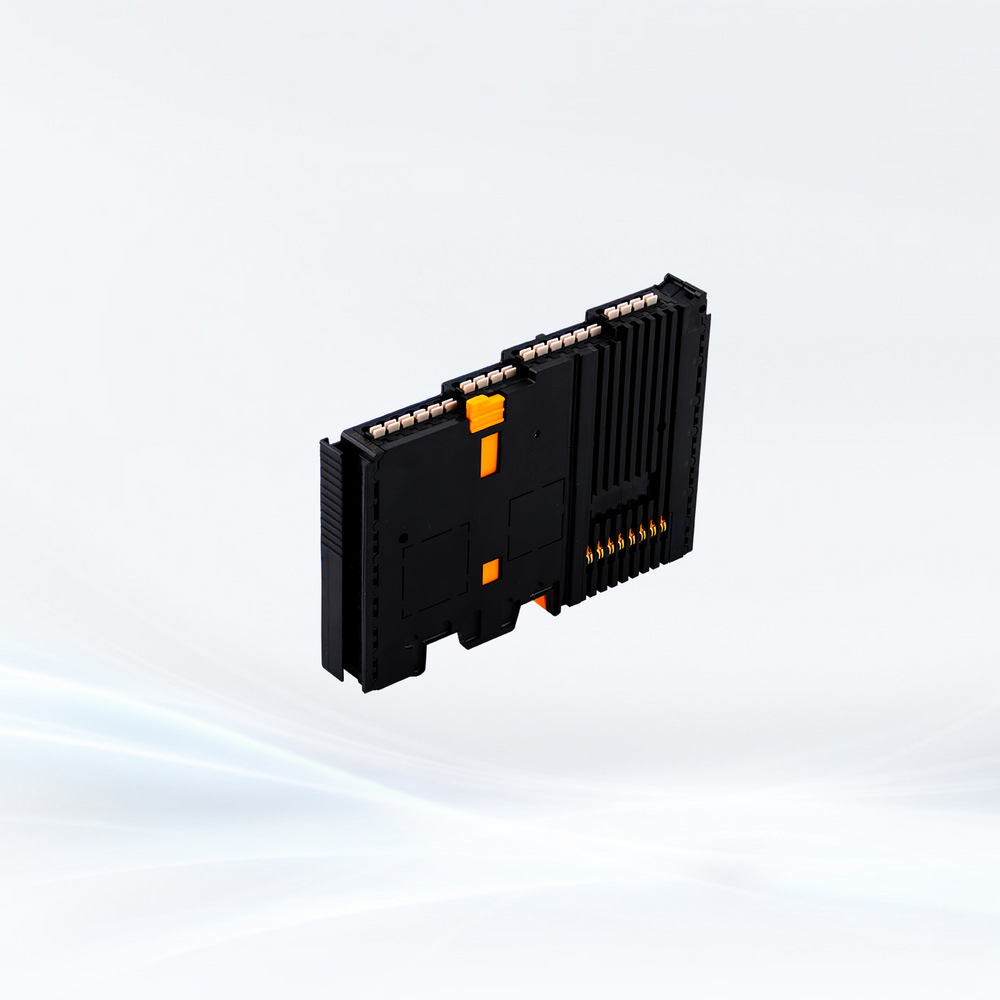

SFR-D1600
- Regular price
- $138.00
- Sale price
- $138.00
- Regular price
-
- Unit price
- per
The SFR series remote I/O supports multiple industrial Ethernet protocols and is equipped with a variety of digital, analog, and temperature detection modules, precisely matching various applications.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | SFR-D1600 |
| Name | 16-channel universal digital input module |
| Power Supply | |
| System Power | 5VDC ( ±10% ) |
| Current Consumption | ≤80mA |
| Common Terminal Voltage | The PNP source type input is connected to 0V DC |
| The NPN sink type input is connected to 24V DC | |
| Input characteristics | |
| Number of input channels | 16 |
| Input voltage | NPN sink Type Input 0VDC ( ±3V ) |
| PNP source Type Input 24VDC (± 20%) | |
| Isolation withstand voltage | 500V |
| Isolation method | Capacitive isolation |
| Fault diagnosis | |
| System power indication | support |
| Communication fault diagnosis | support |
| Physical parameters | |
| Dimensions | 12*100*69(W*H*D) |
| Weight | 55g |
| Operating temperature | -25~+70℃ |
| Storage temperature | -25~+85℃ |
| Relative humidity | 95%，no condensation |
| Ingress protection | IP20 |
