FV5-U3-PT6R0-INT
- Regular price
- $1,637.99
- Sale price
- $1,637.99
- Regular price
-
- Unit price
- per

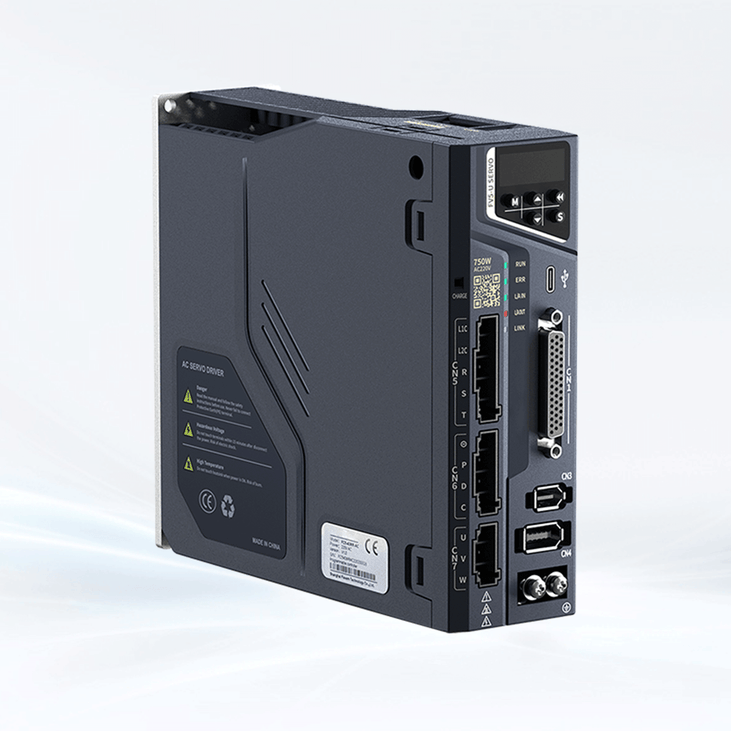

The FV5 Series Servo Drive supports Bluetooth connectivity, enabling wireless tuning via a smartphone without relying on a PC, offering greater operational flexibility.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FV5-U3-PT6R0-INT |
| Rated Current(Arms) | 6.0 |
| Maximum Output Current (Arms) |
15.0 |
| Input Power Supply (V) | Three phase AC380V-440V,-10%~10%,50/60Hz |
| Rated Power(W) | 1500 |
| Background Communication |
Type-C USB |
| EtherCAT Communication |
/ |
| RS485 Communication |
Support |
| CN3 | Biss-C Encoder /Tamagawa,Nikon Protocol Communication Encoder |
| CN4 | ABZ Encoder |
| Al | Supports 2 channels(16-bit per channel plus 12-bit per channel) |
| Normal Digital Input |
Supports 6 points |
| High-Speed DigitalInput |
Supports 2 points |
| Normal Digital Output |
Supports 5 points |
| High-Speed Digital Output |
/ |
| Low-Speed Pulse Input |
Collector input mode:200kpps |
| High-Speed Pulse Input |
Differential input mode:4Mpps |
| STO | / |
| Encoder Differential Output |
Full range support |
| Encoder Z-phase Pulse OC Output |
Full range support |
| Dynamic Braking | Full range support |
| Motor Temperature Protection |
Full range support |
| Brake Function | Built-in braking resistor |
| Built-in Braking Resistor Resistance (Ω) |
100 |
| Built-in braking Resistor Capacity(W) |
80 |
| Minimum Extemal Braking Resistor Resistance(Ω) |
60 |
| Installation Size | SIZE-C |
