FV5-U3-NC8R0
- Regular price
- $1,441.99
- Sale price
- $1,441.99
- Regular price
-
- Unit price
- per

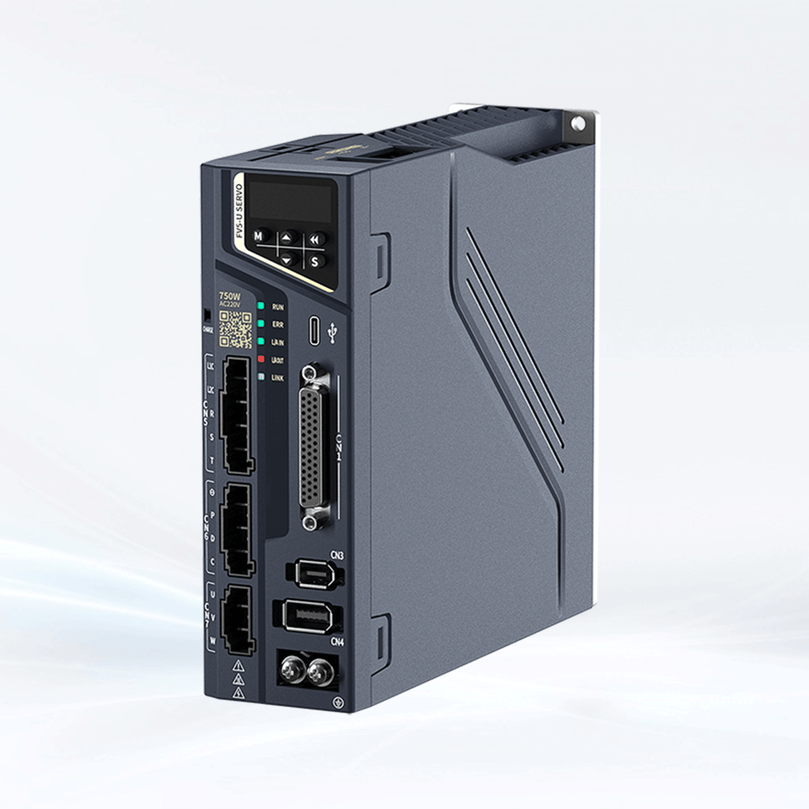

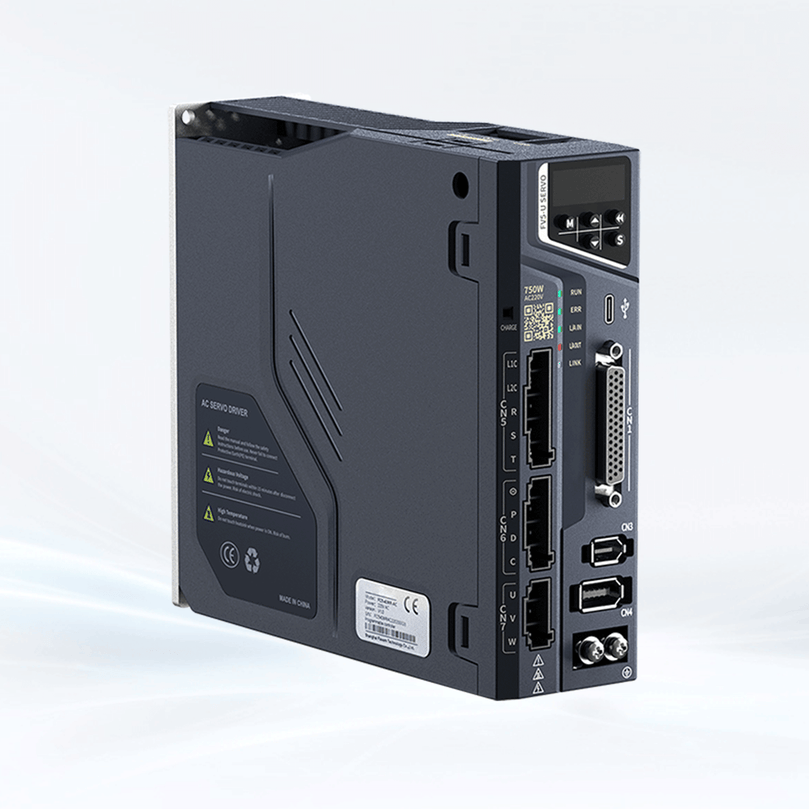

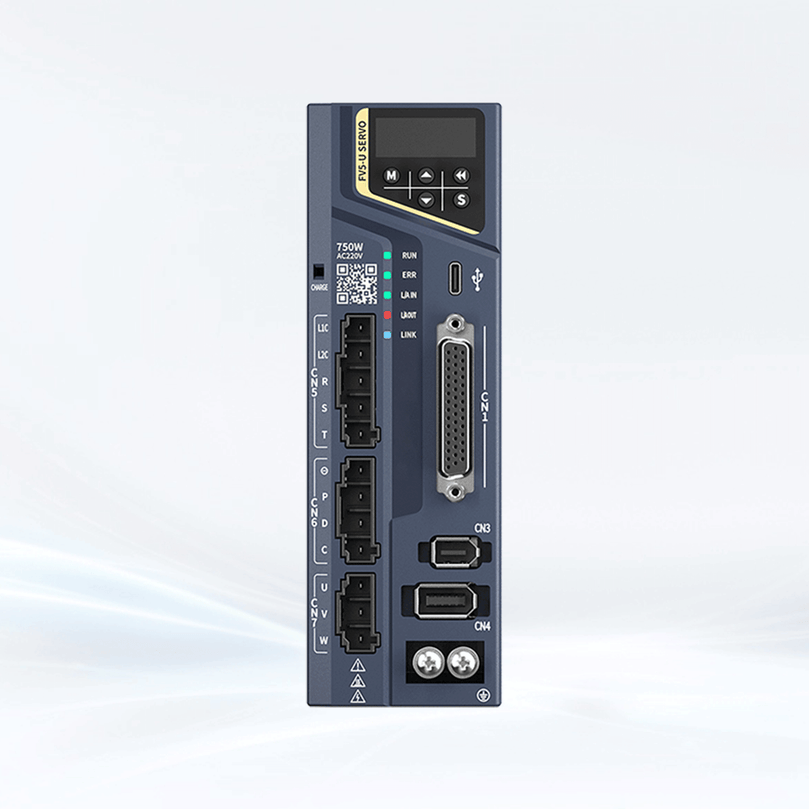

The FV5 Series Servo Drive delivers high responsiveness, high precision, and high speed for superior performance. Additionally, it supports model tracking, vibration suppression, and adaptive filtering, along with other advanced algorithms, making it highly adaptable to various industrial applications.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FV5-U3-NC8R0 |
| Rated Current(Arms) | 8.0 |
| Maximum Output Current (Arms) |
23.0 |
| Input Power Supply (V) | Three phase AC200V-240V,-10%~10%,50/60Hz |
| Rated Power(W) | 1500 |
| Background Communication |
Type-C USB |
| EtherCAT Communication |
Support |
| RS485 Communication |
/ |
| CN3 | Biss-C Encoder /Tamagawa,Nikon Protocol Communication Encoder |
| CN4 | ABZ Encoder |
| Al | Supports 1 channel (16-bit per channel) |
| Normal Digital Input |
Supports 3 points |
| High-Speed DigitalInput |
Supports 2 points |
| Normal Digital Output |
Supports 2 points |
| High-Speed Digital Output |
Supports 2 points |
| Low-Speed Pulse Input |
/ |
| High-Speed Pulse Input |
/ |
| STO | Support |
| Encoder Differential Output |
Full range support |
| Encoder Z-phase Pulse OC Output |
Full range support |
| Dynamic Braking | Full range support |
| Motor Temperature Protection |
Full range support |
| Brakefunction | Built-in braking resistor |
| Built-in Braking Resistor Resistance (Ω) |
25 |
| Built-in braking Resistor Capacity(W) |
80 |
| Minimum Extemal Braking Resistor Resistance(Ω) |
20 |
| Installation Size | SIZE-C |
