FS912R

Regular price
$1,167.99
Sale price
$1,167.99
Regular price

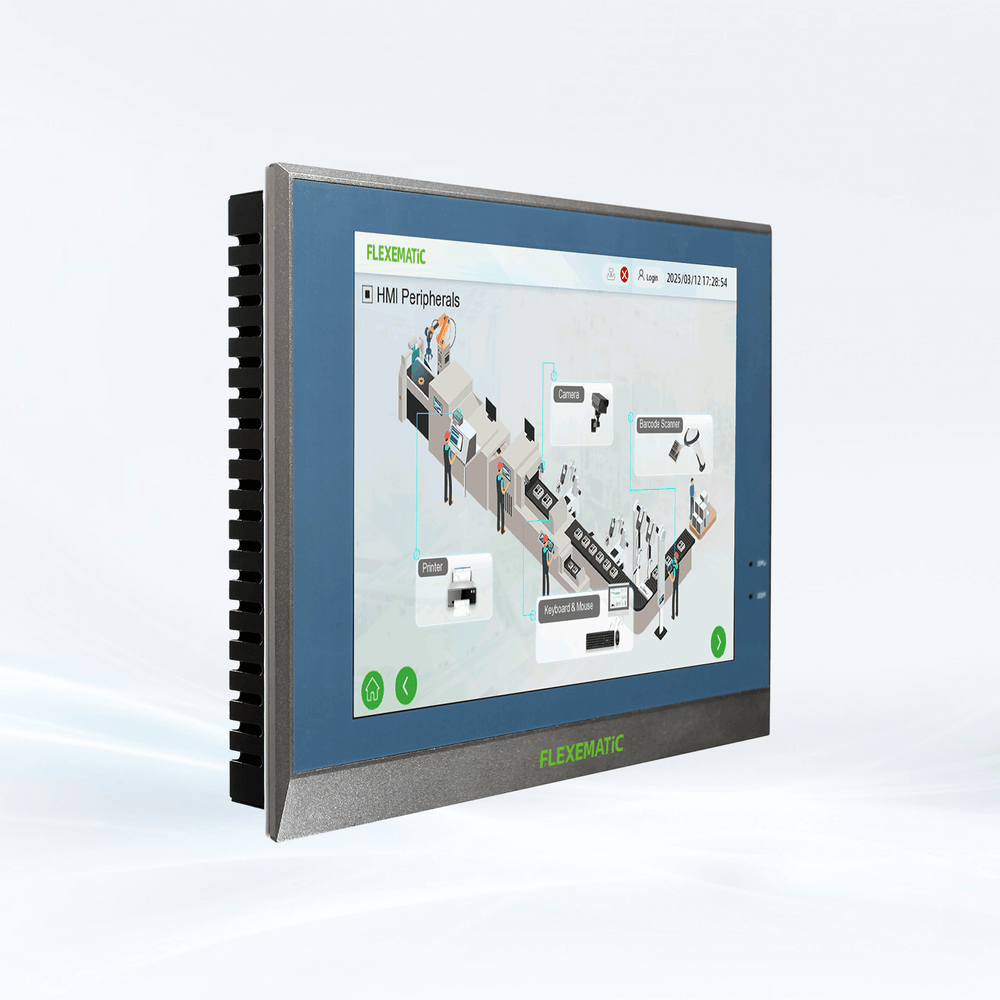

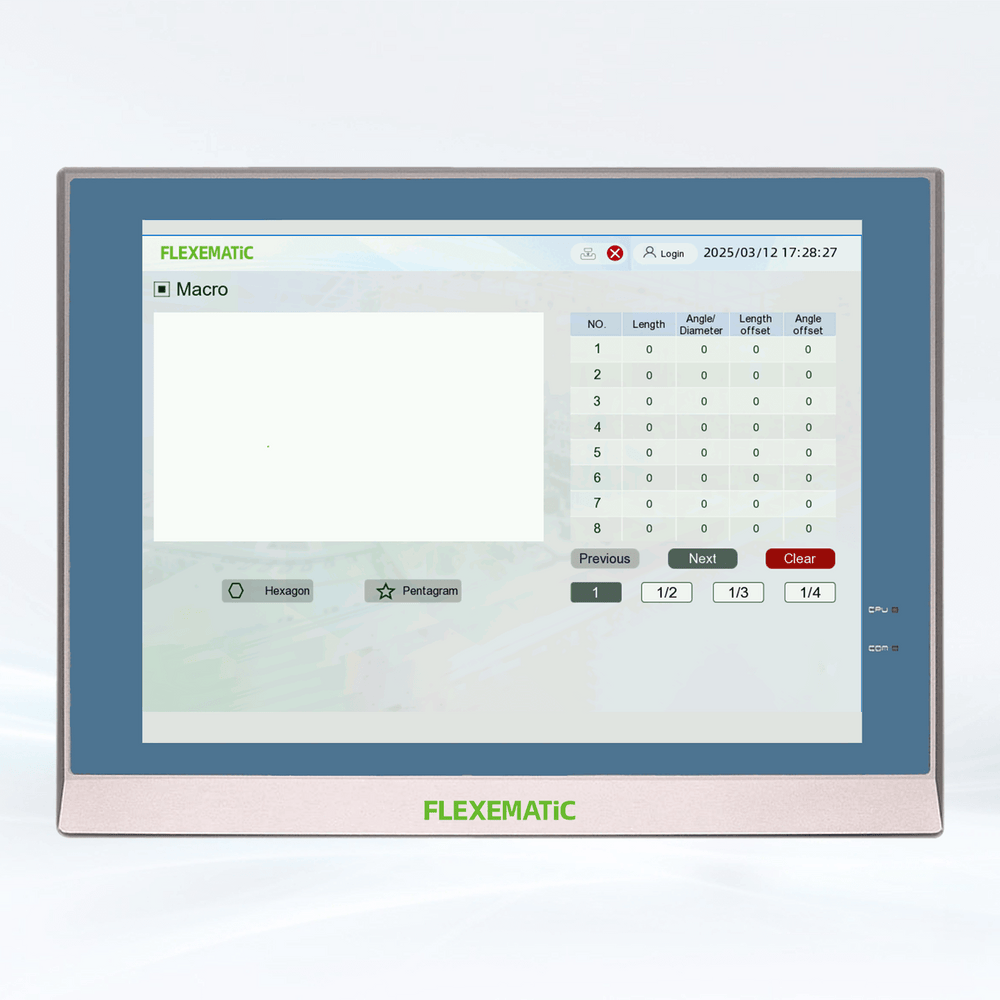

FLEXEMATiC FS912R touchscreen, featuring a 12.1" resistive touchscreen, gray metal enclosure, high-definition, high-brightness wide-view display, 1024x768 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, provides a high-performance touch-and-control solution.
Download related documents and software
Availability: In stock Out of stock
FS912RFS912RFS912RFS912R
FEATURES FS912R
Display 12.1" 4:3 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 80'/80'/80'/80'
Resolution 1024×768
Colors 16-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire resistive touchscreen
CPU 1.2GHz,4 cores Cortex-A53
Storage 8GB Flash + 1GB DDR3
RTC Built-in
SD Card NA

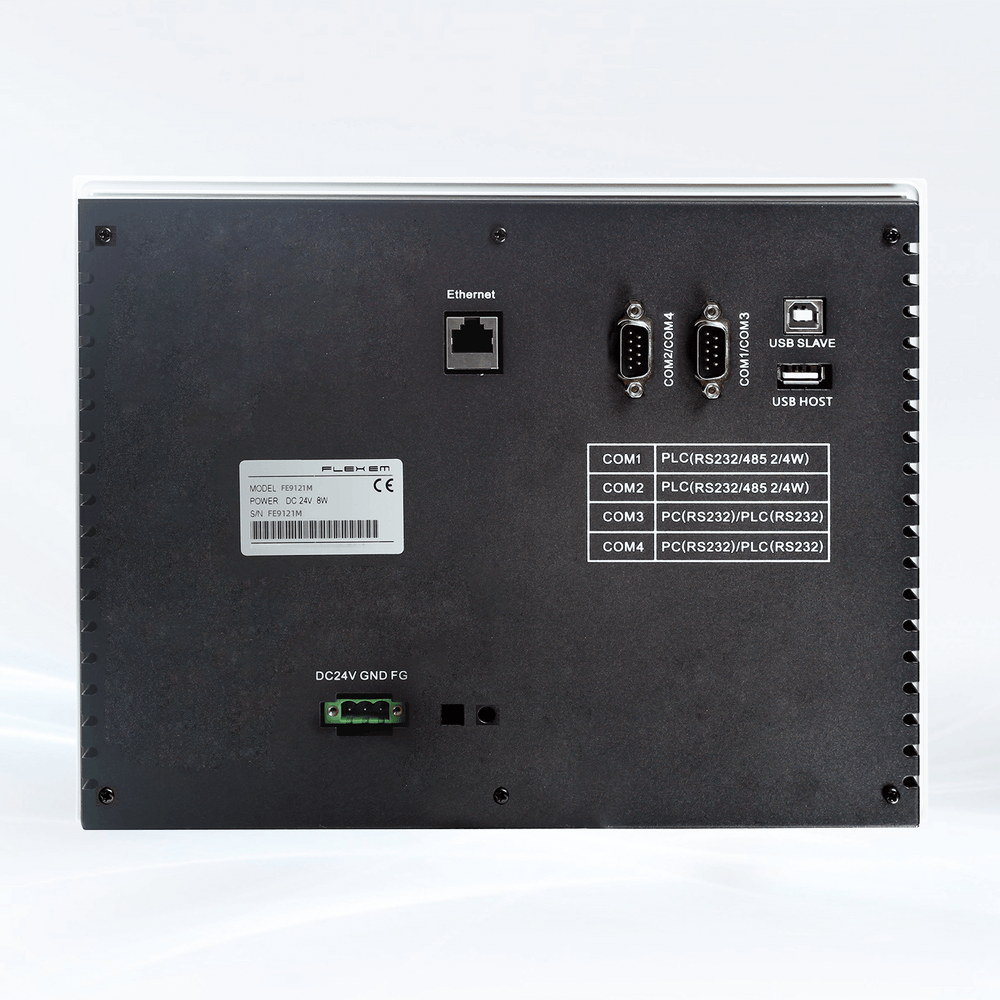

Ethernet port 1*RJ45,based on 10/100Mbps
USB Port 1*USB Slave 2.0 port, 1*USB Host 2.0 port
Download Method USB slave/Flash drive/Ethernat
Serial port COM1/COM2: RS232/RS485/RS422, COM3/COM4: RS232
Rated power <15W
Input Voltage DC24V,Working range DC18V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE,RoHS
Operating Temperature -10-60℃
StorageTemperature -20-70℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH(Non condensing)
Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65,Rear:IP20
Enclosure Material Aluminum alloy
Cutout Size 291mm×219mm
Dimensions 310mm×240mm×48.5mm
Weight About 2710g
