FS907R

Regular price
$312.99
Sale price
$312.99
Regular price

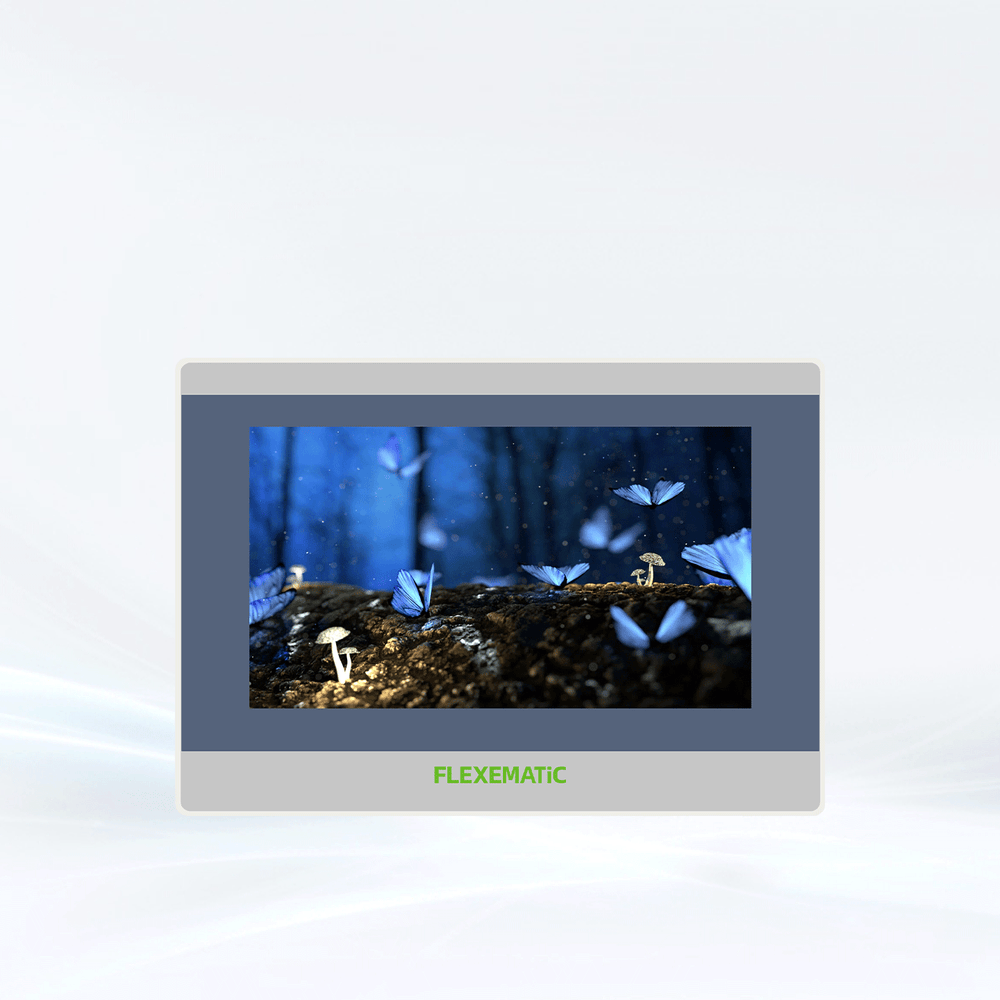

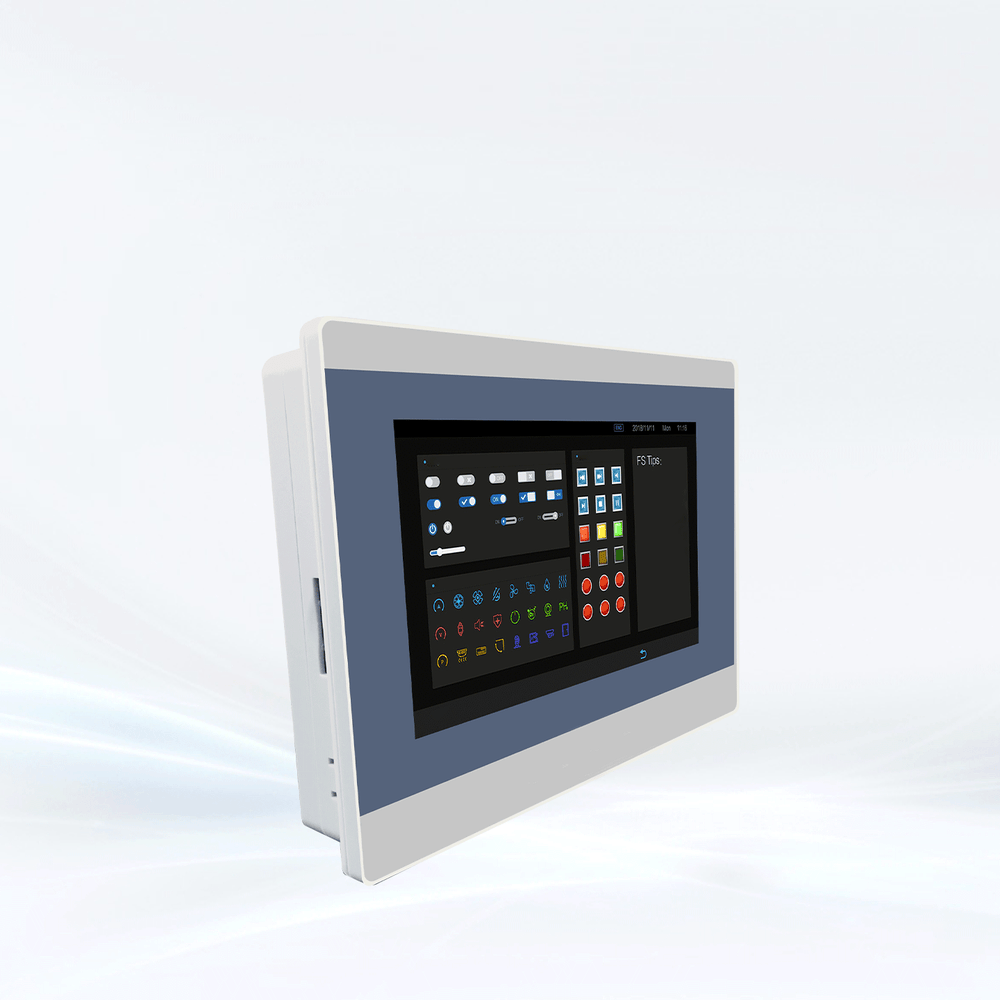

FLEXEMATiC FS907R touchscreen, featuring a 7" resistive touch screen, gray enclosure, high-definition high-brightness full-view display, 1024x600 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, provides a high-performance touch-and-control solution.
Download related documents and software
Availability: In stock Out of stock
FS907RFS907RFS907RFS907R
FEATURES FS907R
Display 7" 16:9 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 85'/85'/85'/85'
Resolution 1024×600
Colors 16-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire resistive touchscreen
CPU 1.2GHz,4 cores Cortex-A53
Storage 8GB Flash + 1GB DDR3
RTC Built-in
SD Card NA
Ethernet port 1*RJ45,based on 10/100Mbps
USB Port 1*USB Slave 2.0 port, 1*USB Host 2.0 port
Download Method USB slave/Flash drive/Ethernat
Serial port COM1: RS232/RS485/RS422, COM2: RS485, COM3: RS232
Rated power <10W
Input Voltage DC24V,Working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE,RoHS
Operating Temperature 0-50℃
StorageTemperature -20-60℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH(Non condensing)
Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65,Rear:IP20
Enclosure Material Engineering plastic, gray
Cutout Size 192mm×138mm
Dimensions 204mm×145mm×33.8mm
Weight About 560g
