FS610R
- Regular price
- $379.99
- Sale price
- $379.99
- Regular price
-
- Unit price
- per

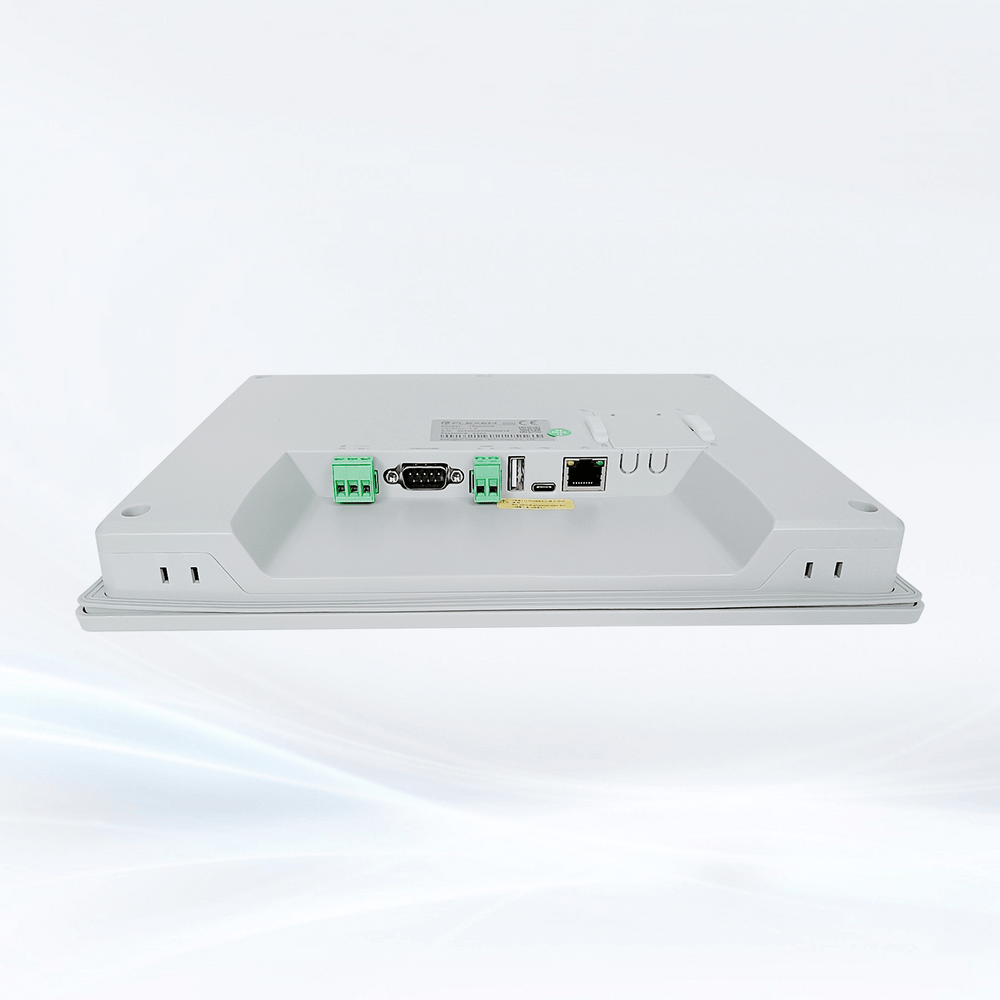

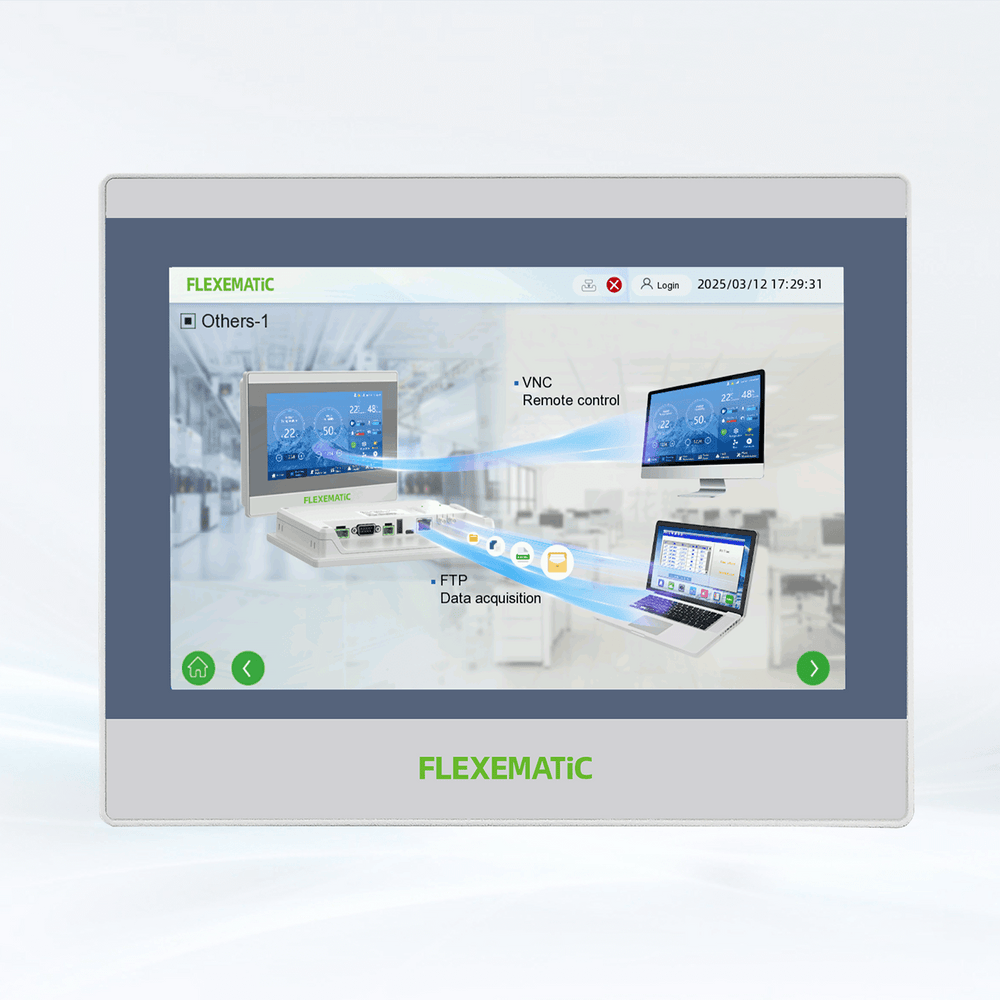

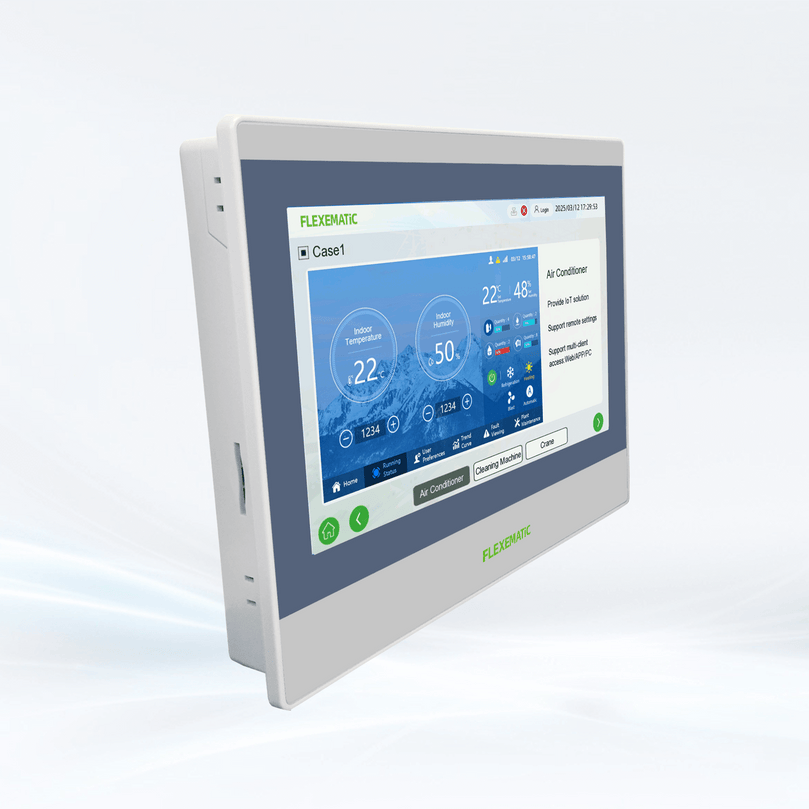

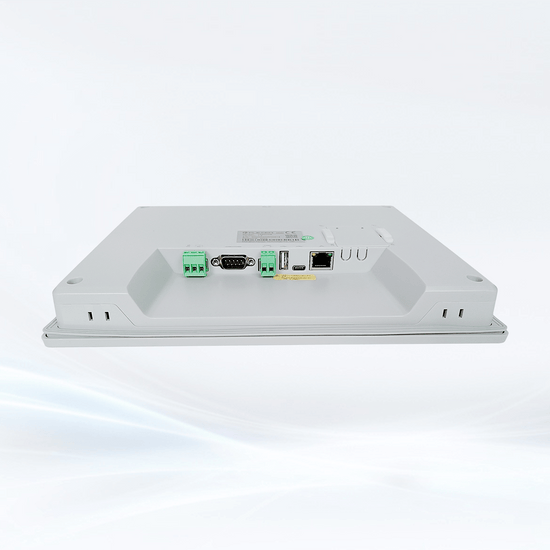

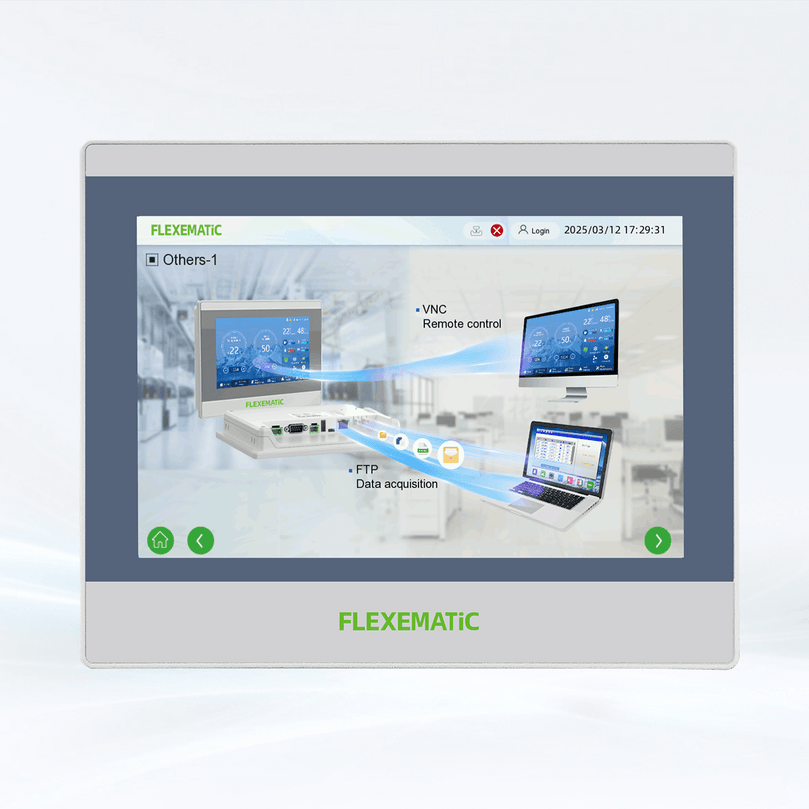

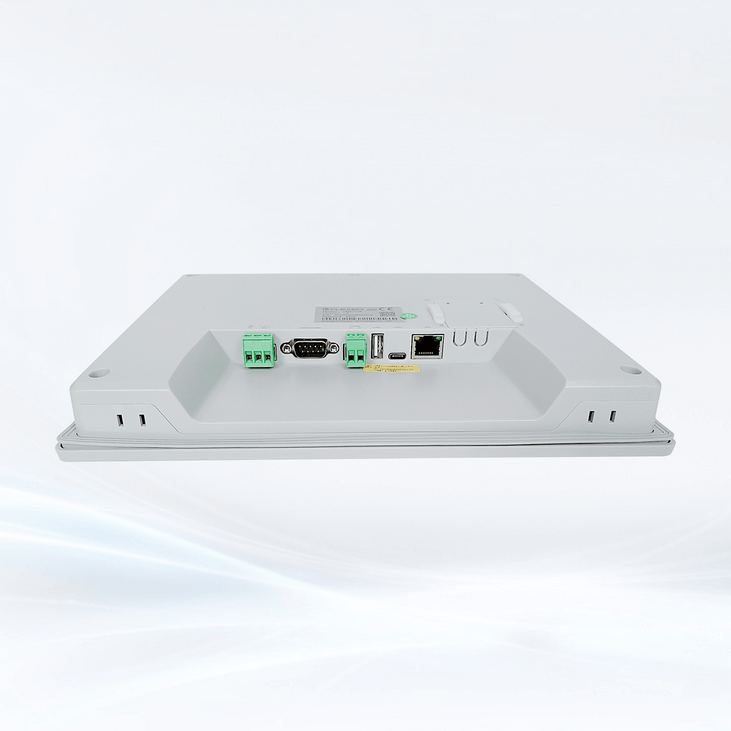

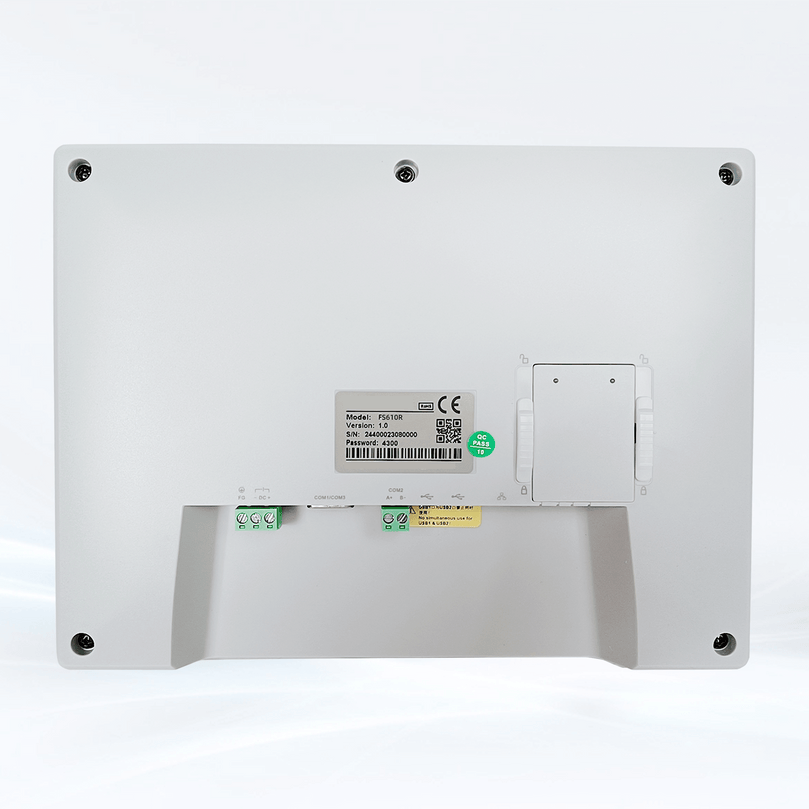

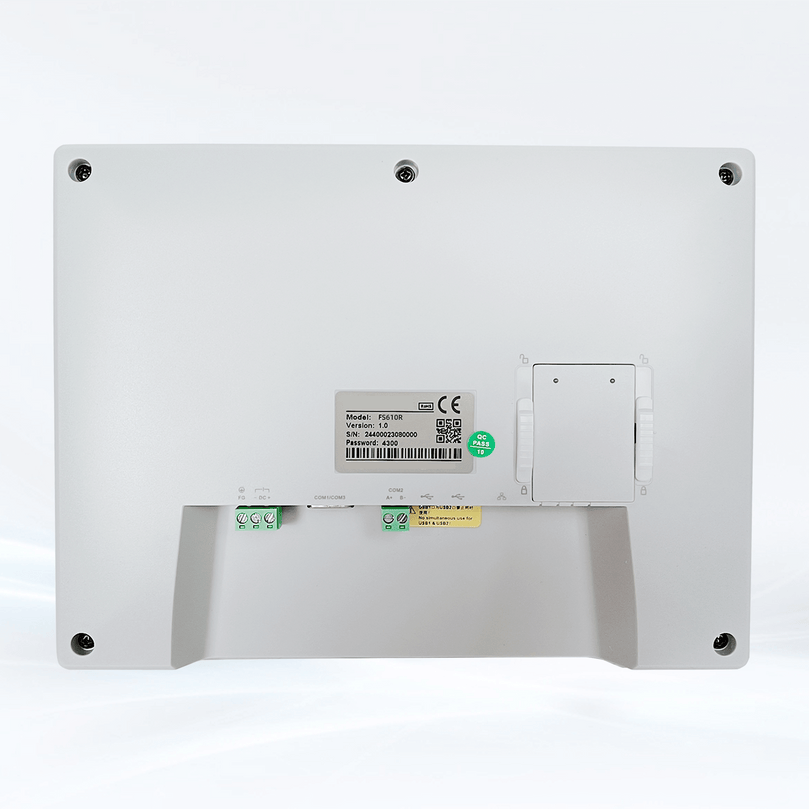

FS610R is a 10.1" resistive HMI with gray frame. The touchscreen 16:9 TFT LCD, featuring 1024×600 resolution, 24-bit colors. FS610R adopts high-performance 1GHz dual core Cortex-A7 CPU, with 4GB storage and 1 x Eth port. Pluggable IoT module provides more flexile internet connectivity solutions.
Download related documents and software
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FS610R |
| Display | 10.1" 16:9 TFT LCD |
| LCD Viewing Angles(T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 1024×600 |
| Colors | 24-bit |
| Brightness | 400 cd/m² |
| Backlight | LED |
| LCD Lifetime | 50000 hours |
| Touch Panel | 4-wire resistive touchscreen |
| CPU | 1GHz, Dual core Cortex-A7 |
| Storage | 4GB eMMC + 256MB DDR3 |
| RTC | Built-in |
| SD Card | NA |
| Ethernet port | 1*RJ45, based on 10/100Mbps |
| USB Port | 1*USB Type-C OTG, 1*USB Type-A |
| Download Method | USB slave / Flash drive |
| Serial port |
COM1: RS232/RS485/RS422, COM2: RS485, COM3: RS232 |
| Rated power | <10W |
| Input Voltage | DC24V, Working range DC9V-28V |
| Power supply protection | With lightning surge protection |
| Power Interruption Tolerance | <5mS |
| Certification | CE, RoHS |
| Operating Temperature | 0-50℃ |
| StorageTemperature | -20-60℃ |
| UV Resistance | Operating in high UV environment is prohibited |
| Environmental Humidity | 10-90%RH (Non condensing) |
| Vibration Endurance | 10-25Hz (X,Y,Z direction 2G/30 minutes) |
| Cooling Mode | Natural Cooling |
| Protection Level | Front:IP65, Rear:IP20 |
| Enclosure Material | Engineering plastic, gray |
| Cutout Size | 260mm×202mm |
| Dimensions | 273mm×213mm×36mm |
| Weight | About 890g |
