FS608X

$368.00
$368.00

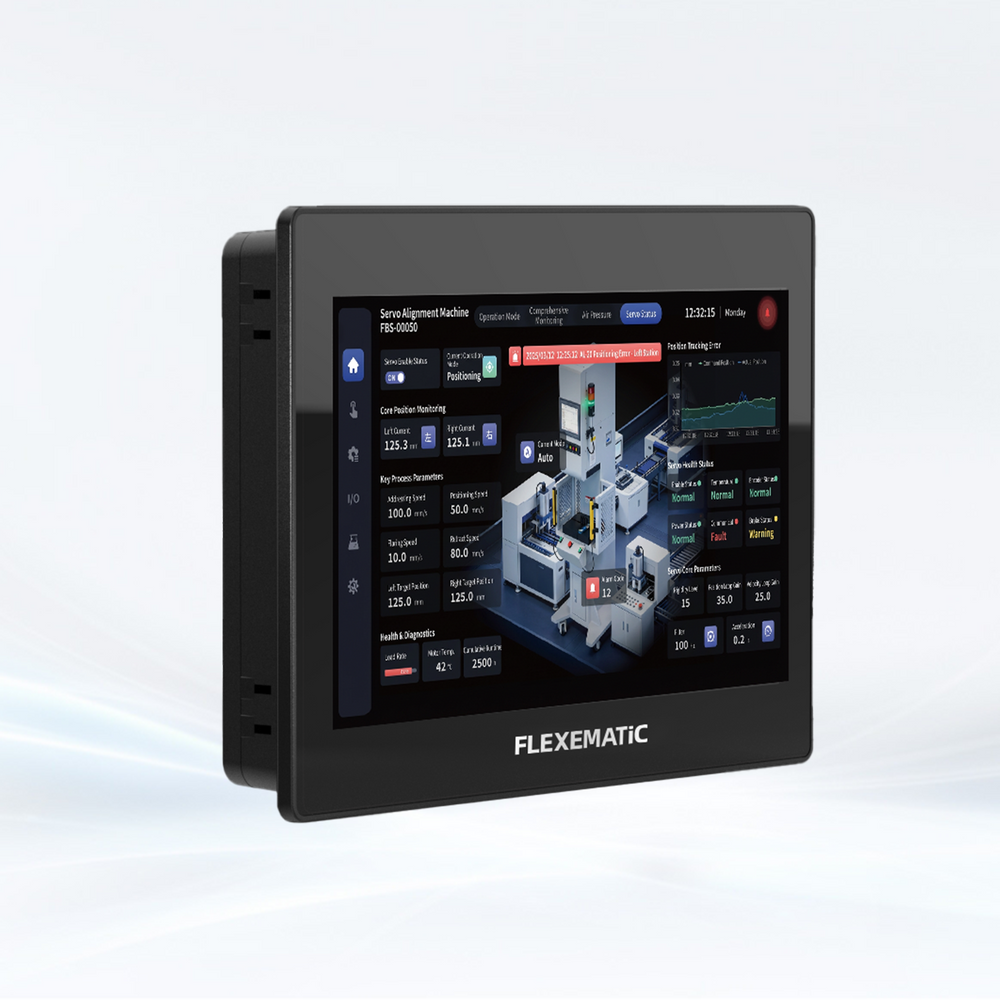

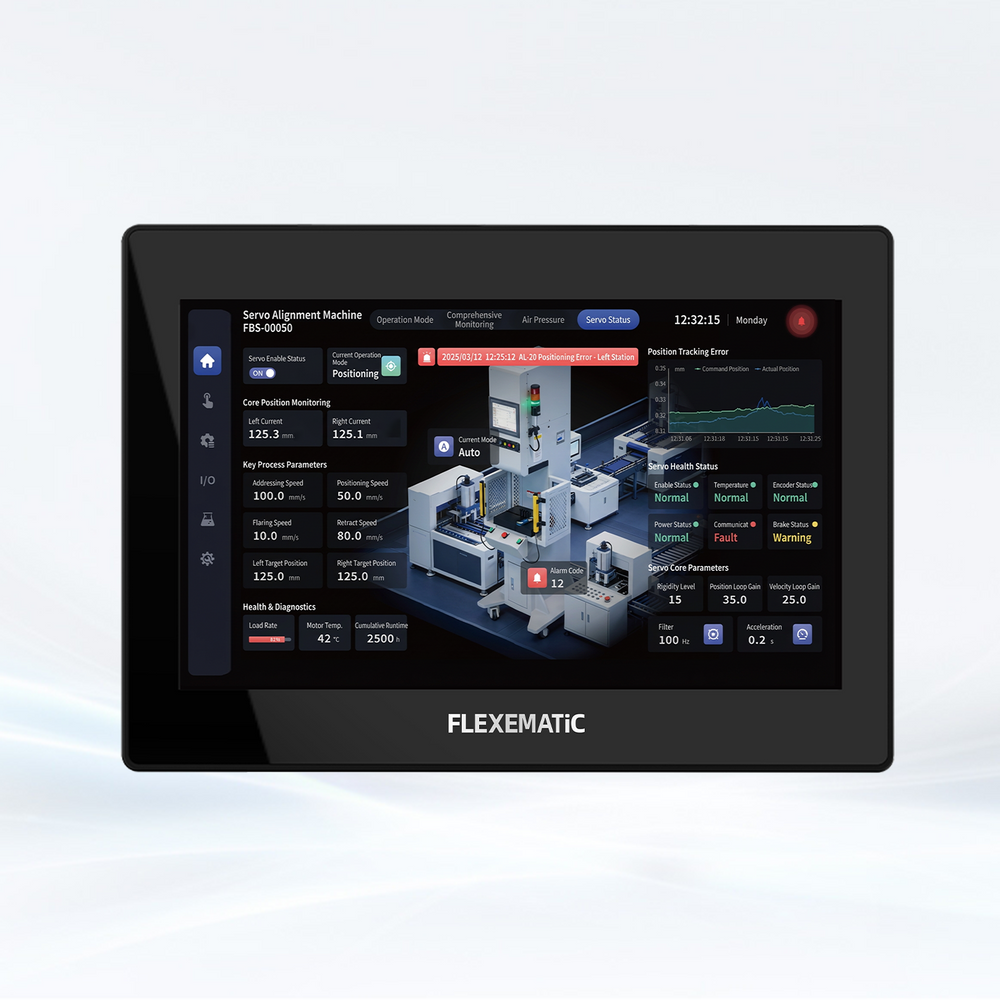

The FS608X, an 8-inch capacitive model in the series, offers more responsive touch compared to resistive screens. It is fully compatible with the older 7-inch resistive FE6370WE in both physical mounting and software, enabling a seamless upgrade without modifying control cabinet cutouts or programs. The new narrow-bezel design boosts the screen-to-body ratio from 45% to 60%, delivering a wider viewing area within the same installation space.
Availability: In stock Out of stock
FS608XFS608XFS608XFS608X

FEATURES FE6380X
Display 8" 16:9 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 85'/85'/85'/85'
Resolution 1024×600
Colors 24-bit
Brightness 300 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel Glass+Glass projective multi-touch capacitive touchscreen
CPU 1GHz, Dual core Cortex-A7
Storage 256MB Flash + 256MB DDR3
RTC Built-in
SD Card NA
Ethernet port 1*RJ45, based on10/100Mbps
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB slave / Flash drive/Ethernet
Serial port

COM1: RS232/RS485/RS422

COM2: RS485

COM3: RS232
Rated power ＜10W
Input Voltage DC24V, working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE, RoHS
Operating Temperature 0-50℃
StorageTemperature -20-60℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH (Non condensing)
Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65, Rear:IP20
Enclosure Material Engineering plastic
Cutout Size 190mm×136mm
Dimensions 204mm×145mm×36.6mm
Weight About 476g



FS6080X

A broader vision. Fluid interaction.


Same footprint.
Maximum information.

We kept the classic 7-inch physical cutout of the best-selling FS607R and utilized a precision narrow-bezel process to push the screen-to-body ratio to 60%. Your equipment instantly gains a larger viewing area without requiring any structur

al redesign.


Ultra-high transmittance. Brilliance in every detail.

Featuring an industrial-grade G+G tempered glass panel. Its outstanding optical clarity delivers sharpness and color saturation far beyond traditional resistive screens.

Paired with a newly redesigned system UI,

 it brings a leap in both visual quality and interaction.


Ultimate touch experience. Millisecond response.

Utilizing projected capacitive technology, it responds to the lightest touch, completely breaking free from the pressing required by traditional resistive screens. A high sampling rate combined with a true-flat glass surface ensures smooth, precise, and continuous swipe tracking, significantly enhancing control fluidity.


Multi-touch. A revolution at your fingertips.

Supports various gesture controls, including swipe to change pages, pull-down windows, two-finger pinch-to-zoom, and five-finger return to home. Complex parameter adjustments and data browsing are now effortlessly completed at your fingertips, completely transforming the user experience.


Tough, inside and out.

Fearless in harsh industrial environments. While the FE6380X boasts an elegant

pure black exterior, it possesses a hardcore, rock-solid interior.

6H Hardness Tempered Glass

Fear no scratches. Compared to traditional plastic film resistive screens that are easily scratched, the glass surface of the FE6380X features extreme hardness to effortlessly handle physical wear and tear.

Industrial Anti-interference

Built-in industrial-grade voltage-doubling sampling technology doubles the driving voltage, enhancing the signal-to-noise ratio at the source. It remains rock-solid even in strong electromagnetic environments like inverters and motors.





Plug and play.
Ultimate IoT freedom.

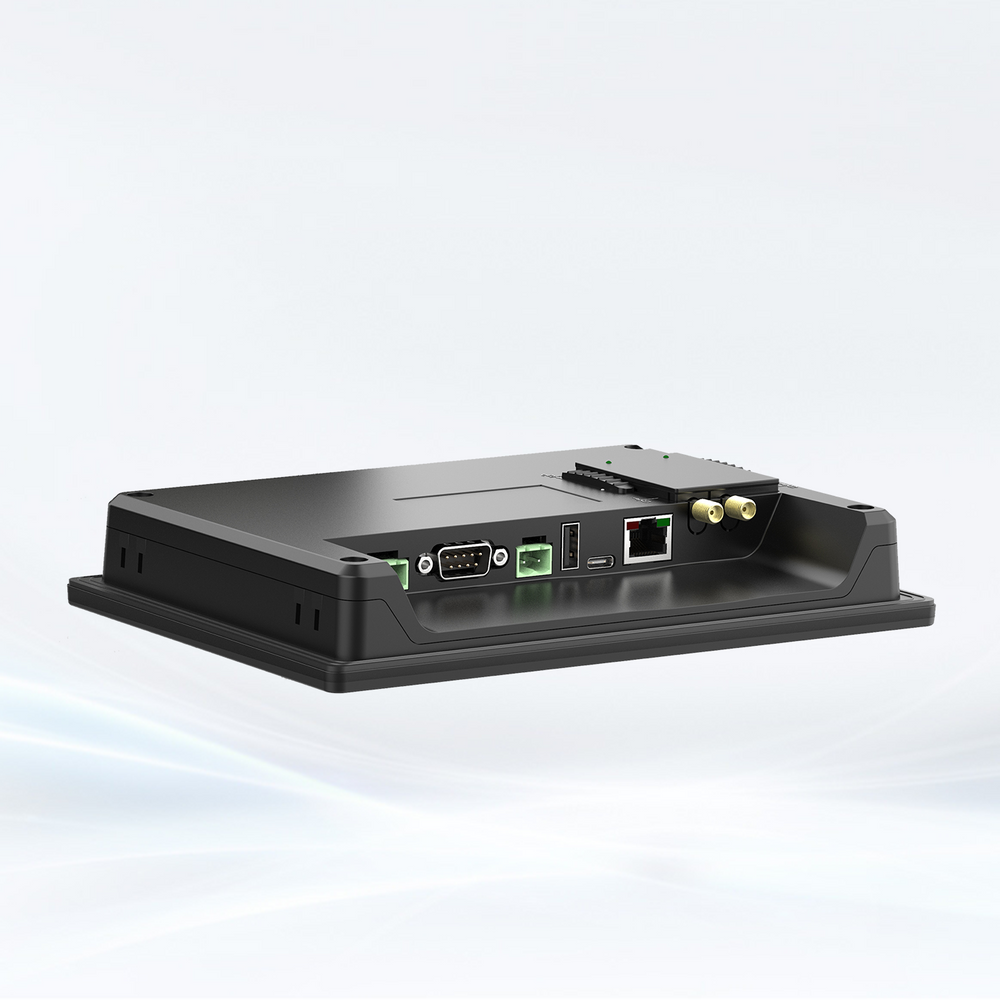

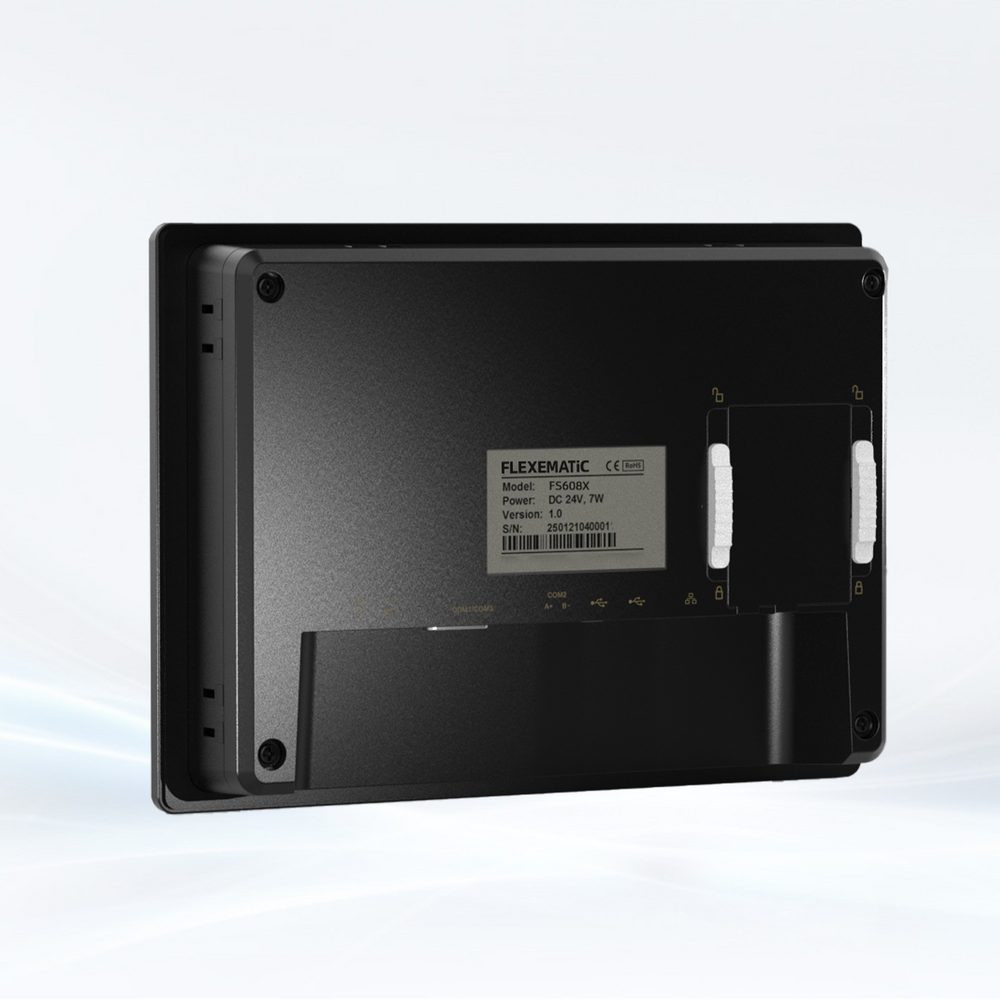

A hidden expansion slot is reserved on the back. The exclusive FLink2 IoT module seamlessly clicks into place. It supports smooth switching between 4G and WiFi, with hot-swappable antennas, completely breaking free from hardware constraints.
