FS607R

Regular price
$282.99
Sale price
$282.99
Regular price

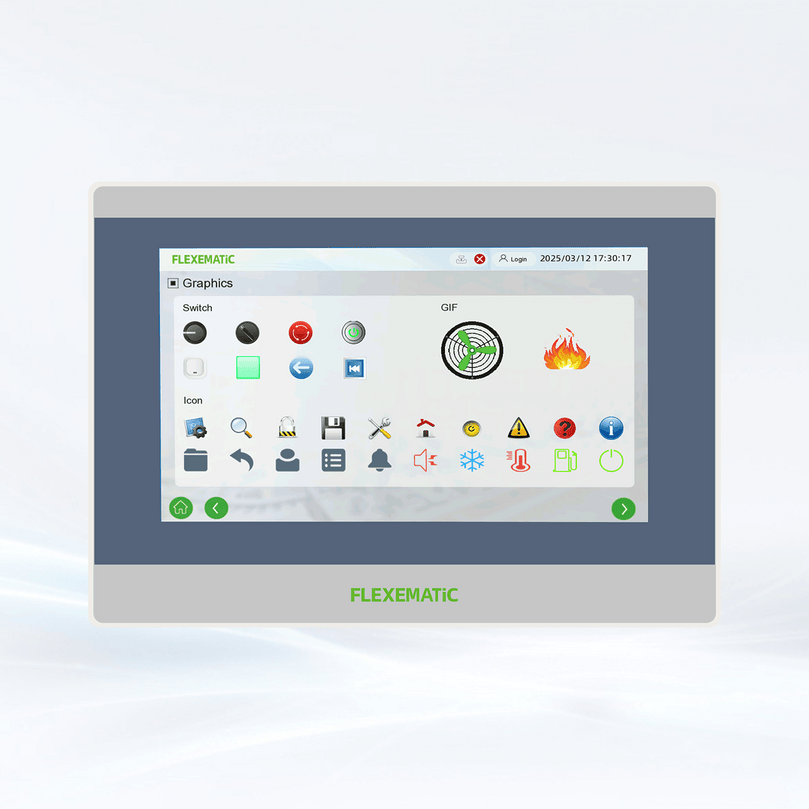

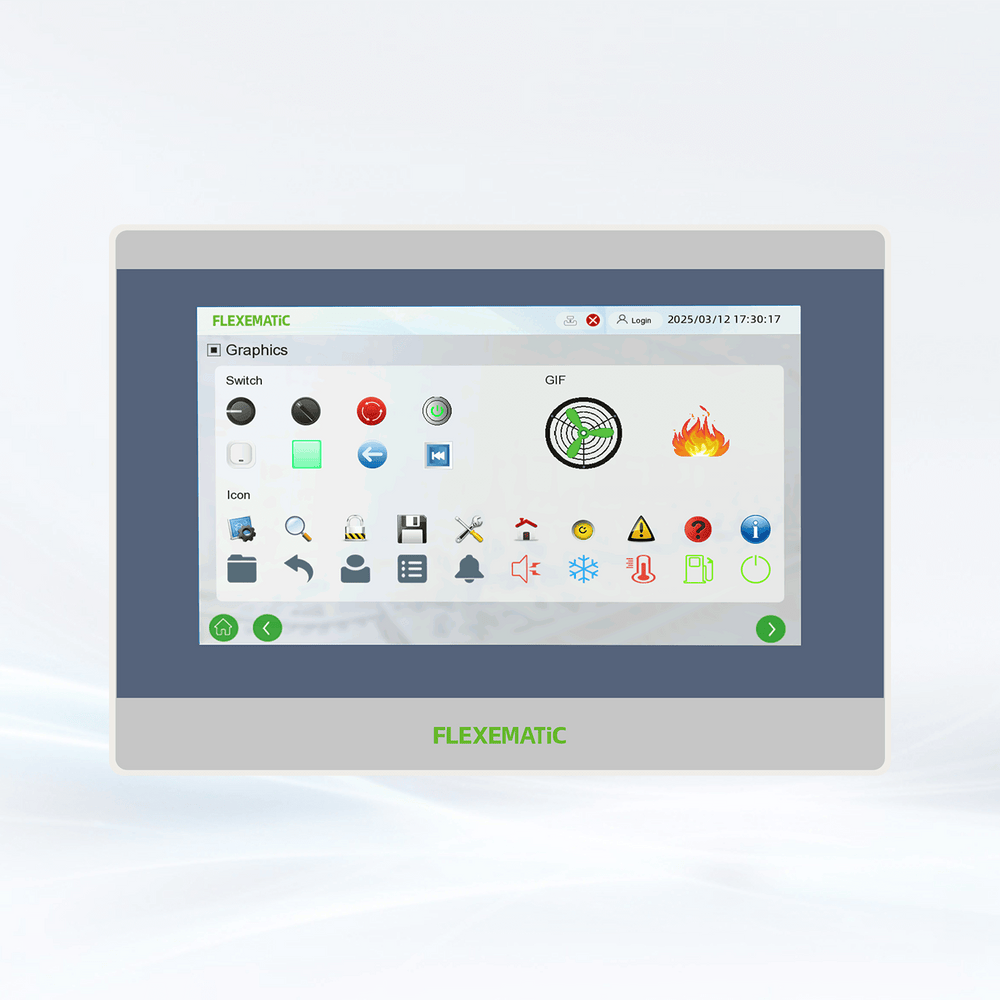

FS607R is a 7" resistive HMI with gray frame. The touchscreen is 16:9 TFT LCD, featuring 1024×600 resolution, 24-bit colors. FS607R adopts high-performance 1GHz dual core Cortex-A7 CPU, with 4GB storage and 1x Eth port. Pluggable IoT module provides more flexile internet connectivity solutions.
Download related documents and software
Availability: In stock Out of stock
FS607RFS607RFS607RFS607R
FEATURES FS607R
Display 7" 16:9 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 85'/85'/85'/85'
Resolution 1024×600
Colors 24-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire resistive touchscreen
CPU 1GHz, Dual core Cortex-A7
Storage 4GB eMMC + 256MB DDR3
RTC Built-in
SD Card NA
Ethernet port 1*RJ45, based on10/100Mbps
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB slave / Flash drive
Serial port

COM1: RS232/RS485/RS422,

COM3: RS232

Rated power <10W
Input Voltage DC24V, Working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE,RoHS
Operating Temperature 0-50℃
StorageTemperature -20-60℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH (Non condensing)
Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65,Rear:IP20
Enclosure Material Engineering plastic, gray
Cutout Size 190mm×136mm
Dimensions 204mm×145mm×36.6mm
Weight About 476g
