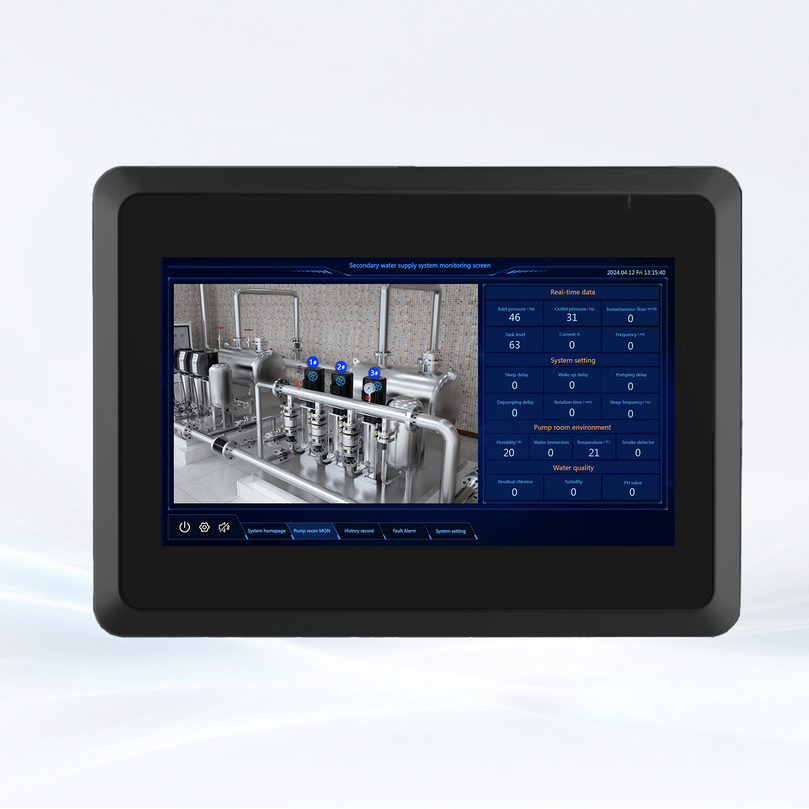

FS307R-IP
- Regular price
- $669.00
- Sale price
- $669.00
- Regular price
-
- Unit price
- per
FS7070IP combines a powerful CPU with an array of waterproof features and multi-layer silicone seals to deliver a robust IoT touchscreen suitable for a range of applications.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FS307R-IP |
| Display | 7" 16:9 TFT LCD |
| LCD Viewing Angles(T/B/L/R) | 50'/70'/70'/70' |
| Resolution | 800×480 |
| Colors | 16-bit |
| Brightness | 350 cd/m² |
| Touch Panel | 4-wire resistive touchscreen |
| CPU | 1GHz, Dual-core Cortex-A7 |
| Storage | 4GB eMMC+128 MB DDR3 |
| Ethernet Port | NA |
| USB Port | 1*USB Type-C 2.0 port,1*USB Type-A 2.0 port |
| Program Download Method | USB slave/Flash drive |
| Serial Port | COM1: RS485 |
| Rated Power | <10W |
| Rated Voltage | DC24V,Working range:DC 9V-28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | <5mS |
| Certification | CE,RoHS |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| UV Resistance | Not for use in high UV environments |
| Environmental Humidity | 10-90%RH(Non-condensing) |
| Vibration Endurance | 10-25 Hz(XY,Z direction,2G/30 min) |
| Protection Level | Water-proof |
| Enclosure Material | Engineering plastic |
| Cutout Size | 192mm×138mm |
| Dimensions | 199mm×145mm×50mm |
| Weight | About 500g |
