| FEATURES |

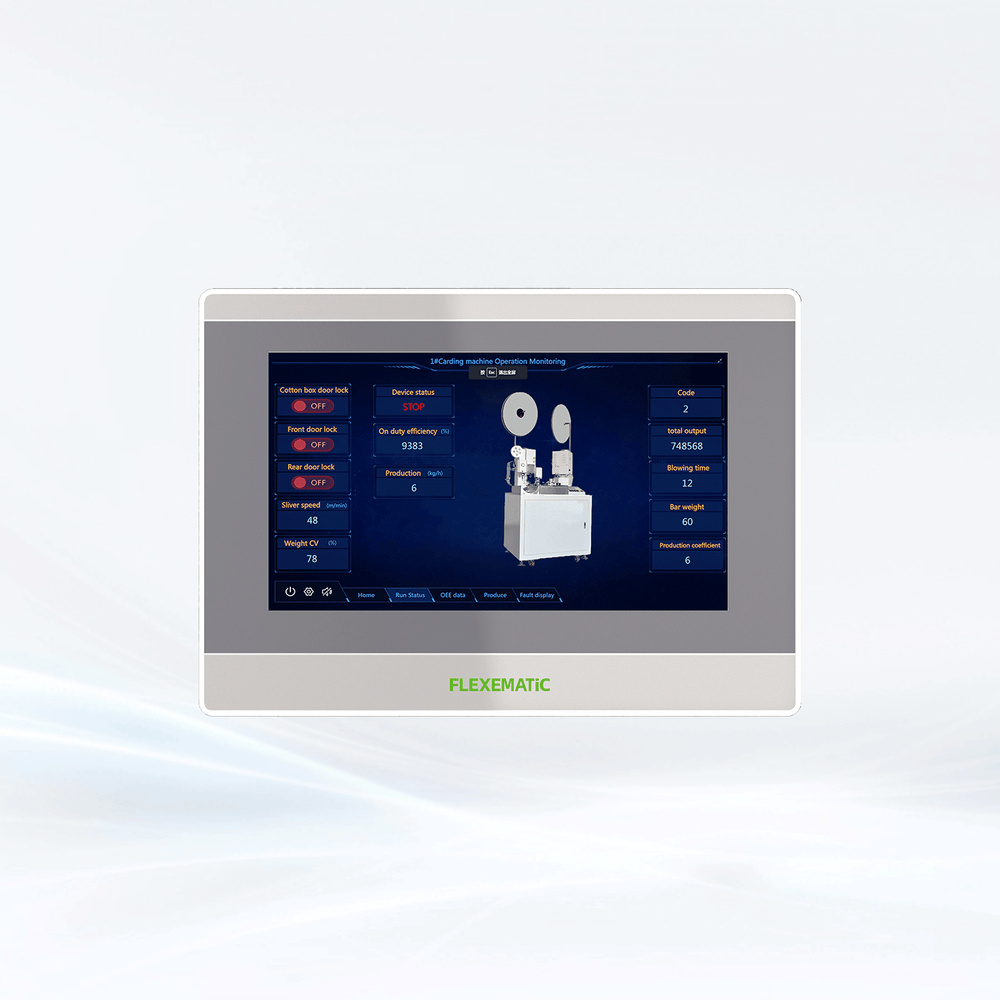

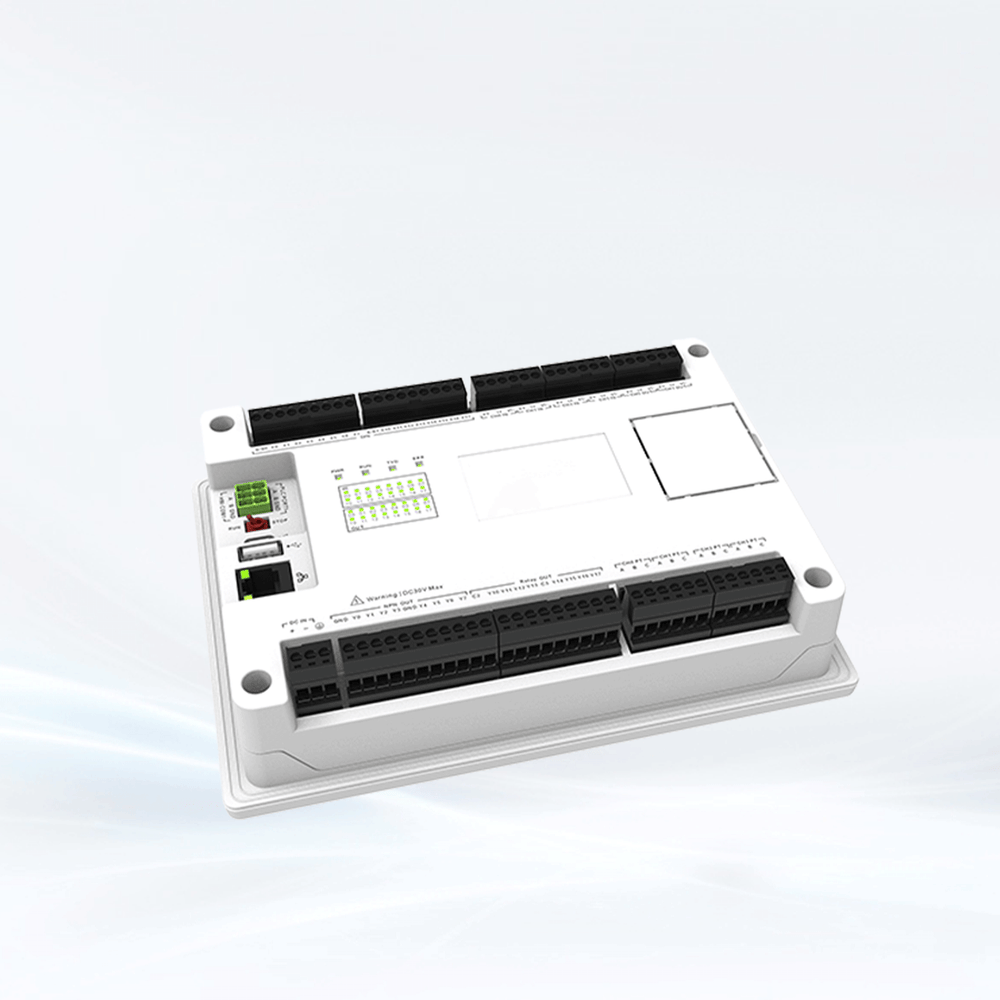

FS307R-32MR |
| Human-Machine Interface Display |
| Display |
7" 16:9 TFT LCD |
| Resolution |
1024×600 |
| Colors |
24-bit |
| Brightness |
350 cd/m² |
| Backlight |
LED |
| LCD Lifetime |
50000 hours |
| Touch Panel |
4-wire industrial resistive touch panel |
| CPU |
Cortex-A7(1GHz,dual-core) |
| Storage |
128MB DDR3+4GB EMMC |
| RTC |
Built-in |
| Ethernet |
1*RJ45,10M/100M self-adaptive |
| USB Port |
1*USB Type-C 2.0 port;1*USB Type-A 2.0 port |
| Serial Port |
1*RS485(COM1),signal isolation |
| Program Download Method |
USB Slave Port / USB drive / Ethernet port |
| LCD Viewing Angles(T/B/L/R) |
85'/85'/85'/85] |
| Configuration Software |
FlexeMatic Studio |
Corresponding HMI
Model in FStudio Sotware |
FE7070WE |
| Programmable Logic Controller |
| CPU |
ARM 32-bit CortexTM-M3 CPU |
| Digital Input |
16-channel Input |
| Digital Output |
8-channel Transistor(NPN)Output + 8-channel Relay Output |
| Analog Input |
4 channels,4~20mA/0~10V,16-bit resolution,signal isolated |
| Analog Output |
2 channels,4~20mA/0~10V,12-bit resolufion,signal
isolated |
| PT100 |
4 channels,three-wire PT100,signal isolated |
| User Program Memory |
150K Bytes |
| Non-volatile Memory or Retentive Memory |
4K Bytes |
| Timer |
In total: 256
100ms Timer:206(timing range from 0.1 to3276.7 seconds)
10ms Timer:46(timing range from 0.01 to327.67 seconds)
1ms Timer: 4 (timing range from 0.001 to 32.767 seconds) |
| Counter |
235 |
| High-Speed Interrupt |
Rising and falling edge interrupts on X0~X4,3 timer interrupts |
| Program Execufion Mode |
Cyclic Scanning |
| Processing Speed |
General Instructions:0.1μs
Functional Instructions (ON state 5μs;OFF state 0.5μs) |
| Programming Language |
Ladder Diagram &Standard C Language |
| Serial Communication Port |
1*RS485(PORT1),supports Mitsubishi FX2N and
Modbus RTU protocol,signal isolated |
| Programming Port |
USB |
| Programming Software |
FlexLogic |
| Corresponding PLC Model in FlexLogic Software |
FL3-32MR-DC |
| HMI+PLC All-in-One Machine |
| Rated Power |
<10W |
| Rated Voltage |
DC24V,operatonal range:DC 18V~30V |
| Power Protection |
With an isolated power supply module,lightning surge
protection |
Power Interruption
Tolerance |
<5ms |
| CE & RoHS |
EN61000-6-2:2019 and EN61000-6-4:2019 standards certified;
RoHS certified;lightning surge±1kV；
group pulse±2kV;electrostatic contact 4kV,air discharge 8kV |
| Operating Temperature |
0~50℃ |
| Storage Temperature |
-20~60℃ |
| UV Resistance |
Operating in hgh UV environment is prohibited (e.g.,in direct sunlight) |
| Environmental Humidity |
10%~90%RH (non-condensing) |
| Vibration Endurance |
10~25Hz(X/Y/Z direction,2G/30 minutes) |
| Cooling Method |
Natural air cooling |
| Protection Level |
Front:IP65(with flush panel cabinet installation),Rear：IP20 |
| Conformal Coating |
Mainboard conformal coating,and glue dispensing |
| Enclosure Material |
Engineering Plastics |
| Cutout Dimensions |
190mm×136mm |
| Dimensions |
204mm×145mmX48mm |
| Weight |
About 750g |
