FS110C

Regular price: $435.99
Sale price: $435.99
Regular price
Unit price: per

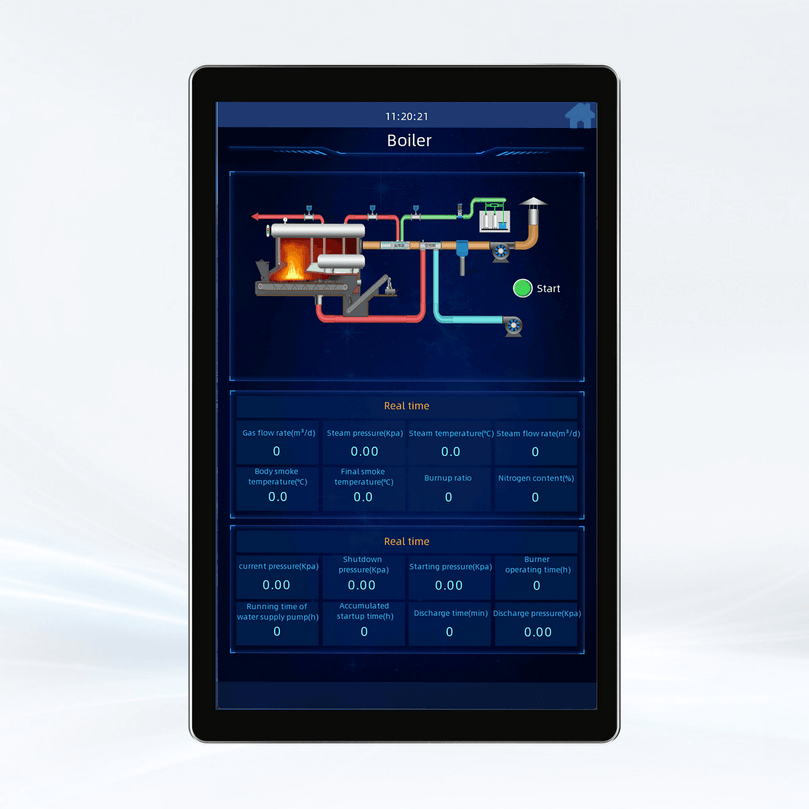

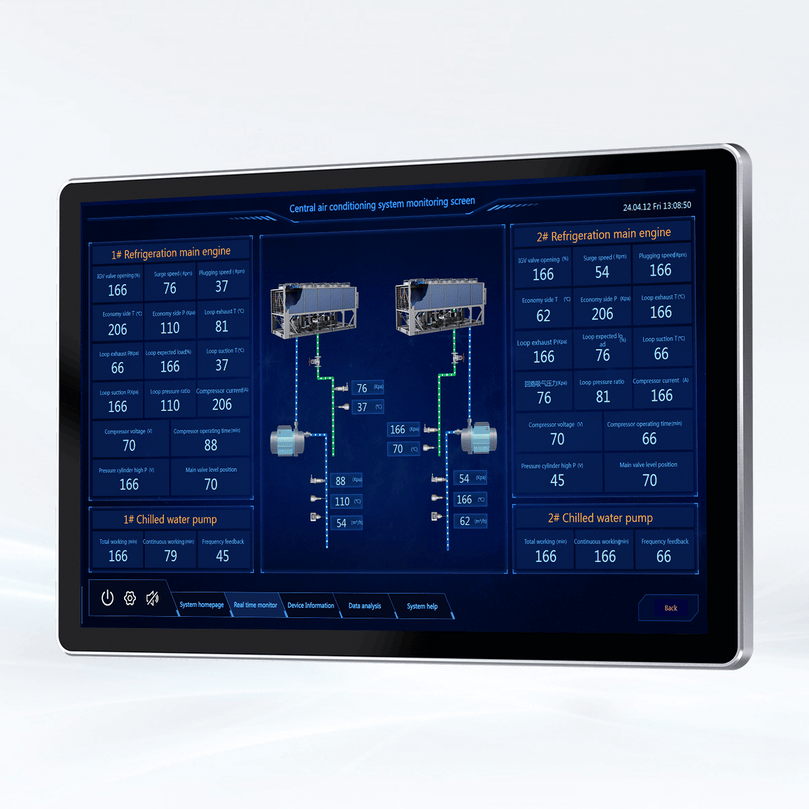

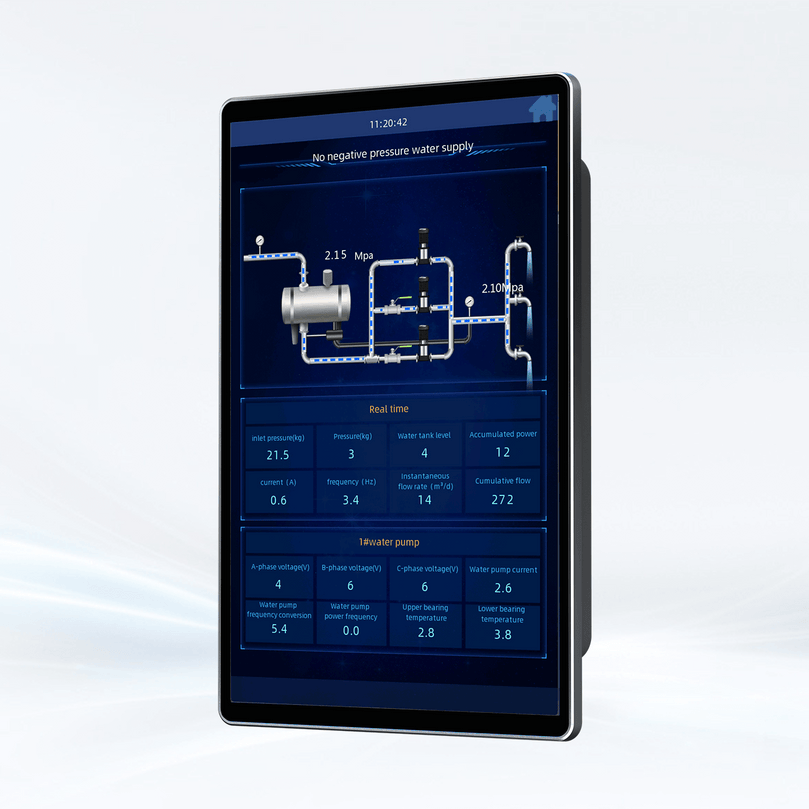

FS110C is a capacitive HMI, featuring a 10.1" multi-touch capacitive touchscreen. It supports high-definition, high-brightness, full-view display, 800x1280 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 x Ethernet port.

Download related documents and software

Availability: In stock Out of stock

Product variants

Quantity

Description

EATURES	FS110C
Display	10.1" 16:10 TFT LCD
LCD Viewing Angles (T/B/L/R)	85'/85'/85'/85'
Resolution	800×1280
Colors	24-bit
Brightness	400 cd/m²
Touch Panel	Glass+Glass projective multi-touch capacitive touchscreen
CPU	1GHz, Dual core Cortex -A7
Storage	4GB eMMC+256MB DDR3
Ethernet Port	1*RJ45, based on 10/100Mbps
USB Port	1USB Type-C 2.0 port, 1USB Type-A 2.0 port
Download Method	USB slave/Flash drive/Ethernet
Serial Port	COM1: RS232/RS485/RS422 COM2/COM4: RS485 COM3: RS232
SD Card	NA
Bluetooth	NA
loT Network Access	Ethernet
Network Frequency Band	NA
VPN Passthrough	Available
Data Monitoring	300 points
Alarm Notification	100 points
Historical Data	100 points
Edge Computing	30 points
Network Protocol	Supports over 100 industrial devices protocols
Management and Maintenance	Support import,export,and remote update of configuration files
Rated Power	<10W
Rated Voltage	DC 24V,Working range:DC9V-28V
Power Protection	Lightning surge protection
Power Interruption Tolerance	<5mS
Certification	CE, RoHS
Operating Temperature	-10-60℃
StorageTemperature	-20-70℃
UV Resistance	Not for use in high UV environments
Environmental Humidity	10-90%RH (Non-condensing)
Vibration Endurance	10-25 Hz (X,Y,Z direction,2G/30 min)
Protection Level	Front:IP65(NEMA panel), Rear:IP20

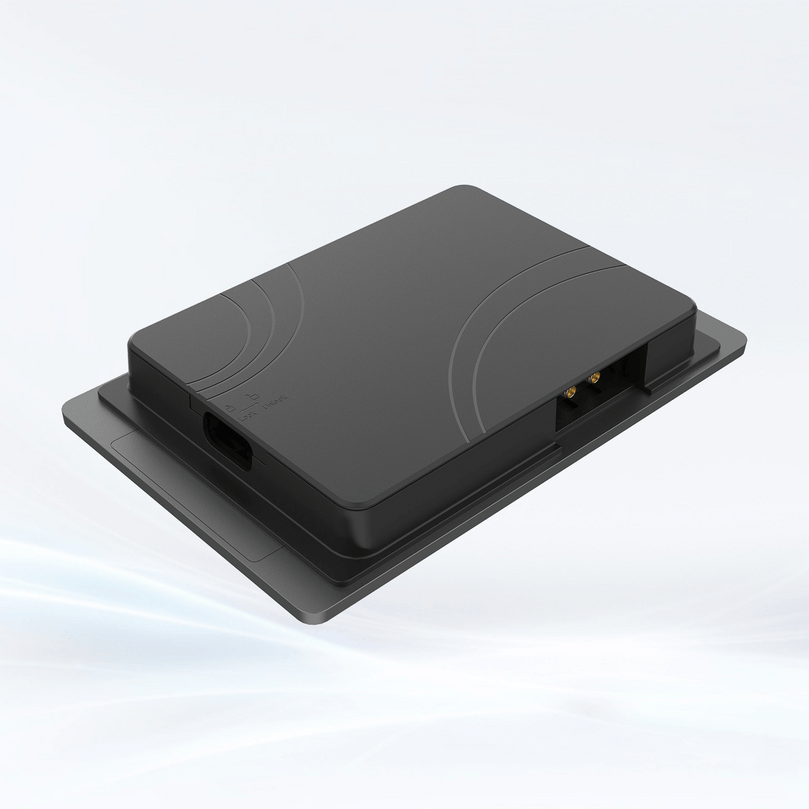

Enclosure Material	Zinc alloy + Engineering plastic
Cutout Size	138mm×192mm
Dimensions	158mm×249mm×30mm
Weight	About 900g
