FS107C

Regular price
$326.99
Sale price
$326.99
Regular price

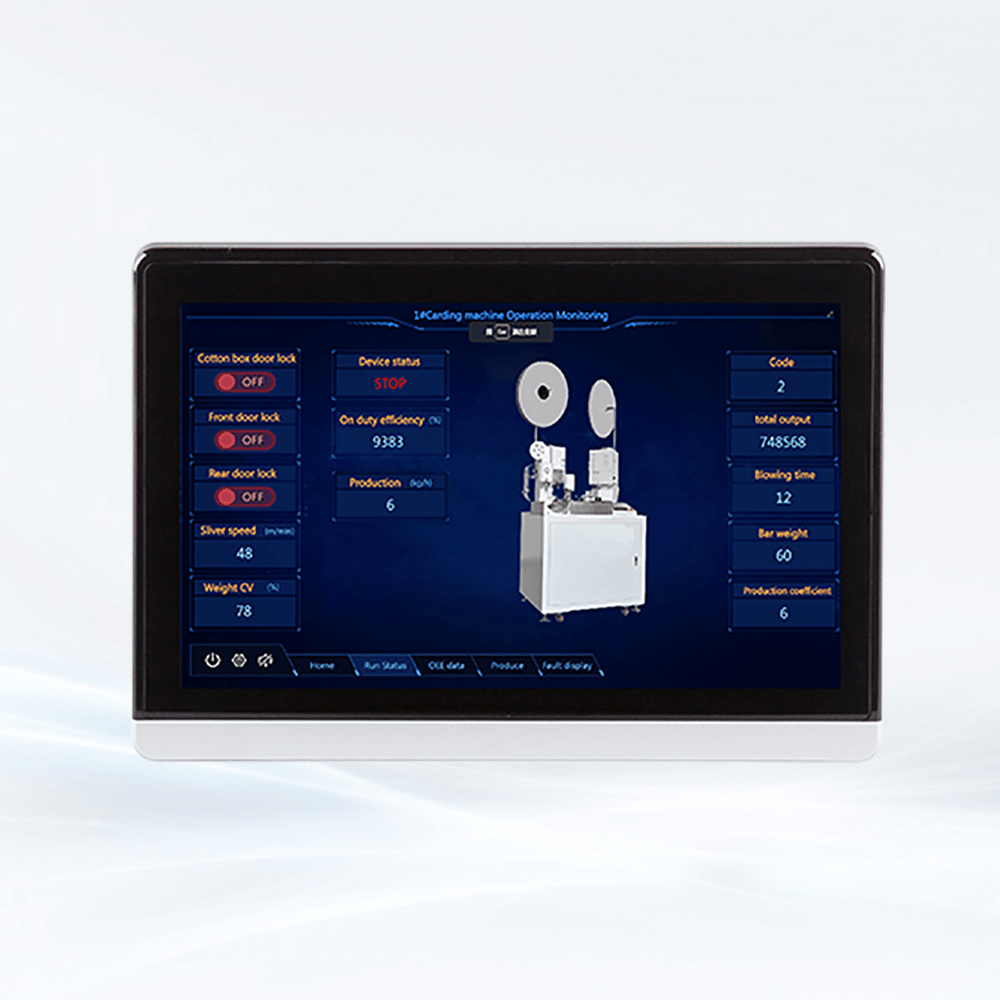

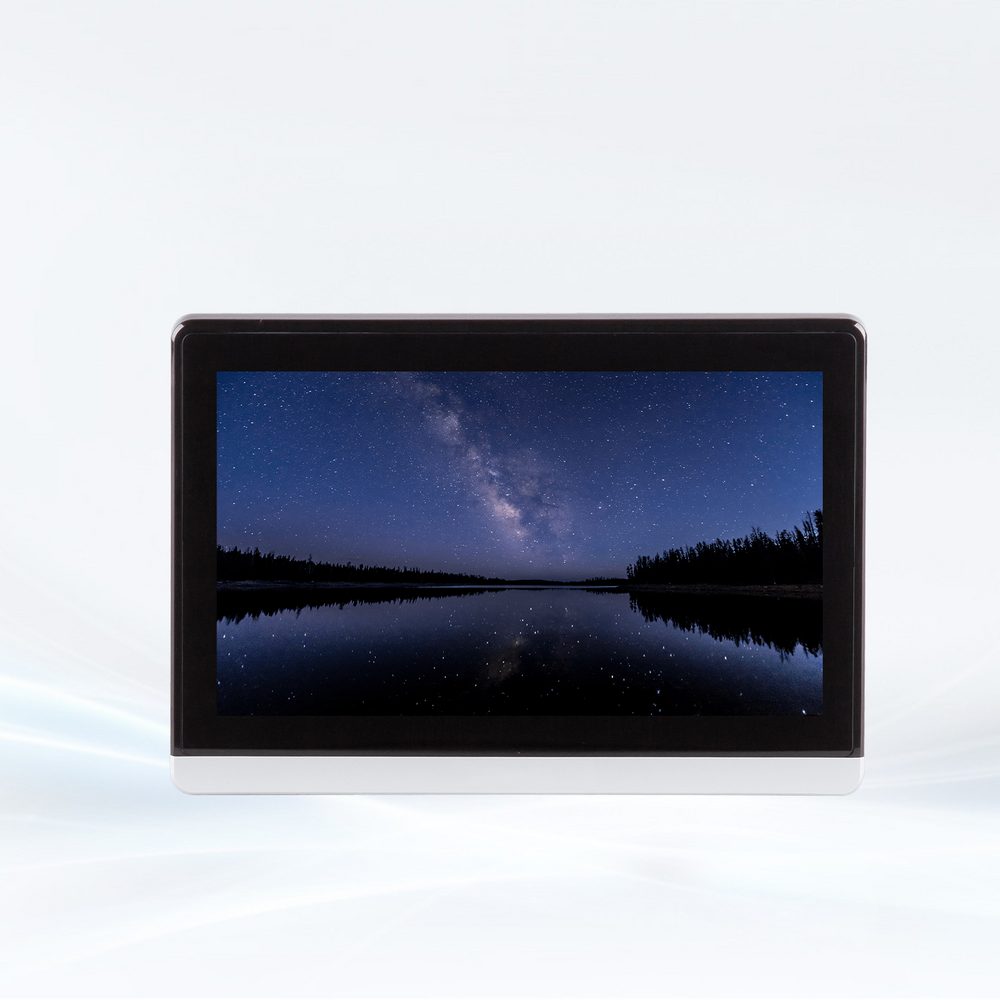

FLEXEMATiC FS107C capacitive touchscreen, featuring a 7" multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 1024x600 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, multi-touch gestures supported, provides a sleek and smoother touch-and-control solution.
Download related documents and software
Availability: In stock Out of stock
FS107CFS107CFS107C
FEATURES FS107C
Display 7" 16:9 TFT LCD
LCD  Viewing Angles(T/B/L/R) 85'/85'/85'/85'
Resolution 1024×600
Colors 24-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel Glass+Glass projective multi-touch capacitive touchscreen
CPU 1GHz, Dual core Cortex-A7
Storage 4GB eMMC + 256MB DDR3
RTC Built-in
SD Card NA
Ethernet port 1*RJ45, based on10/100Mbps
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB slave / Flash drive/Ethernet
Serial port COM1: RS232/RS485/RS422
COM2/COM4: RS485
COM3: RS232
Rated power 6W
Input Voltage DC24V, working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE, RoHS
Operating Temperature -10-60℃
StorageTemperature -20-70℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH (Non condensing)
Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65, Rear:IP20
Enclosure Material Zinc alloy + Engineering plastic
Cutout Size 178mm×125mm
Dimensions 185.1mm×130.9mm×32.6mm
Weight About 600g
