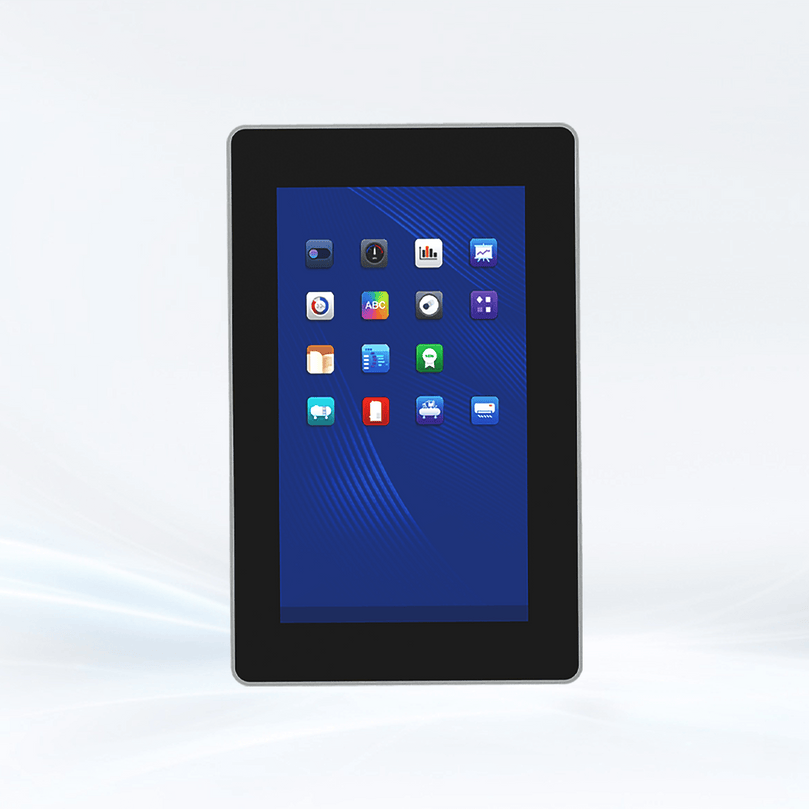

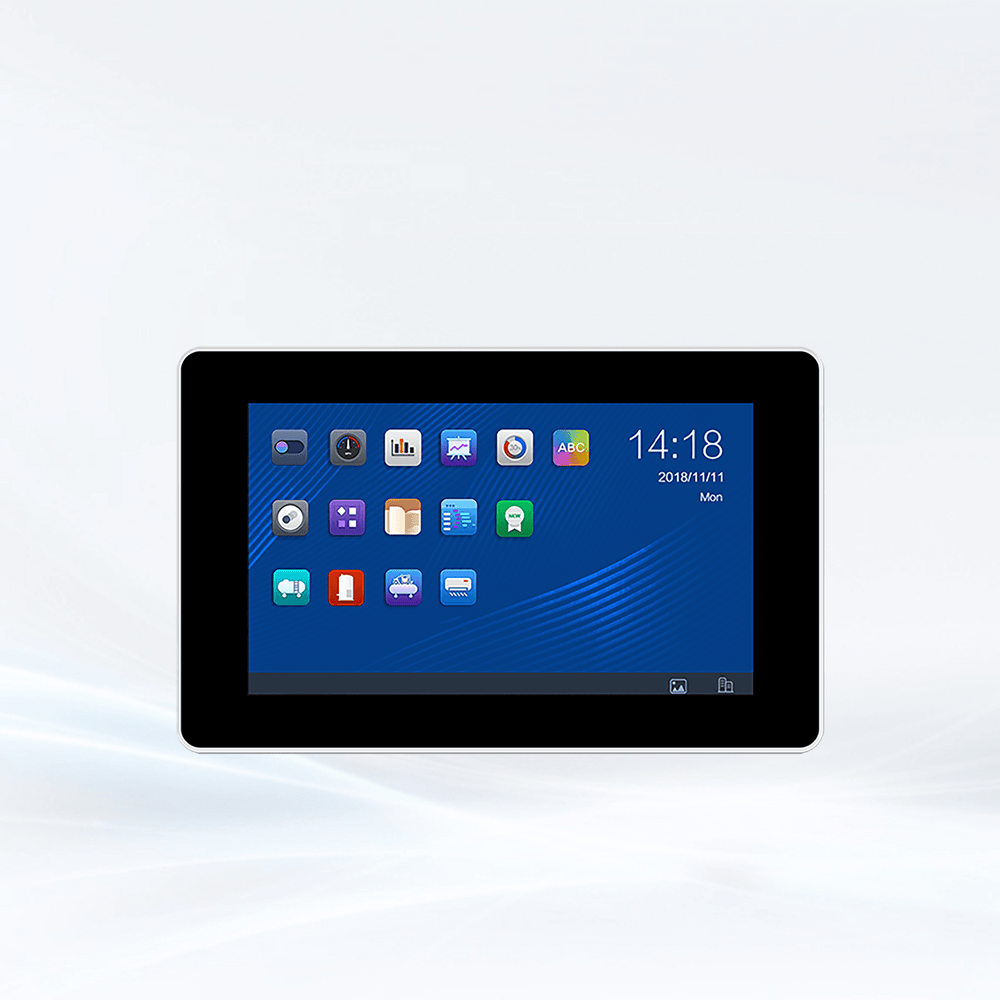

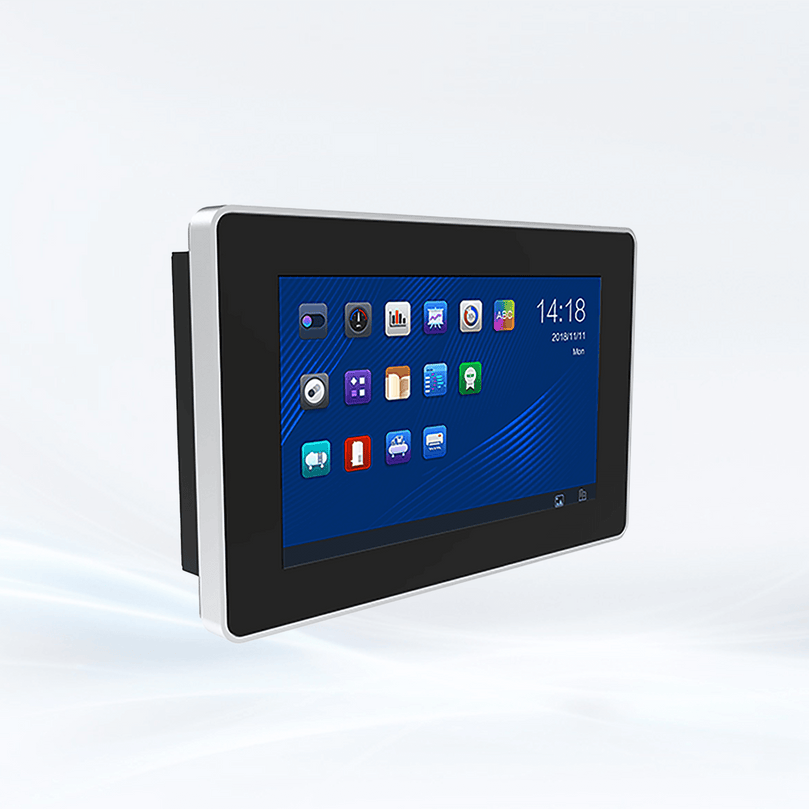

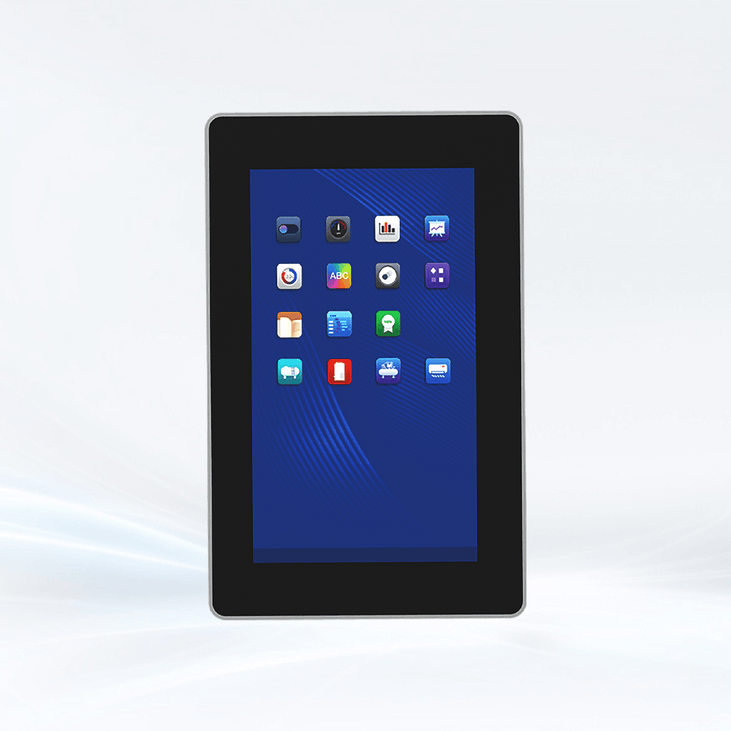

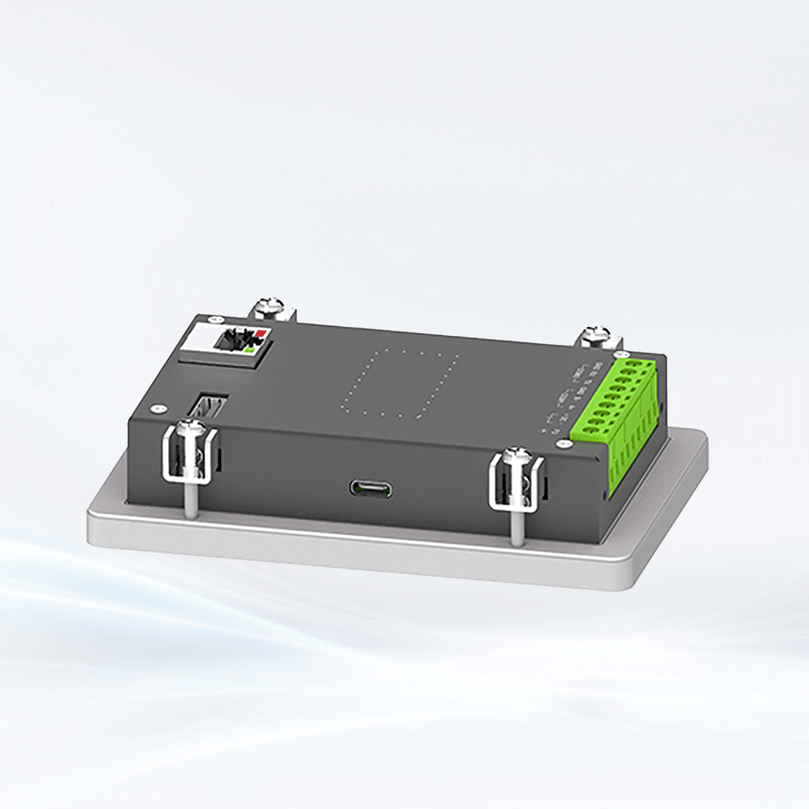

FS104C

The FlexSee 1 series capacitive HMI is suitable for a range of small and medium-sized device applications.

Availability: In stock Out of stock

Product variants

Quantity

FEATURES	FS104C
Display	4.3" 16:9 TFT LCD
LCD Viewing Angles(T/B/L/R)	70'/70'/70'/70'
Resolution	800×480
Colors	24-bit
Brightness	320 cd/m²
Backlight	LED
LCD Lifetime	50000 hours
Touch Panel	Glass+Glass projective multi-touch capacitive touchscreen
CPU	600MHz ARM Cortex-A8
Storage	128MB DDR3+128MB Flash
RTC	Built-in
SD Card	/
Bluetooth	/
Ethernet port	1*RJ45, based on10/100Mbps
USB Port	1USB Type-C 2.0 port, 1USB Type-A 2.0 port
Download Method	USB slave / Flash drive/Ethernet
Serial port	COM1: RS485,COM3: RS232
Rated power	5W
Input Voltage	DC24V, working range DC9V-28V
Power supply protection	With lightning surge protection
Power Interruption Tolerance	<5mS
Certification	CE, RoHS
Operating Temperature	0-50℃
StorageTemperature	-20-60℃
UV Resistance	Operating in high UV environment is prohibited
Environmental Humidity	10-90%RH (Non condensing)
Vibration Endurance	10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode	Natural Cooling
Protection Level	Front:IP65, Rear:IP20
Enclosure Material	Metal shell
Cutout Size	107mm×64mm
Dimensions	124mm×80mm×31.5mm
Weight	About 500g
