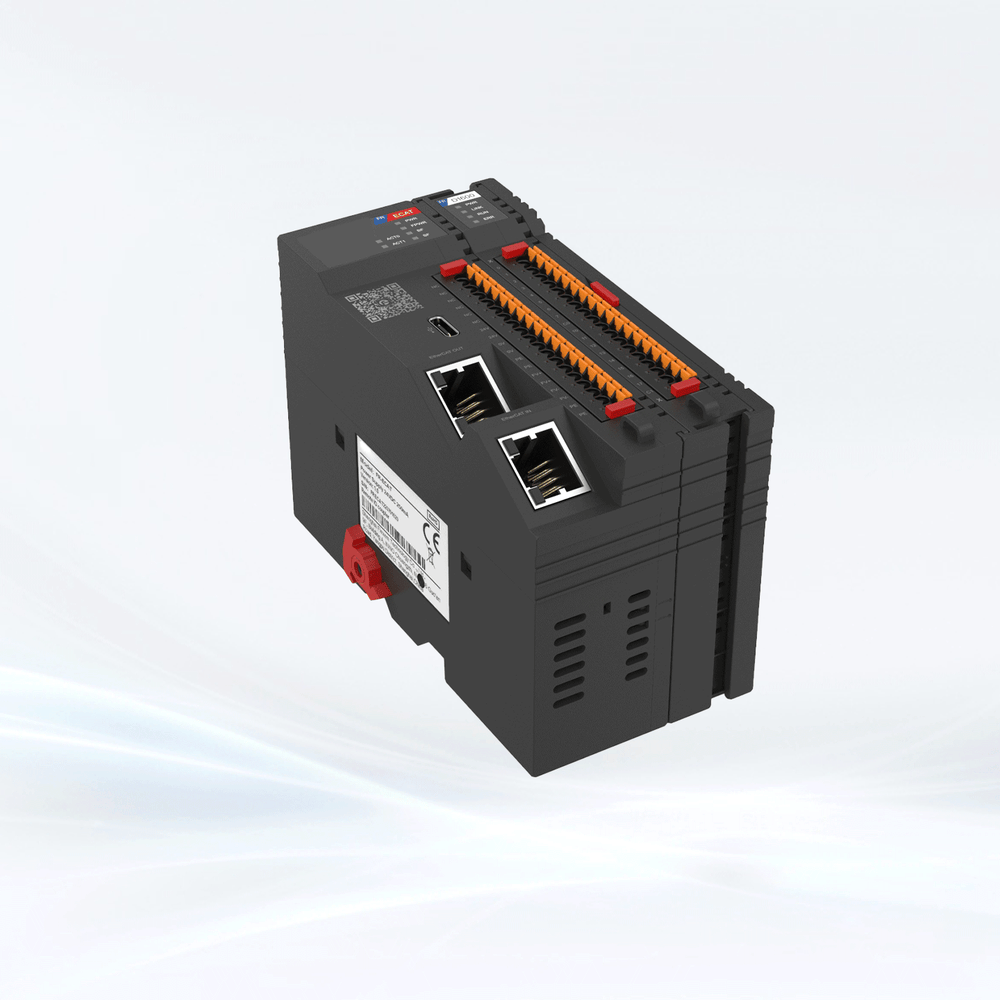

FR-ECAT

Regular price: $255.99
Sale price: $255.99
Regular price
Unit price: per

FL8 supports high-speed EtherCAT motion control bus, realizing precise motion control for complex machines,built-in CANopen field bus, conveniently linking with on-site slave devices; built-in Ethernet and serial portssupport OPC UA and Modbus protocols, seamlessly linking with the upper control system and realizing theoptimization of the overall system.

Availability: In stock Out of stock

Product variants

Quantity

Description

FEATURES	FR-ECAT
Power	9~36VDC(nomal 24VDC)Protection:overcurrent protection,anti-reverse connection protection
Power Consumption	110mA@24Vdc
Isolation	Yes
Field Power	22~28V(Normal 24VDC)
Field Power Current	Max DC 8A
Max Extension Module	31
Wire	Max.1.5mm²(AWG 16)
Installation	35mm DIN ruler
Dimension (HWD)	111mm×36mm×76mm
Weight	200g
operation temperature	-20~70℃
Ambient humidity	5%-95%non-condensing
Protection grade	IP20
Protocol	EtherCAT
Process Data Area	nput:Max.1024 bytes,Output:Max.1024 bytes□
Connector	2*RJ45
Speed	10/100Mbps
Max Length	100m
