FP508R
- Regular price
- $675.00
- Sale price
- $675.00
- Regular price
-
- Unit price
- per

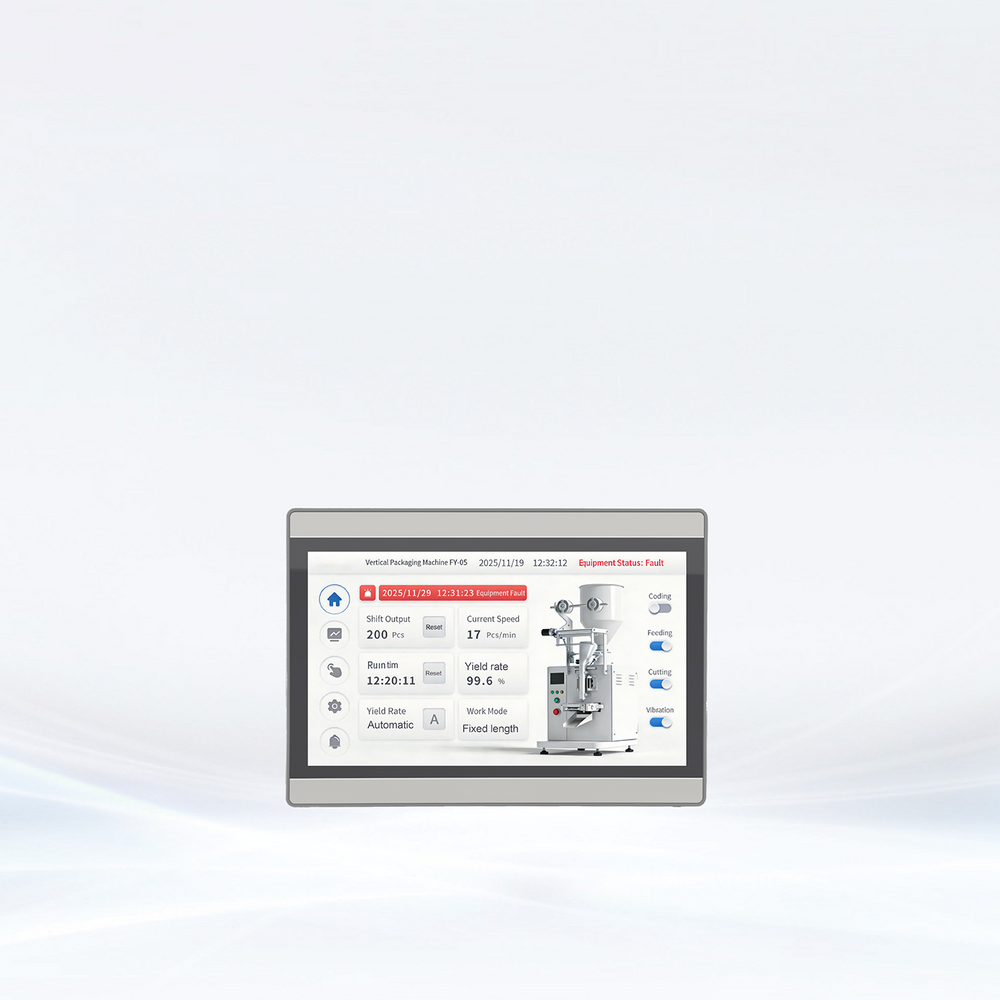

The FP5 series HMI is a next-generation HMI, featuring a sleek and compact design with powerful performance. It supports object-oriented programming, remote access, Python scripting, and other functions. Equipped with dual Ethernet ports, it meets the requirements for on-site data interconnection.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FP508 |
| Display | 8" 16:9 TFT LCD |
| LCD Viewing Angles(T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 1024×600 |
| Colors | 24-bit |
| Brightness | 300 cd/m² |
| Backlight | LED |
| LCD Lifetime | 30000 hours |
| Touch Panel | 4-wire industrial resistive touch panel |
| CPU | 4*Cortex-A53，2.0GHz |
| Storage | 2GB DDR4+4GB eMMC |
| RTC | Built-in |
| Ethernet port | 2×10/100Base-TX |
| USB Port | 1×USB Type-A，1×USB Type-C port |
| Serial port | COM1: RS232/RS485/RS422 COM2: RS485 COM3: RS232 |
| Rated power | ＜15W |
| Input Voltage | DC24V, working range DC18V-28V |
| Power supply protection | With lightning surge protection |
| Power Interruption Tolerance | <5mS |
| Certification | CE, RoHS |
| Operating Temperature | 0-50℃ |
| StorageTemperature | -20-60℃ |
| UV Resistance | Operating in high UV environment is prohibited |
| Environmental Humidity | 10-90%RH (Non condensing) |
| Vibration Endurance | 10-25Hz (X,Y,Z direction 2G/30 minutes) |
| Cooling Mode | Natural Cooling |
| Installation Method | Flush-mounted installation |
| Protection Level | Front:IP65, Rear:IP20 |
| Enclosure Material | Engineering plastic |
| Cutout Size | 190mm×136mm |
| Dimensions | 204mm×145mm×36mm |
| Weight | About 472g |
