FMPC270-J-8G128G
- Regular price
- $2,730.99
- Sale price
- $2,730.99
- Regular price
-
- Unit price
- per

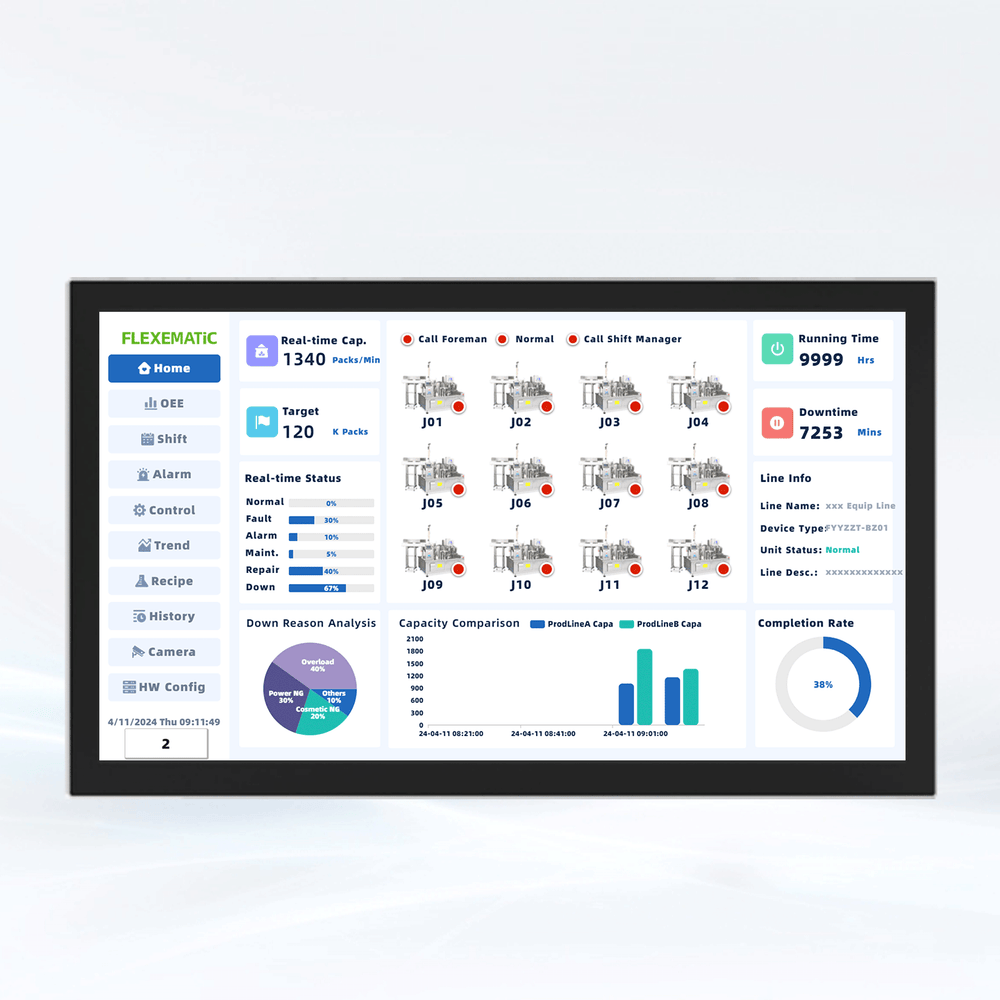

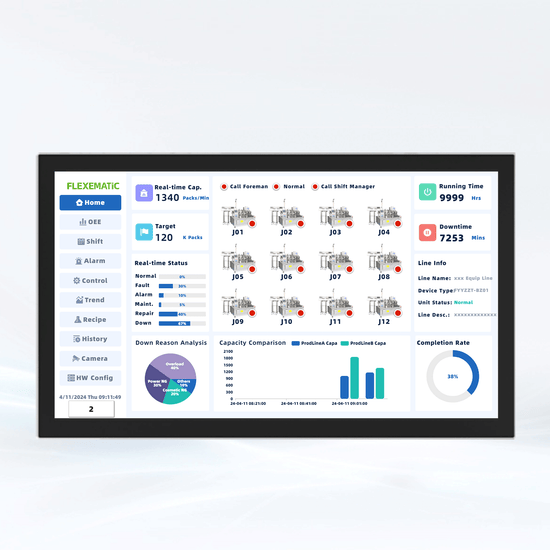

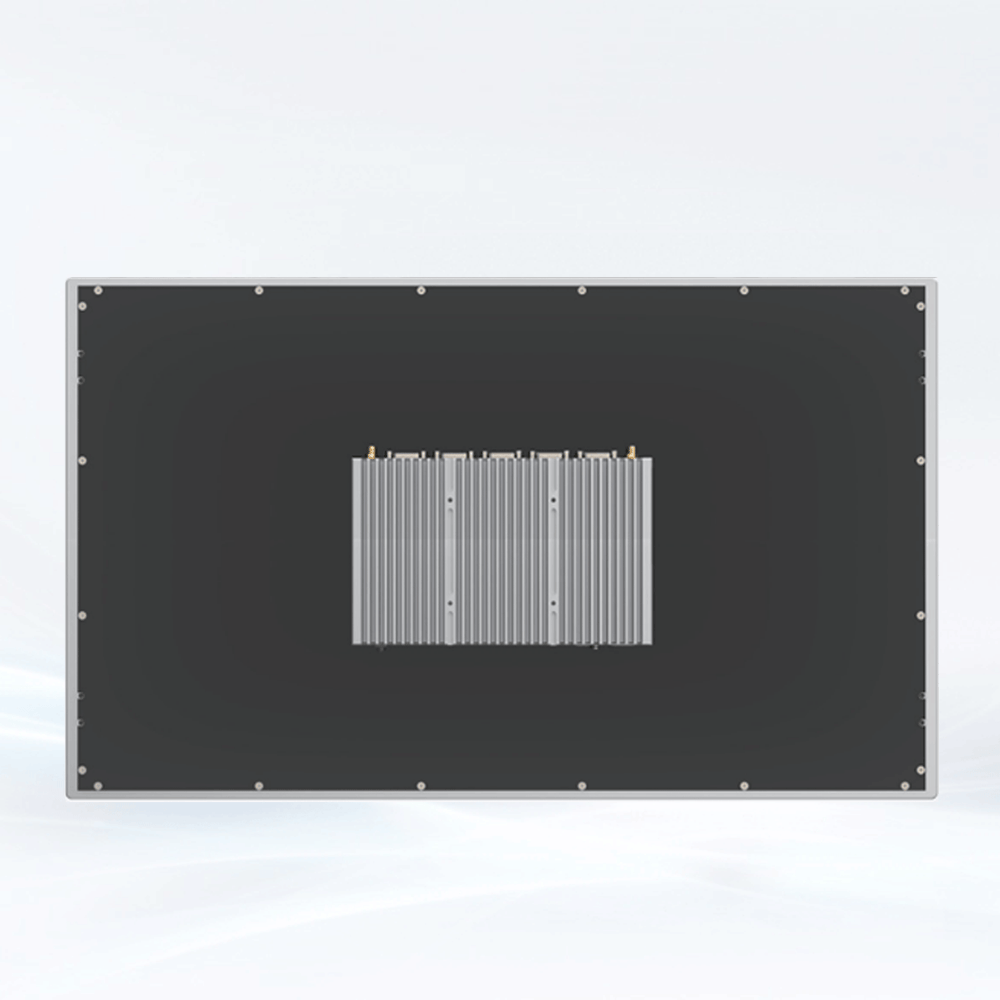

ULTRA-THIN ALL-ALUMINUM BODY FANLESS TABLET PC.
Download related documents and software
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMPC270-J-8G128G | |
| System Parameters |
CPU | Intel® CeleronTM J6412 |
| Frequency | Quad Core Quad Thread/2.0GHz | |
| Random Access Memory(Ram) |
Support DDR4-3200,1*SO-DIMM,Maximum support 32GB | |
| Stockpile | 1*SATA3.07P Connector/M.2 Connector,1*mSATA(3.0) | |
| I/O Interface | Reticulation | 2*Intel® 2.5Gbps PCle Ethernet Controller,RJ45 |
| Sound Frequency | Realtek® HDA Codec,with MIC/Line-out and Amplifier | |
| Usb | 4*USB3.0, 2*USB2.0 | |
| Serial Port (Computing) |
4*RS-232,2*RS-232/RS-485(Terminals) | |
| Expansion Slot | 1*Mini PCle(4G/dual network port module,etc.),1*M.2(5G occupies one USB3.0 port),1*M2(WIFI+BT) | |
| Other Interfaces | 1*HDMI,1*DC-IN,1*Remote SW,1*SIM slot,1*DisplayPort | |
| Physical Characteristics |
Dimension(W*H*D) | 648mm×389mm×72mm |
| Opening Size(W*H) | 629mm×377mm (1.50/1.52mm larger than actual opening size) | |
| Net Weight | 9.26kg | |
| Operating System |
Operating System | Supports Windows10, Linux |
| Power Supply | Input Voltage | 9-36VDC |
| Maximum Power Consumption |
45W | |
| LCD Screen | Screen Type | 27.0" Full HD TFT |
| Resolution | 1920×1080 | |
| Maximum Color | 16.7MB | |
| Be In A Poor Light | LED | |
| Backlight Mtbf(Hours) |
3000hrs | |
| Pixel Pitch | 0.3114×0.3114 | |
| Luminance | 300cd/m2 | |
| Contrast | 1000:1 | |
| Perspectives | (L)89/(R)89/(T)89/(B)89 | |
| Touch Screen | Touch Screen Type | 10-contact capacitive touch screen, high-temperature five-wire resistive touch screen,no-touch |
| Transmittance | >85% | |
| Controllers | USB port | |
| Response Time (Stylus) |
<5ms | |
| Surface Hardness | Mohs hardness 6H | |
| Touch Life | 250g/35,000,000 times | |
| Stroke Life | 250g/5,000,000 times | |
| Environmental parameters |
Operating Temperature |
0~50°C(32~122°F)(Using normal temperature rated SSDs) |
| Customized Version | -20~60°C(-4~140°F)(Use of wide temperature rated SSDs) | |
| Storage Temperature | -20~60°C(-4~140°F) | |
| Relative Humidity | 10~95%RH@40C,non-condensing | |
| Vibration During Operation |
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis | |
| Emc | SSD applied:10G,half-sine wave | |
| Shock At Work | CE/FCC Class B | |
| Waterproofing | Front panel with IP65 protection rating | |
