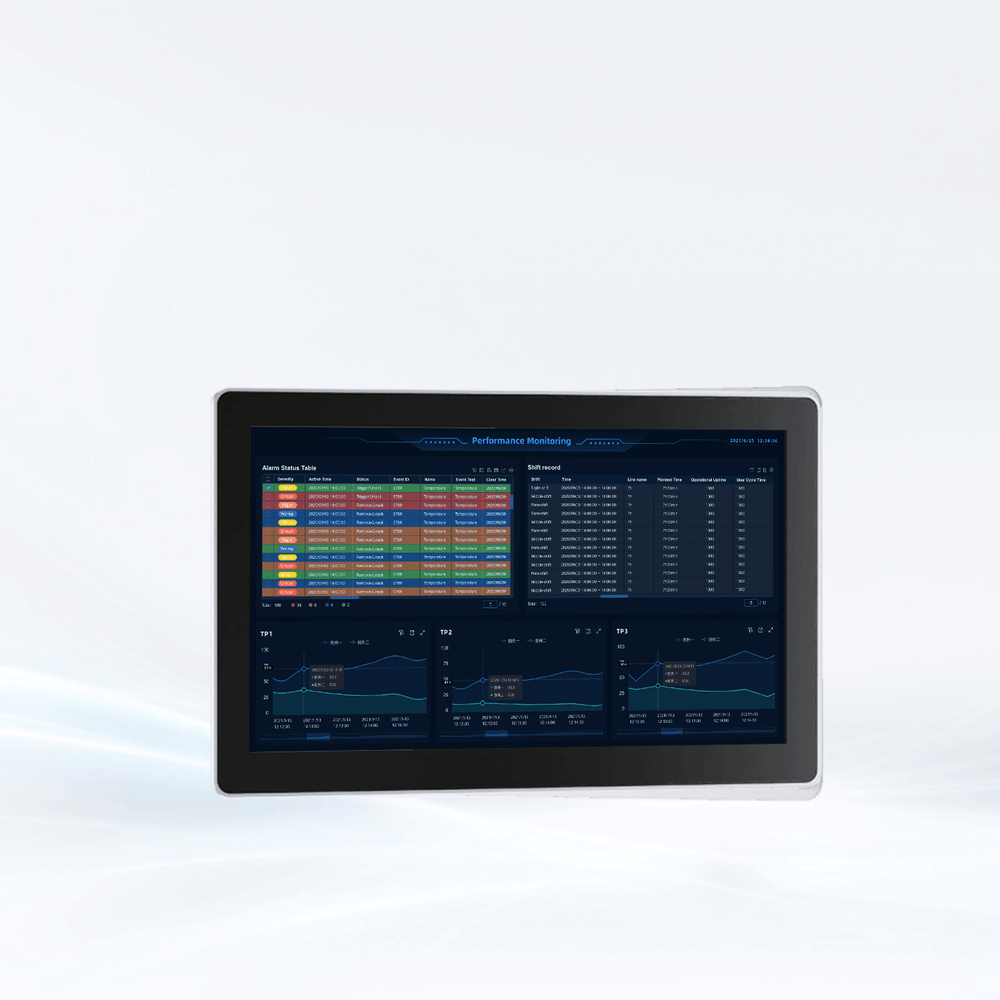

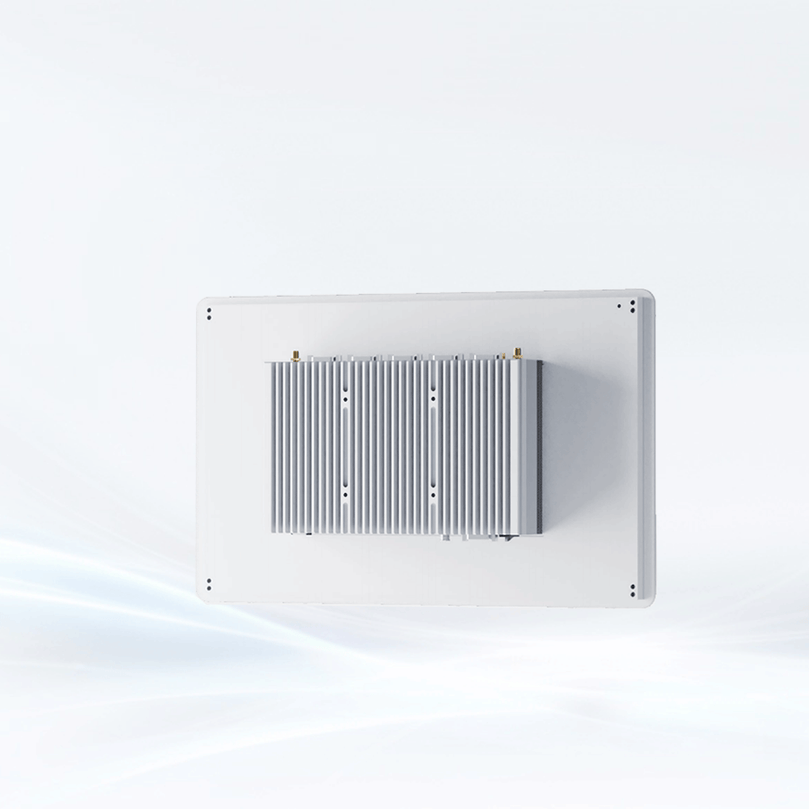

FEATURES | FMPC156-i5-8G128G | |
System Parameters |
CPU | Intel® Core i5-1155G7/1135G7 |
Frequency | Quad-core eight threads, 2.5-4.5GHz | |
Random Access Memory(Ram) |
Support DDR4 high-speed memory up to 32GB | |
Stockpile | 1*3.0” SATA+1*M.2 2280 M-key Slot | |
I/O Interface | Reticulation | 2*Intel 1000Mbps RJ45 Ethernet Interface |
Sound Frequency | Realtek® HDA Codec,with MIC/Line-out and Amplifier | |
Usb | 4*USB 3.0 | |
Serial Port (Computing) |
4*RS-232,2*RS-232/RS-485(Terminals) | |
Expansion Slot | 1 M.2 2242/50 B-Key card slot on board, support 4G; WIFI wireless card | |
Other Interfaces | 1*HDMI/DC-IN | |
Physical Characteristics |
Dimension(W*H*D) | 392mm×246mm×62mm |
Opening Size(W*H) | 378mm×234mm (1.80/1.90mm larger than actual opening size) | |
Net Weight | 3.18kg | |
Operating System |
Operating System | Supports Windows10, Linux |
Power Supply | Input Voltage | 9-36VDC |
Maximum Power Consumption |
32W | |
LCD Screen | Screen Type | 15.6" Full HD TFT |
Resolution | 1920×1080 | |
Maximum Color | 16.7MB | |
Be In A Poor Light | LED | |
Backlight Mtbf(Hours) |
1500hrs | |
Pixel Pitch | 0.197×0.197 | |
Luminance | 250cd/m2 | |
Contrast | 400:1 | |
Perspectives | (L)89/(R)89/(T)89/(B)89 | |
Touch Screen | Touch Screen Type | 10-contact capacitive touch screen, high-temperature five-wire resistive touch screen,no-touch |
Transmittance | >85% | |
Controllers | USB port | |
Response Time (Stylus) |
<5ms | |
Surface Hardness | Mohs hardness 6H | |
Touch Life | 250g/35,000,000 times | |
Stroke Life | 250g/5,000,000 times | |
Environmental parameters |
Operating Temperature |
0~50°C(32~122°F)(Using normal temperature rated SSDs) |
Customized Version | -20~60°C(-4~140°F)(Use of wide temperature rated SSDs) | |
Storage Temperature | -20~60°C(-4~140°F) | |
Relative Humidity | 10~95%RH@40C,non-condensing | |
Vibration During Operation |
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis | |
Emc | SSD applied:10G,half-sine wave | |
Shock At Work | CE/FCC Class B | |
Waterproofing | Front panel with IP65 protection rating |
