FMPC101-i5-8G128G

Regular price
$2,620.99
Sale price
$2,620.99
Regular price

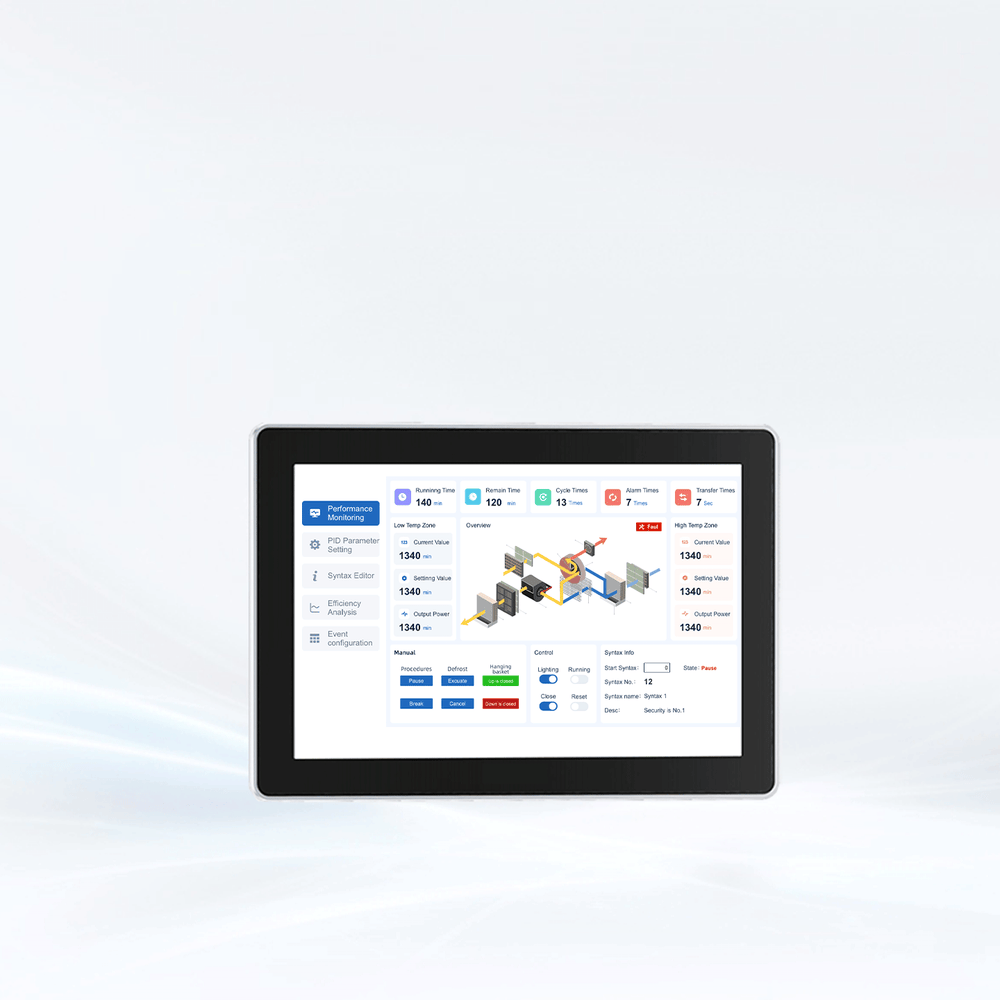

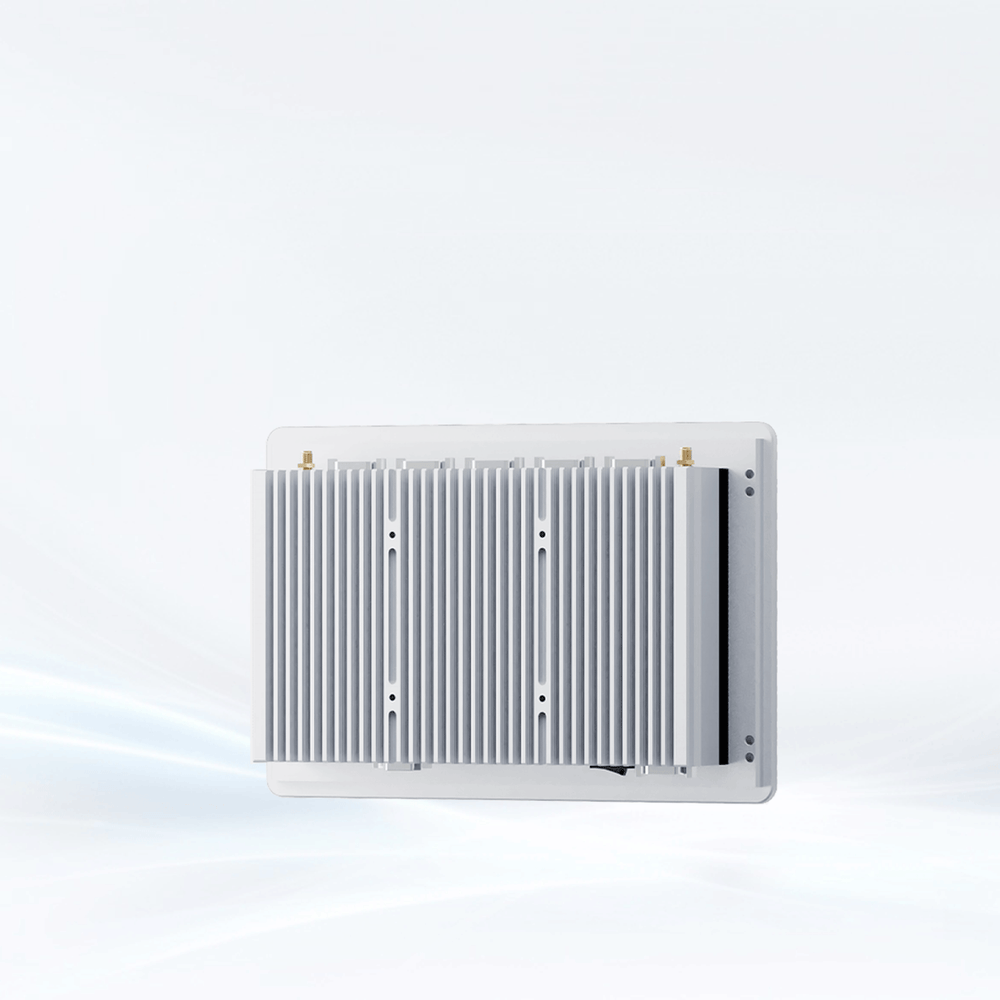

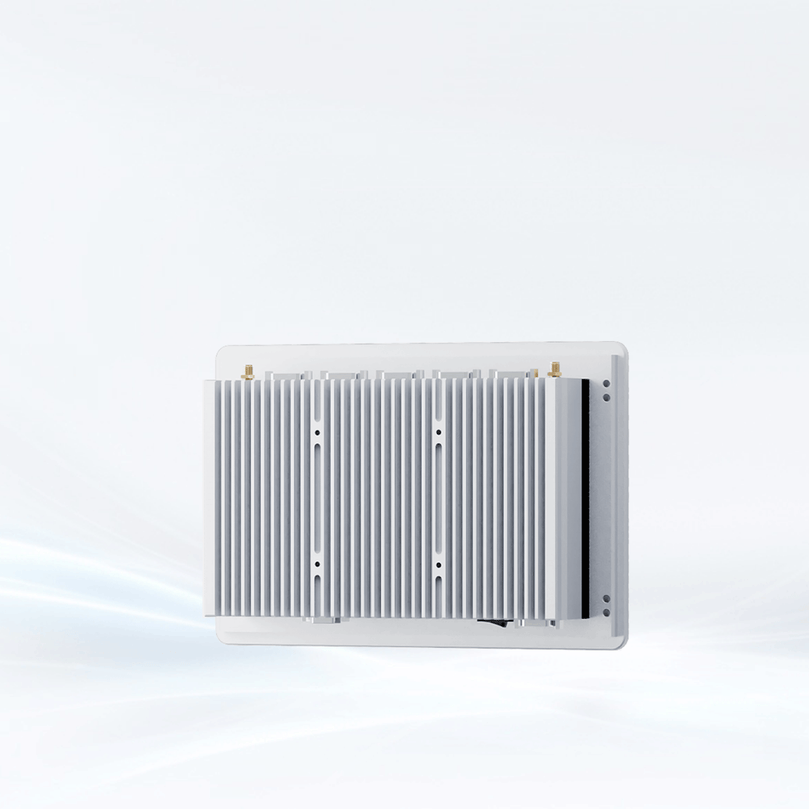

ULTRA-THIN ALL-ALUMINUM BODY FANLESS TABLET PC.
Download related documents and software
Availability: In stock Out of stock
FMPC101-i5-8G128GFMPC101-i5-8G128G
FEATURES FMPC101-i5-8G128G
System
Parameters
CPU Intel® Core i5-1155G7/1135G7
Frequency Quad-core eight threads, 2.5-4.5GHz
Random Access
Memory(Ram)
Support DDR4 high-speed memory up to 32GB
Stockpile 1*3.0” SATA+1*M.2 2280 M-key Slot
I/O Interface Reticulation 2*Intel 1000Mbps RJ45 Ethernet Interface
Sound Frequency Realtek® HDA Codec,with MIC/Line-out and Amplifier
Usb 4*USB 3.0
Serial Port
(Computing)
4*RS-232,2*RS-232/RS-485(Terminals)
Expansion Slot 1 M.2 2242/50 B-Key card slot on board, support 4G; WIFI wireless card
Other Interfaces 1*HDMI/DC-IN
Physical
Characteristics
Dimension(W*H*D) 257mm×176mm×62mm
Opening Size(W*H) 249mm×162mm (1.40/1.90mm larger than actual opening size)
Net Weight 2.26kg
Operating
System
Operating System Supports Windows10, Linux
Power Supply Input Voltage 9-36VDC
Maximum Power
Consumption
31W
LCD Screen Screen Type 10.1" Full HD TFT
Resolution 1280×800
Maximum Color 16.7MB
Be In A Poor Light LED
Backlight
Mtbf(Hours)
1500hrs
Pixel Pitch 0.0565×0.1695
Luminance 400cd/m2
Contrast 800:1
Perspectives (L)85/(R)85/(T)85/(B)85
Touch Screen Touch Screen Type 10-contact capacitive touch screen,
  high-temperature five-wire resistive touch screen,no-touch
Transmittance >85%
Controllers USB port
Response Time
(Stylus)
<5ms
Surface Hardness Mohs hardness 6H
Touch Life 250g/35,000,000 times
Stroke Life 250g/5,000,000 times
Environmental
parameters
Operating
Temperature
0~50°C(32~122°F)(Using normal temperature rated SSDs)
Customized Version -20~60°C(-4~140°F)(Use of wide temperature rated SSDs)
Storage Temperature -20~60°C(-4~140°F)
Relative Humidity   10~95%RH@40C,non-condensing
Vibration
During  Operation
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis
Emc SSD applied:10G,half-sine wave
Shock At Work CE/FCC Class B
Waterproofing Front panel with IP65 protection rating
