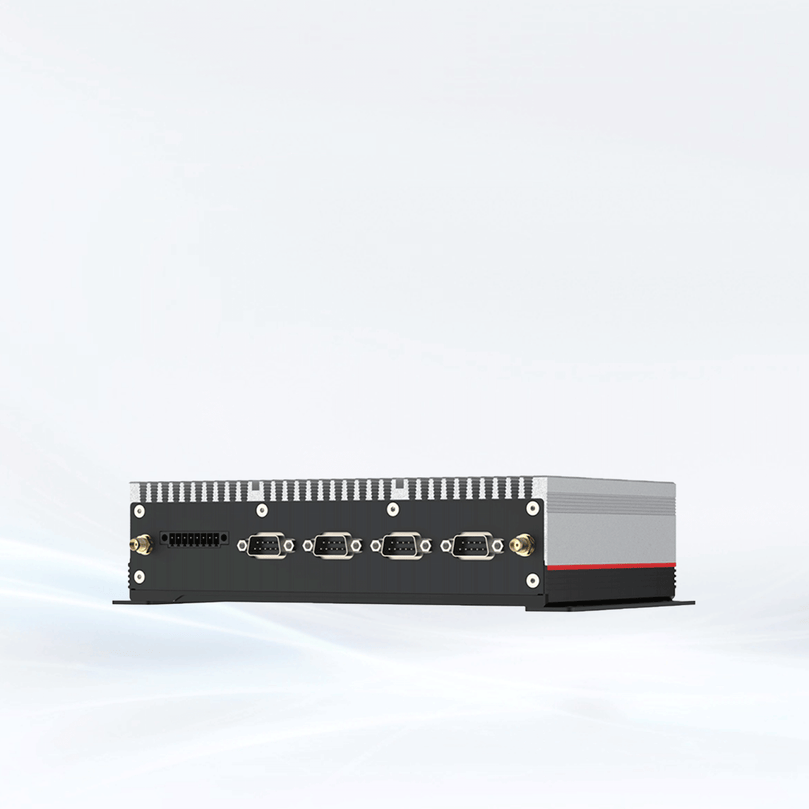

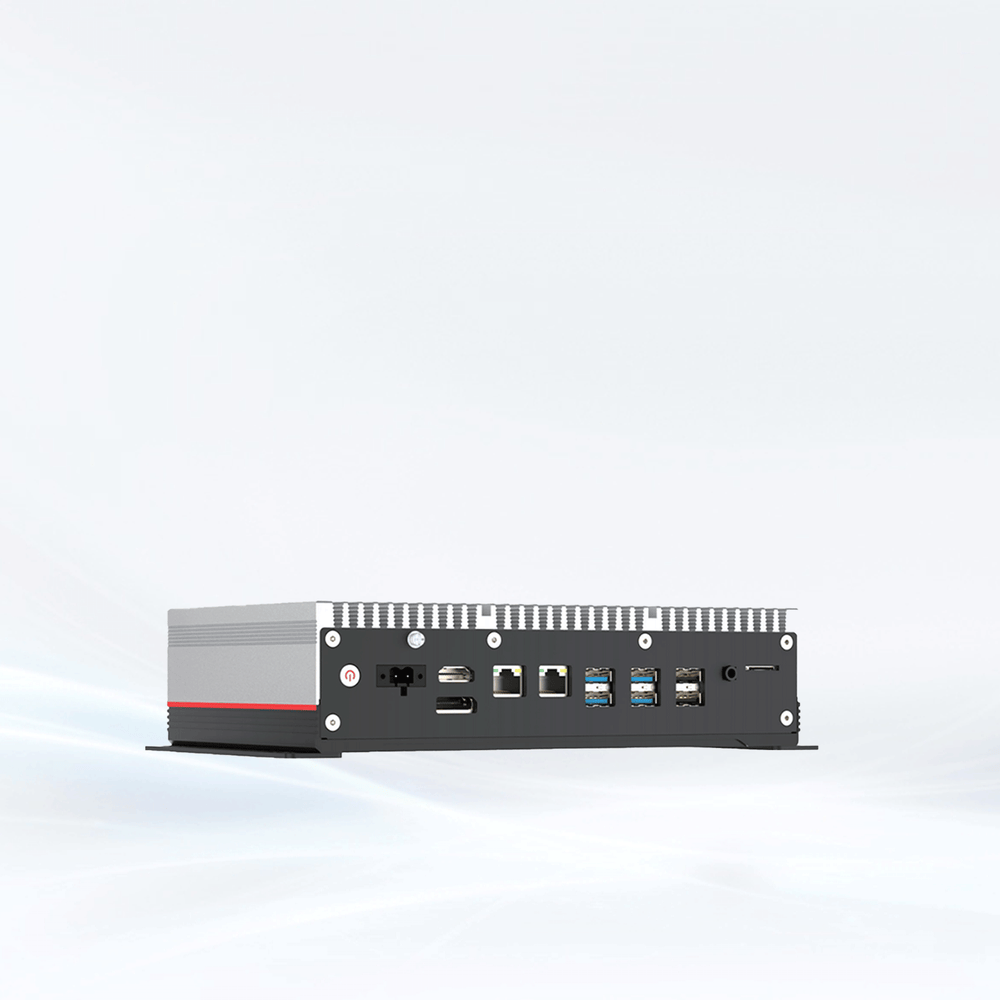

FMPC-J-8G128G
- Regular price
- $1,353.99
- Sale price
- $1,353.99
- Regular price
-
- Unit price
- per
QUAD-CORE, FOUR THREADS / WIFI, BLUETOOTH, 4G, 5G / SOLID-STATE HARD DISK MAXIMUM SUPPORT 1T / ADAPTIVE GIGABIT NETWORK CHIP
Download related documents and software
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMPC-J-8G128G | |
| System Parameters |
CPU | Intel® CeleronTM J6412 |
| Frequency | Quad Core Quad Thread/2.0GHz | |
| Random Access Memory(Ram) |
Support DDR4-3200,1*SO-DIMM,Maximum support 32GB | |
| Stockpile | 1*SATA3.07P Connector/M.2 Connector,1*mSATA(3.0) | |
| I/O Interface | Reticulation | 2*Intel® 2.5Gbps PCle Ethernet Controller,RJ45 |
| Sound Frequency | Realtek® HDA Codec,with MIC/Line-out and Amplifier | |
| Usb | 4*USB3.0, 2*USB2.0 | |
| Serial Port (Computing) |
6*RS-485 (Terminal, with Isolation) | |
| Expansion Slot | 1*Mini PCle(4G/dual network port module,etc.) | |
| Other Interfaces | 1*HDMI,1*DC-IN,1*Remote SW,1*SIM slot,1*DisplayPort | |
| Physical Characteristics |
Dimension(W*H*D) | 240mm×150mm×58mm |
| Net Weight | About 1.96kg | |
| Operating System |
Operating System | Supports Windows10, Linux |
| Power Supply | Input Voltage | 9-36VDC |
| Maximum Power Consumption |
16W | |
| Environmental parameters |
Operating Temperature |
0~50°C(32~122°F)(Using normal temperature rated SSDs) |
| Customized Version | -20~60°C(-4~140°F)(Use of wide temperature rated SSDs) | |
| Storage Temperature | -20~60°C(-4~140°F) | |
| Relative Humidity | 10~95%RH@40C,non-condensing | |
| Vibration During Operation |
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis | |
| Emc | SSD applied:10G,half-sine wave | |
| Shock At Work | CE/FCC Class B | |
| Waterproofing | Front panel with IP65 protection rating | |
