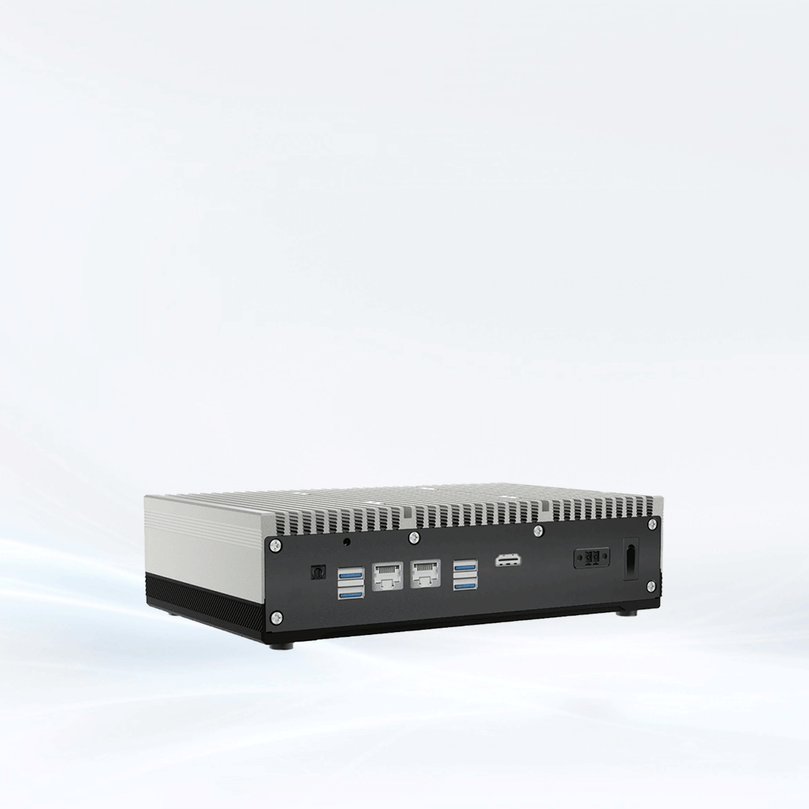

FMPC-i5-8G128G
- Regular price
- $2,269.99
- Sale price
- $2,269.99
- Regular price
-
- Unit price
- per
QUAD-CORE, FOUR THREADS / WIFI, BLUETOOTH, 4G, 5G / SOLID-STATE HARD DISK MAXIMUM SUPPORT 1T / ADAPTIVE GIGABIT NETWORK CHIP
Download related documents and software
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMPC-i5-8G128G | |
| System Parameters |
CPU | i5-1155G7/i5-1135G7 |
| Frequency | Quad-core and eight-thread, 2.5GHZ-4.5GHZ main frequency |
|
| Random Access Memory(Ram) |
Supports DDR4 high-speed memory up to 32GB | |
| Stockpile | 1*3.0” SATA+1*M.2 2280 M-key Slot | |
| I/O Interface | Reticulation | 2*Intel® 2.5Gbps PCle Ethernet Controller,RJ45 |
| Sound Frequency | Realtek® HDA Codec,with MIC/Line-out and Amplifier | |
| Usb | 4*USB 3.0 | |
| Serial Port (Computing) |
3*RS-232,2*RS-232/RS-485(COM5/COM6) | |
| Expansion Slot | 1 M.2 2242/50 B-Key card slot on board, support 4G; WiFi wireless card |
|
| Other Interfaces | 2*HDMI/DC-IN | |
| Physical Characteristics |
Dimension(W*H*D) | 218mm×151mm×60mm |
| Net Weight | About 1.96kg | |
| Operating System |
Operating System | Supports Windows10, Linux |
| Power Supply | Input Voltage | 9-36VDC |
| Maximum Power Consumption |
21W | |
| Environmental parameters |
Operating Temperature |
0~50°C(32~122°F)(Using normal temperature rated SSDs) |
| Customized Version | -20~60°C(-4~140°F)(Use of wide temperature rated SSDs) | |
| Storage Temperature | -20~60°C(-4~140°F) | |
| Relative Humidity | 10~95%RH@40C,non-condensing | |
| Vibration During Operation |
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis | |
| Emc | SSD applied:10G,half-sine wave | |
| Shock At Work | CE/FCC Class B | |
| Waterproofing | Front panel with IP65 protection rating | |
