FMPA156-DTC8G128GN-N-P4R2B
- Regular price
- $1,819.00
- Sale price
- $1,819.00
- Regular price
-
- Unit price
- per

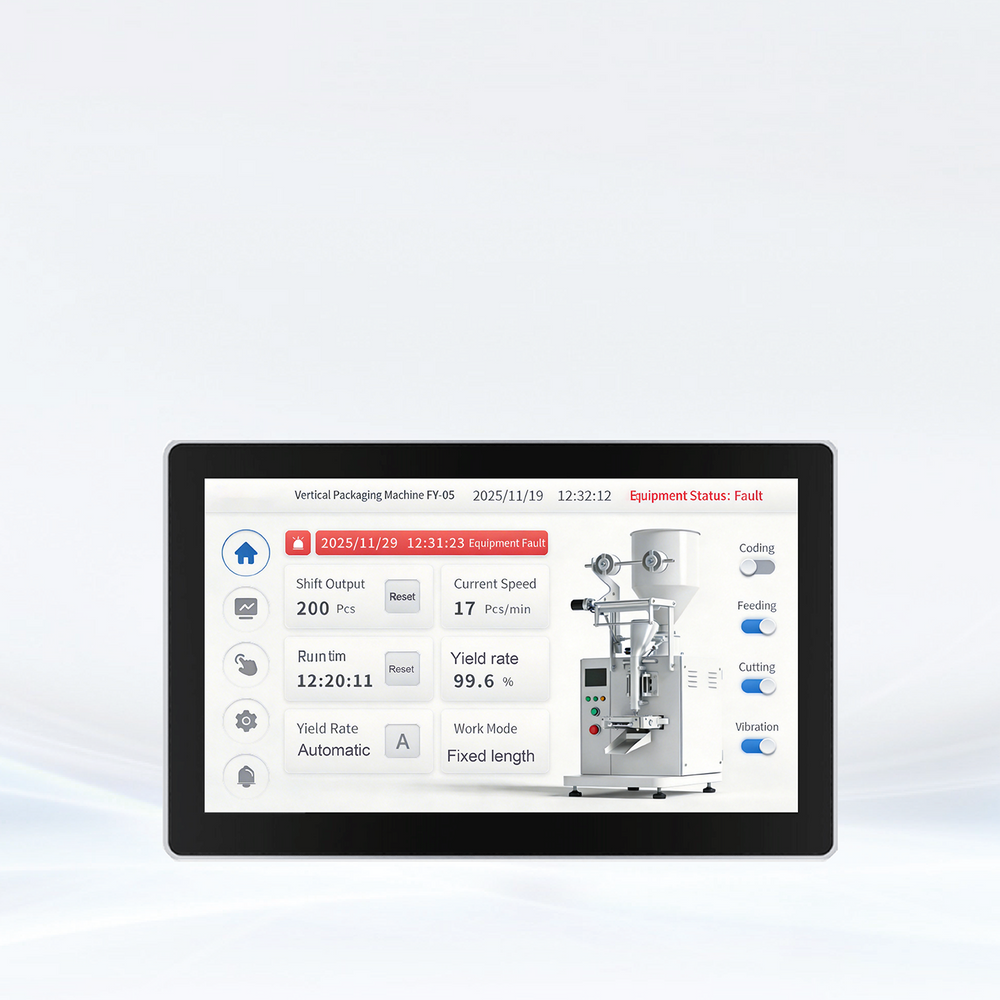

Ultra - thin fanless tablet PC with an all - aluminum body NTEL®CELERON®J6412 with a main frequency of 2.0Ghz,quad-cores and four threads 4GB DDR4 high-speed memory,supporting 8G/16G;SSD solid-state drive,supporting 128G/256G/512G/1T.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMPA156-DTC8G128GN-N-P4R2B | |
| System |
CPU | Intel®Celeron™J6412 |
| Frequency | Quad-coreandfour threads,with amain frequencyof 2.0GHz | |
| Memory | SupportsDDR4-3200,1*SO-DIMM,Slot,with options of 8GB | |
| Storage | 1*SATA 3.07P Connector/M.2 Connector;1*mSATA(3.0); SSD (Solid State Drive),supporting 128GB |
|
| I/O Interface | Network | 2*Intel®2.5Gbps PCIe,RJ-45 Ethernet ports |
| Audio | Realtek®HDA Codec,with MIC/Line-out and Amplifier | |
| USB | 4*USB3.0/2*USB2.0 | |
| Serial Port |
4*RS-232; 2*RS-232/RS-485 |
|
| Expansion Slot | NA | |
| Other Interfaces | 1*HDMI、1*DC-IN、1*Remote SW、1*SIM Card Port、1*Display Port | |
| Physical Characteristics |
Dimension(W*H*D) | 392mm×246mm×62mm |
| Opening Size(W*H) | 378mm×234mm(1.80/1.90mm larger than the actual hole opening size) | |
| Net Weight | 3.18kg | |
| Operating System |
Operating System | Supports Windows10, Linux |
| Power Supply | Input Voltage | 9-36VDC |
| Maximum Power Consumption |
21W | |
| LCD Screen | Screen Type | 15.6" Full HD TFT |
| Resolution | 1920×1080 | |
| Maximum Color | 16.7MB | |
| Be In A Poor Light | LED | |
| Backlight MTBF(hour) |
15000 | |
| Pixel Pitch | 0.197mm×0.197mm | |
| Brightness | 200cd/m2 | |
| Contrast Ratio | 400:1 | |
| Viewing angle | (L)89°/(R)89°/(T)89°/(B)89° | |
| Touch Screen | Touch Panel | Capacitive Touchscreen |
| Light Transmittance | >85% | |
| Controller | USB port | |
| Response Time(Touch Pen) |
<5ms | |
| Surface Hardness | Mohs hardness 6H | |
| Touch Life | 35,000,000 times at 250g | |
| Stroke Life | 5,000,000 times at 250g | |
| Environmental Parameters | Operating Temperature |
0~50°C(32~122°F)(Using normal temperature rated SSDs) |
| Customized Version | -20~60°C(-4~140°F)(Use of wide temperature rated SSDs) | |
| Storage Temperature | -20~60°C(-4~140°F) | |
| Relative Humidity | 10~95%RH@40C,non-condensing | |
| Vibration During Operation |
SSD applied:1.5 Grms,5~500 Hz,1 hr/axis | |
| Emc | SSD applied:10G,half-sine wave | |
| Shock At Work | CE/FCC Class B | |
| IP Rating | The front panel reaches the IP65 protection level | |
