FMDP215
- Regular price
- $781.00
- Sale price
- $781.00
- Regular price
-
- Unit price
- per

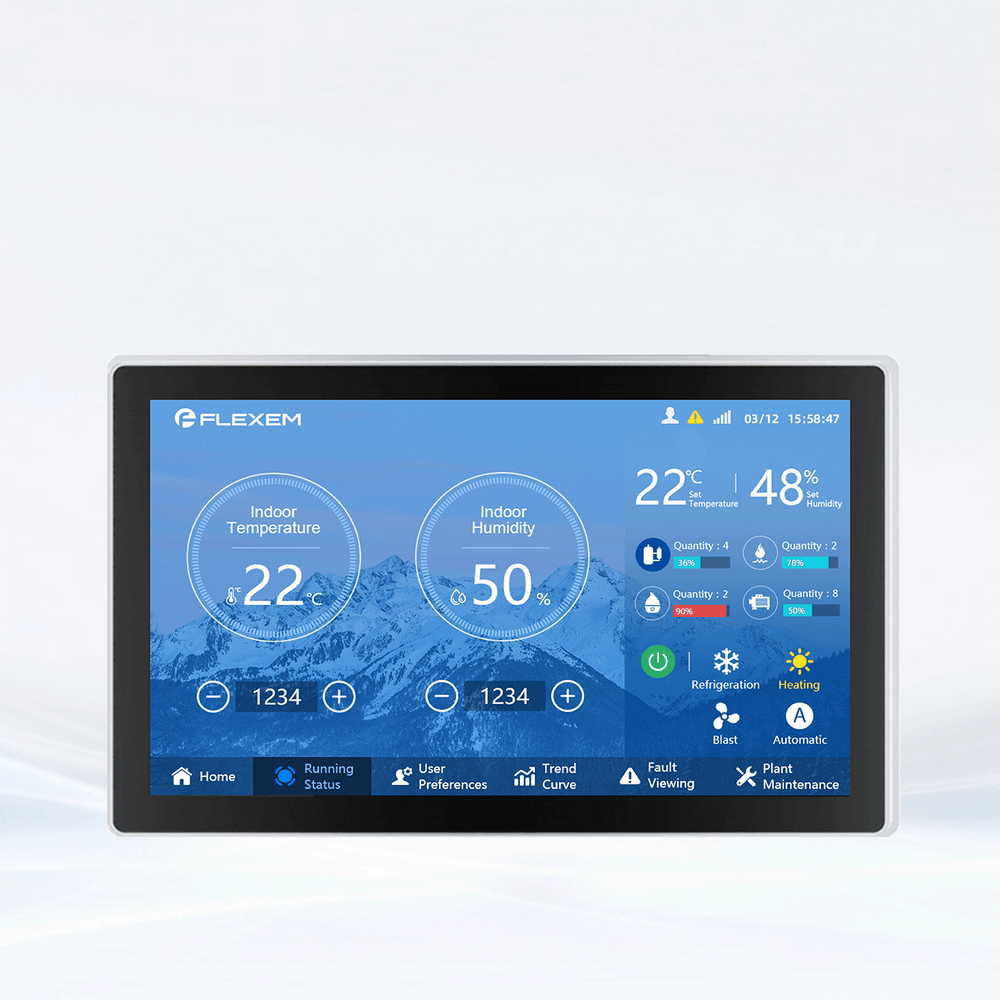

Ultra-thin all-aluminum body touch monitor . 21.5 inches,16:9 widescreen,with a resolution of 1920*1080.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMDP215 | |
| Interface | Keys | The back panel is equipped with OSD control keys,which can adjust the contrast and brightness |
| USB | 1USB (for touch)(Serial port touch can be customized) | |
| Rear I/O Interface | 1*HDMI/1*VGA/1*DVI/1*USB (for touch) | |
| Structure | The front panel is made of 6061 aluminum alloy with silver hard anodization (injection molding is optional) | |
| Physical Characteristics | Dimensions (W*H*D) | 533mm×325mm×55mm |
| Cutout Dimensions (W*H) | 514mm×311mm( 1.40/1.81mm larger than the actual hole opening size) | |
| Weight | 6.7kg | |
| Power Supply | Rated Power | 12VDC (powered by terminal,with Phoenix Contact) |
| Maximum Power Consumption | 17W | |
| Liquid Crystal Display (LCD) Screen | Display Device | 21.5" Full HD TFT |
| Resolution | 1920*1080 | |
| Colors | 16.7MB | |
| Backlight | LED | |
| Backlight MTBF(hour) | 50000 | |
| Pixel Pitch | 0.248*0.248 | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 1000：1 | |
| Viewing angle | (L)89° /(R)89° /(T)89° /(B)89° | |
| Touchscreen | Touch Panel | 10-point capacitive touchscreen,no touch |
| Light Transmittance | >85% | |
| Controller | USB port(Serial port touch can be customized) | |
| Response Time (Touch Pen) | <5ms | |
| Surface Hardness | Mohs hardness 6H | |
| Touch Life | 35,000,000 times at 250g | |
| Stroke Life | 5,000,000 times at 250g | |
| Environmental Parameters | Operating Temperature | 0~50°C(32~122°F)(using ordinary temperature grade SSD) |
| Customized Version | -20~60°C(-4~140°F)(using wide temperature grade SSD) | |
| Storage Temperature | -20~60°C(-4~140°F) | |
| Relative Humidity | 10~95% RH@40°C,non-condensing | |
| EMC | CE/FCC Class B | |
| IP Rating | The front panel reaches the IP65 protection level. | |
