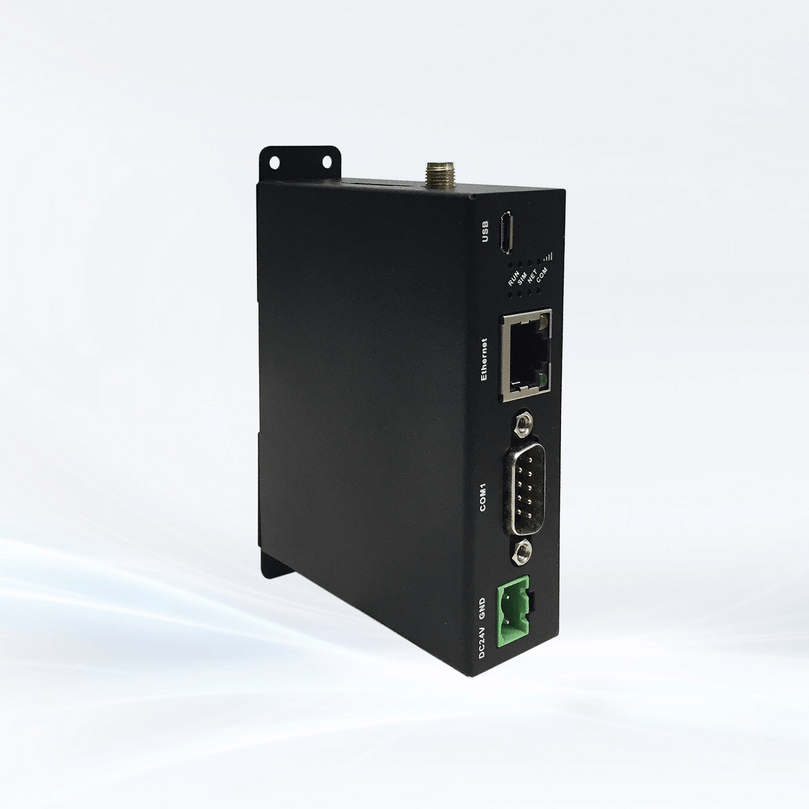

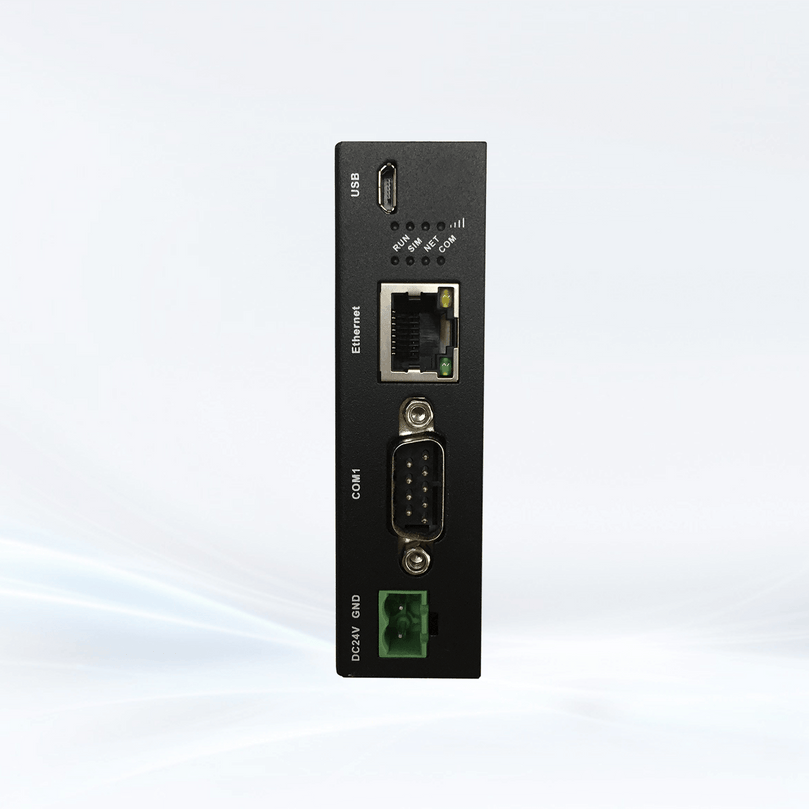

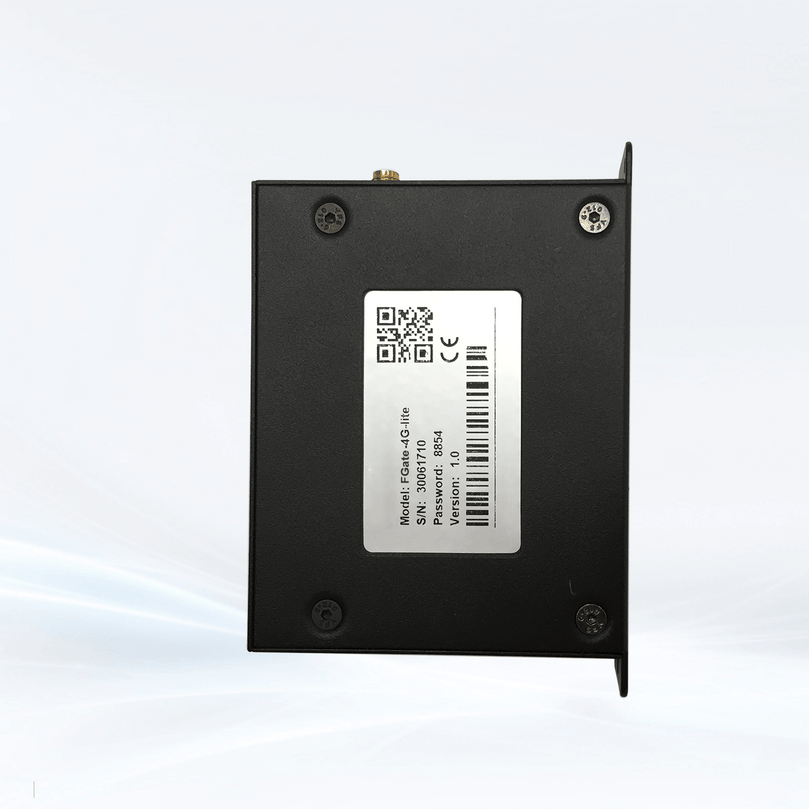

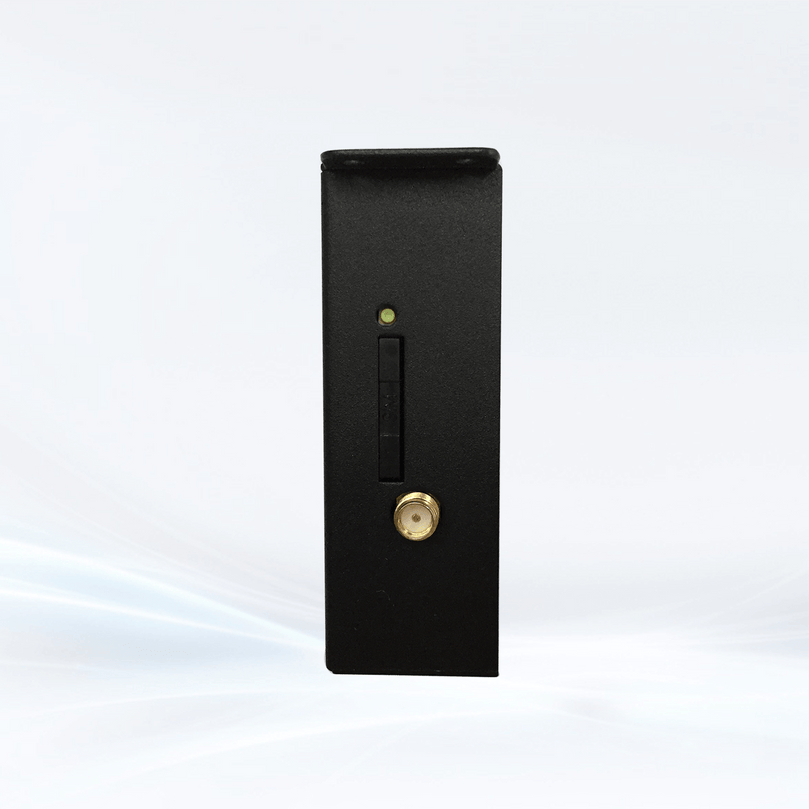

FGate-Lite-NA

Regular price: $313.99
Sale price: $313.99
Regular price
Unit price: per

FGate-lite-NA is a lightweight industrial IoT gateway designed for small industrial projects and edge computing scenarios. Compared with FBox, FBox-lite is smaller in size, has simpler interfaces, and is more cost-effective, meeting the data collection and remote operation and maintenance needs of mainstream industrial controllers.

Download documents Download software

Availability: In stock Out of stock

Product variants

Quantity

Description

FEATURES	FGate-Lite-NA
NetworkAccess	Ethernet,4G
CPU	300MHz ARM9
Storage	128MB Flash+64MB DDR3
Ethernet	1 line of 10M/100M Ethernet Port
SD Card	/
USB Port	1 USB Device 2.0,1 USB Host 2.0
IO Port	/
Serial Communication Ports	COM1:RS232/RS485/RS422,COM3:RS232
Network Frequency Range	LTE FDD:B1/B3/B5/B8 LTE TDD:B38/B39/B40/B41 WCDMA:B1/B8 TD-SCDMA:B34/B39 CDMA:BC0 GSM:900/1800MHz
RTC	Built-in
Rated Power	<5W
Input Voltage	DC24V,working range:DC9V-28V
PowerProlection	Protect from thunder strike and surging
Power Interruption Tolerance	<3mS
Certification	CE,RoHS
Operating Temperature	-10-60℃
Storage Temperature	-20-70℃
Environmental Humidity	10-90%RH (Non condensation)
Vibration Endurance	10-25Hz(X/Y/Z direction 2G/30minutes)
Cooling	Natural cooling
Dimensions	90mm75mm25mm (without antenna)
Weight	About 220g
Endosure Material	Powder coated galvanized sheet
Transparent Transmission	Available
VPN Transparent Transmission	Available
Data Monitoring	300 points
Alarm Item	30 points
Historical Item	60 points
Hisiorical Data Storage Duration	180 days
Edge Computing	It supports scipts programming
Network Protocols	It supports over 400 industrial devices protocols
Management & Maintenance	Support import,export,and remote update of configuration files
