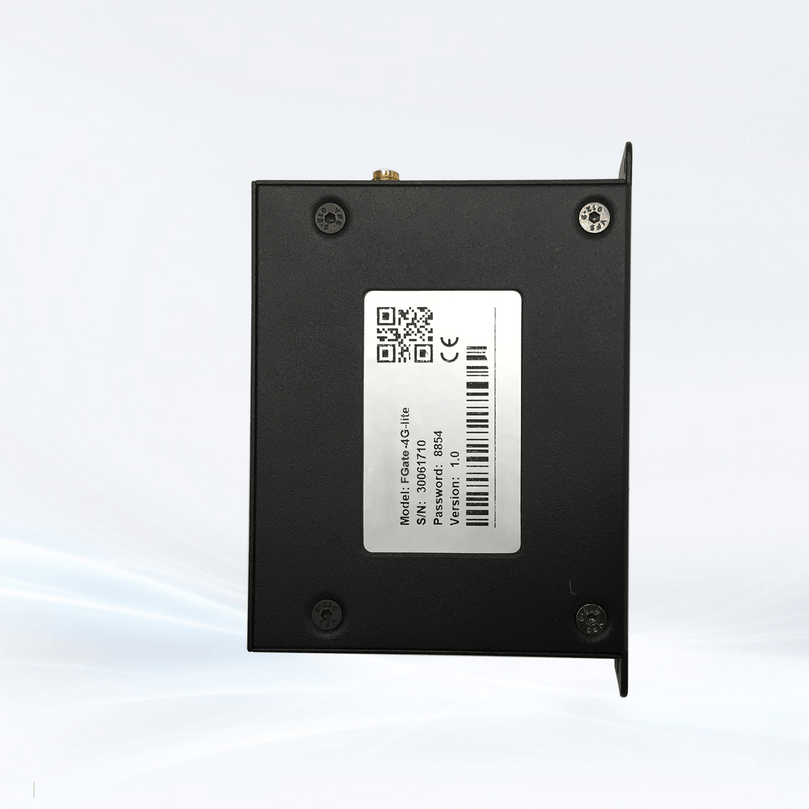

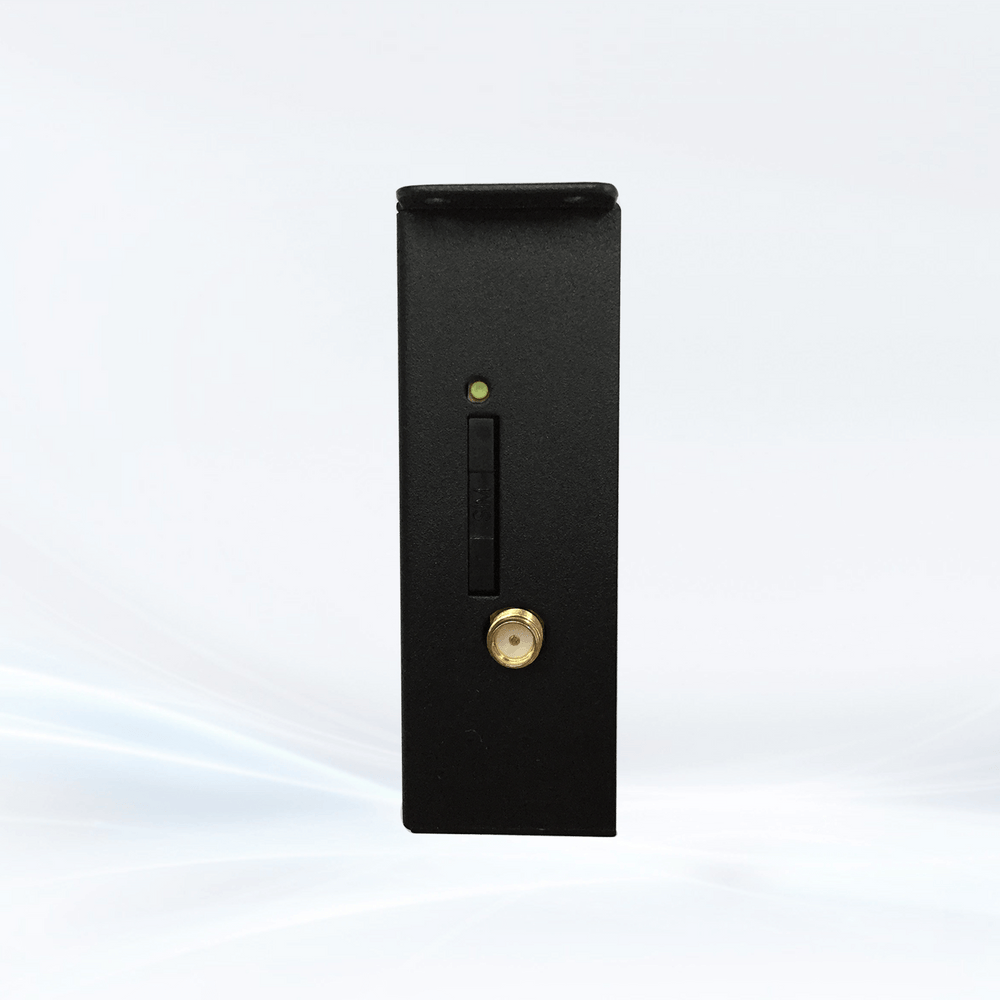

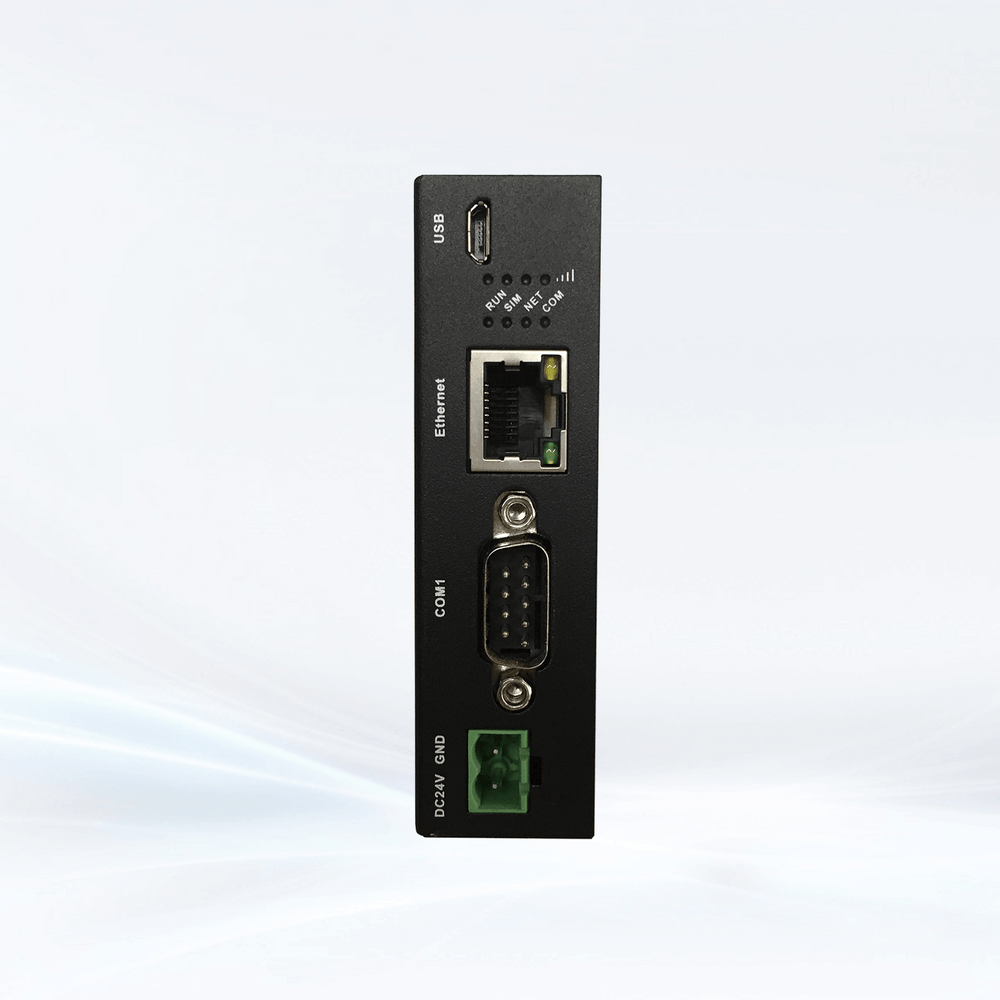

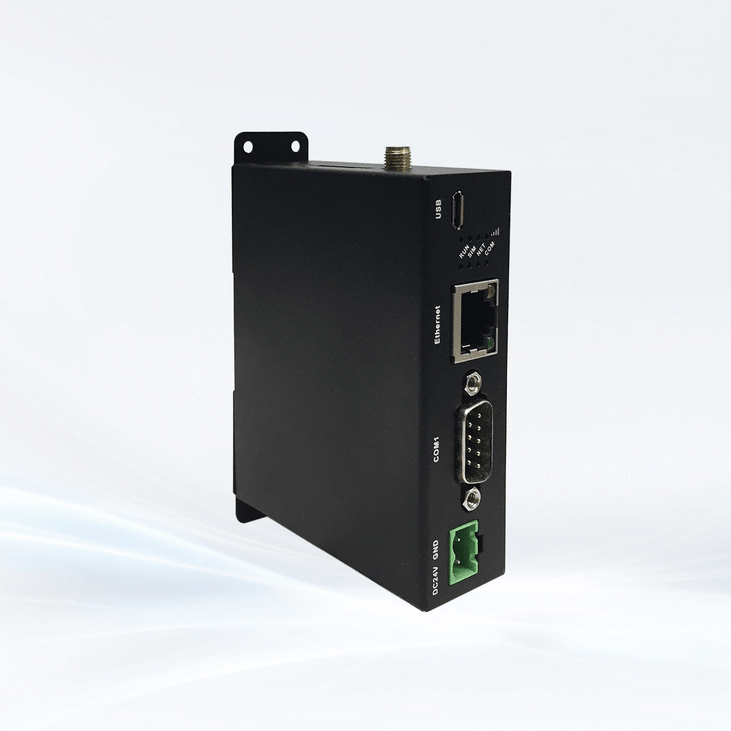

FGate-4G-lite

Regular price
$293.99
Sale price
$293.99
Regular price
FGate-lite is a lightweight industrial IoT gateway designed for small industrial projects and edge computing scenarios. Compared with FBox, FBox-lite is smaller in size, has simpler interfaces, and is more cost-effective, meeting the data collection and remote operation and maintenance needs of mainstream industrial controllers.
Download related documents and software
Availability: In stock Out of stock
FGate-4G-liteFGate-4G-liteFGate-4G-liteFGate-4G-lite
FEATURES FGate-4G-lite
NetworkAccess Ethernet,4G
CPU 300MHz ARM9
Storage 128MB  Flash+64MB DDR3
Ethernet 1 line of 10M/100M Ethernet Port
SD Card /
USB Port 1 USB Device 2.0,1 USB Host 2.0
IO Port /
Serial Communication Ports COM1:RS232/RS485/RS422,COM3:RS232
Network Frequency Range LTE FDD:B1/B3/B5/B8
LTE TDD:B38/B39/B40/B41
WCDMA:B1/B8
TD-SCDMA:B34/B39
CDMA:BC0
GSM:900/1800MHz
RTC Built-in
Rated Power <5W
Input Voltage DC24V,working range:DC9V-28V
PowerProlection Protect from thunder strike and surging
Power Interruption Tolerance <3mS
Certification CE,RoHS
Operating Temperature -10-60℃
Storage Temperature -20-70℃
Environmental Humidity 10-90%RH (Non condensation)
Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes)
Cooling Natural cooling
Dimensions 90mm*75mm*25mm (without antenna)
Weight About 220g
Endosure Material Powder coated galvanized sheet
Transparent Transmission Available
VPN Transparent Transmission Available
Data Monitoring 300 points
Alarm Item 30 points
Historical Item 60 points
Hisiorical Data Storage Duration 180 days
Edge Computing It supports scipts programming
Network Protocols It supports over 400 industrial devices protocols
Management & Maintenance Support import,export,and remote update of configuration files
