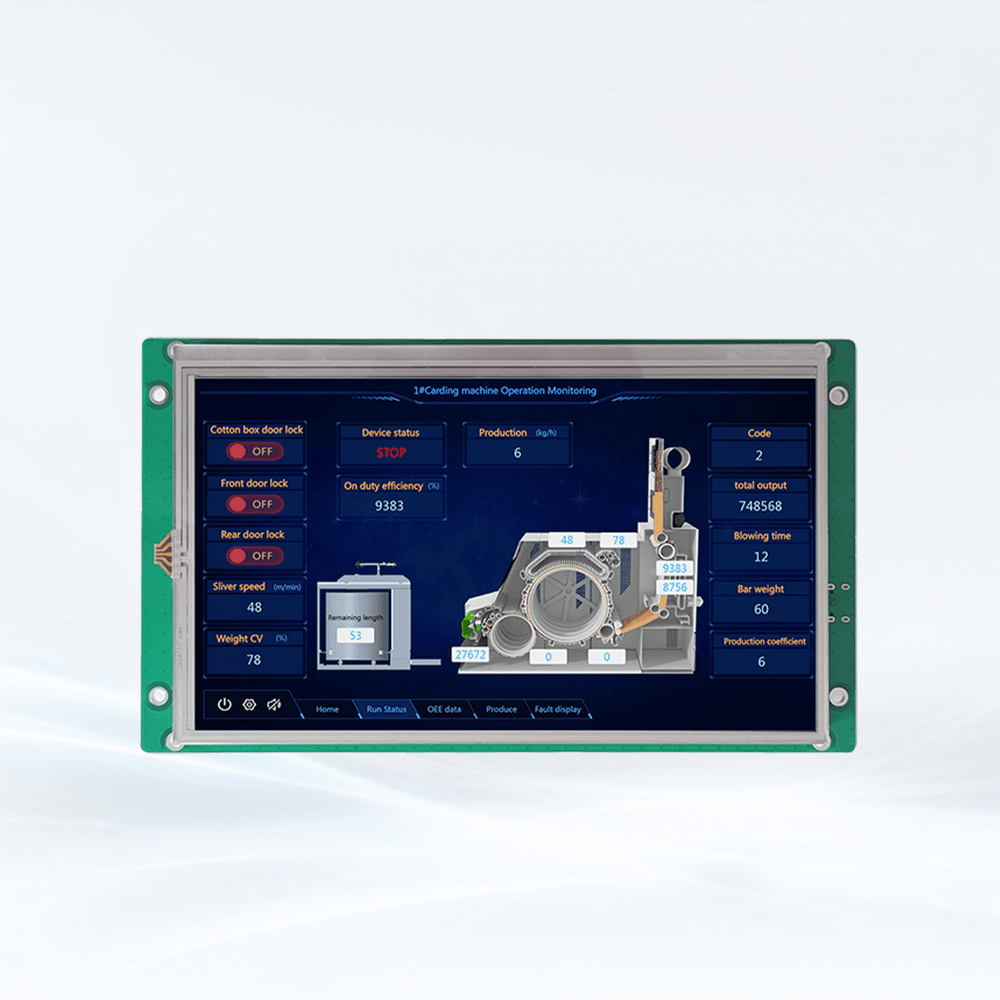

FD307R

Regular price
$255.99
Sale price
$255.99
Regular price

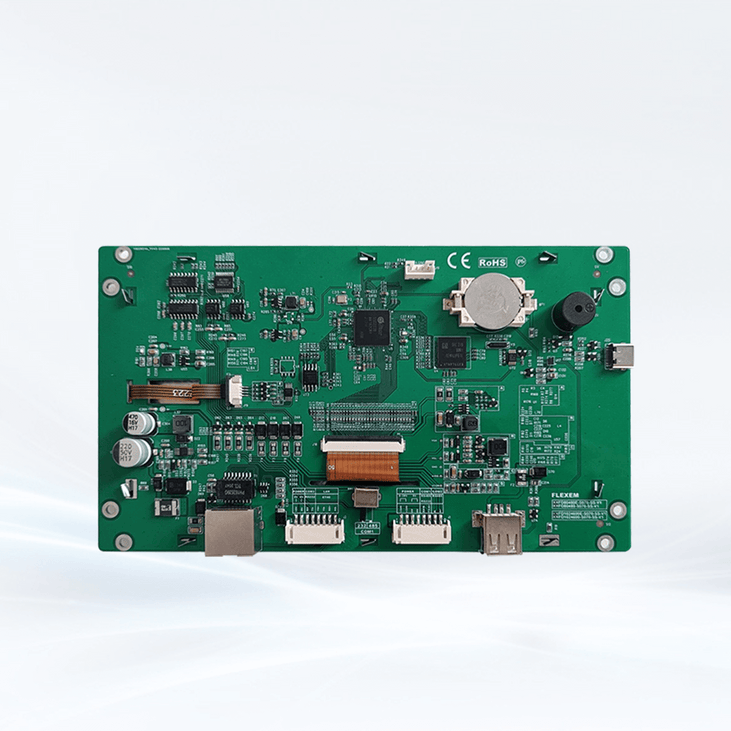

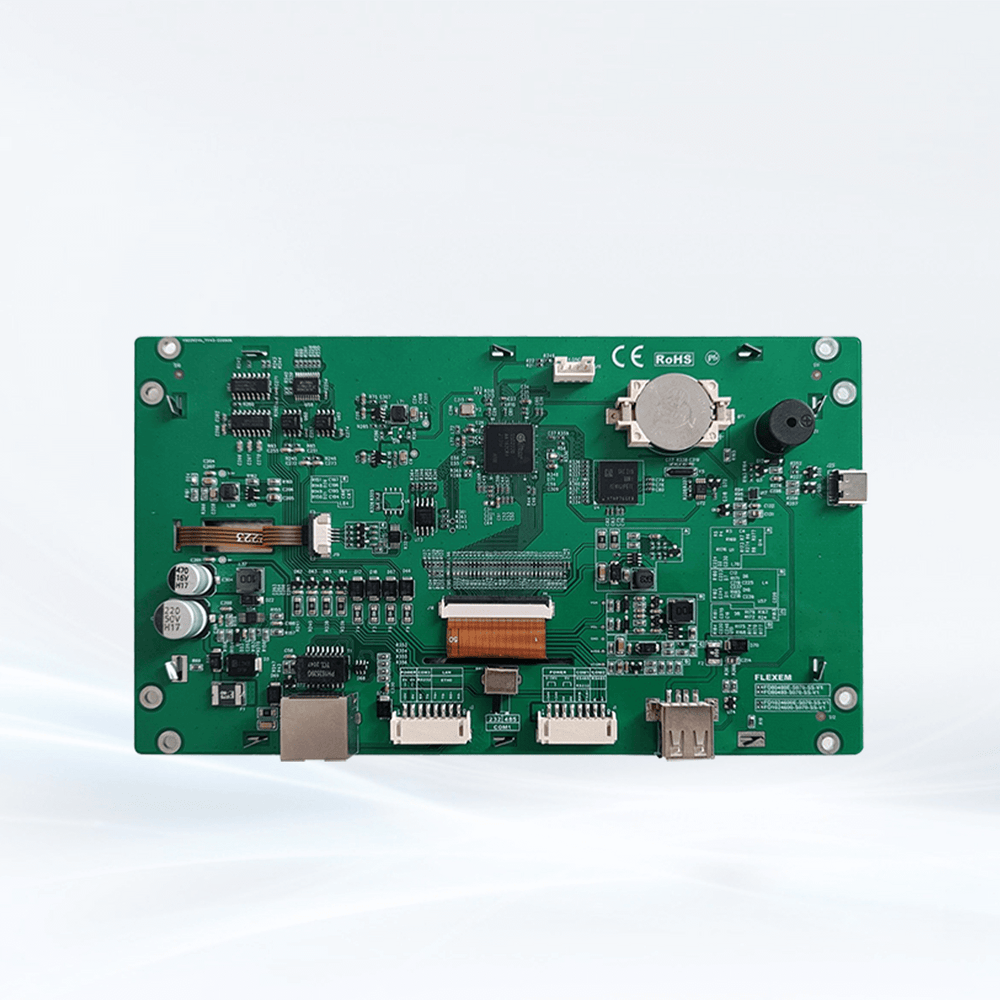

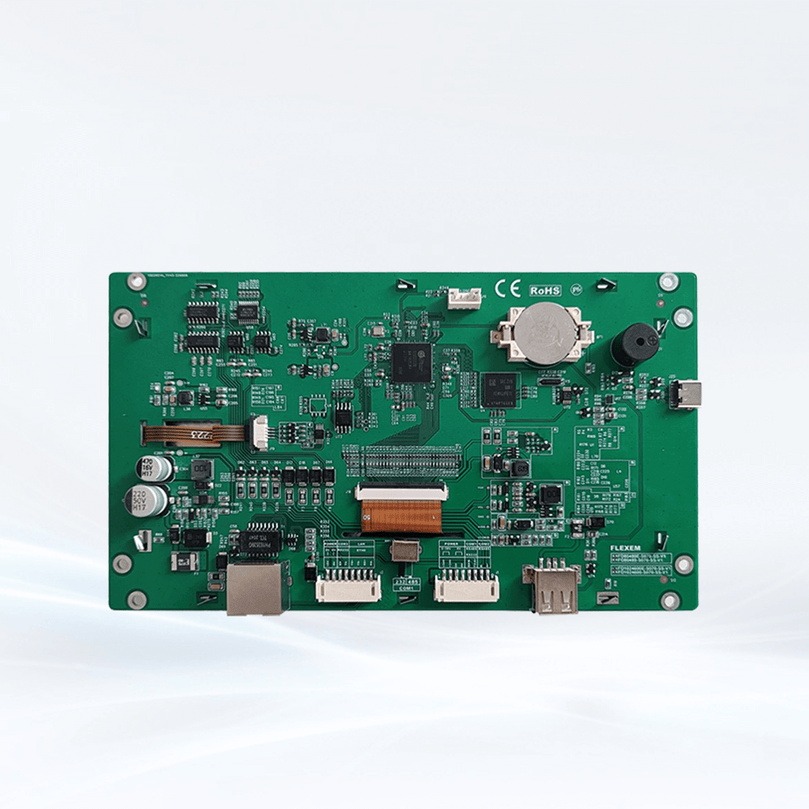

Industrial high quality components are used. Built-in installation structure without enclosure, compatible with serial port HMI. Various communication connections, supporting USB, SD card expanding connection. Compatible with powerful HMI configuration software. Reliable industrial design and high quality.
Download related documents and software
Availability: In stock Out of stock
FD307RFD307R
FEATURES FD307R
Display 7" TFT LCD
Resolution(WxH) 1024×600
Colors 24-bit
Brightness 350  cd/m²
Backlight LED
LCD Life 50000 hours
Touch Panel 4 wires resistive touch screen
CPU 1GHz,dual-Cortex-A7
Memory 4GB    eMMC+128MB    DDR
RTC Built in
Ethernet 1 10M/100M
USB Port USB Device 2.0Port*1,USB Host 2.0Port*1
Description:2 USB ports need timesharing
Download Project USB Host/USB Slave/Ethernet
COM Port COM1:RS232/RS485
COM2:RS485
COM3:RS23
LCD viewing angle
(T/B/L/R)
85'/85'/85'/85'
Power Consumption <10W
Input Power DC24V,working range:DC9V~28V
Power Protection Industrial power module,Protected from thunderstrike and
surging
Power Down Allowed <5mS
CE &RoHS Complied with EN61000-6-2:2005,EN61000-6-4:2007,ROHS,Surge Immunity:±1KV,EFT:±2KV,ESD:4KV,Air:8KV
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Anti-UV Not suitable to work in strong ultraviolet light (such as direct sunlight)
Operating Humidity 10~90%RH(no condensate)
Vibration Endurance 10~25Hz(X,Y,Z direction 2G/30min)
Cooling Natural air cooling
Panel Cutout 166mm×101mm
Dimension 190.4mm×110mm×27mm
Weight About 300g
