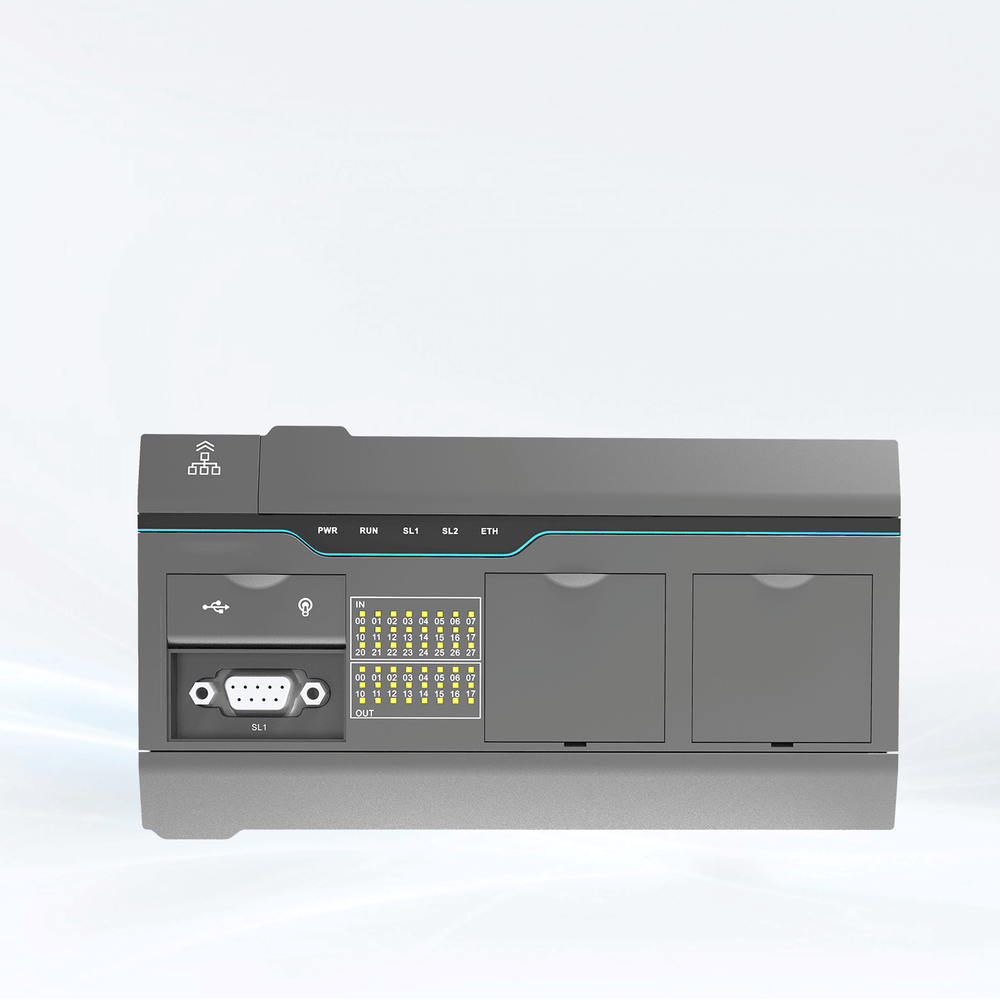

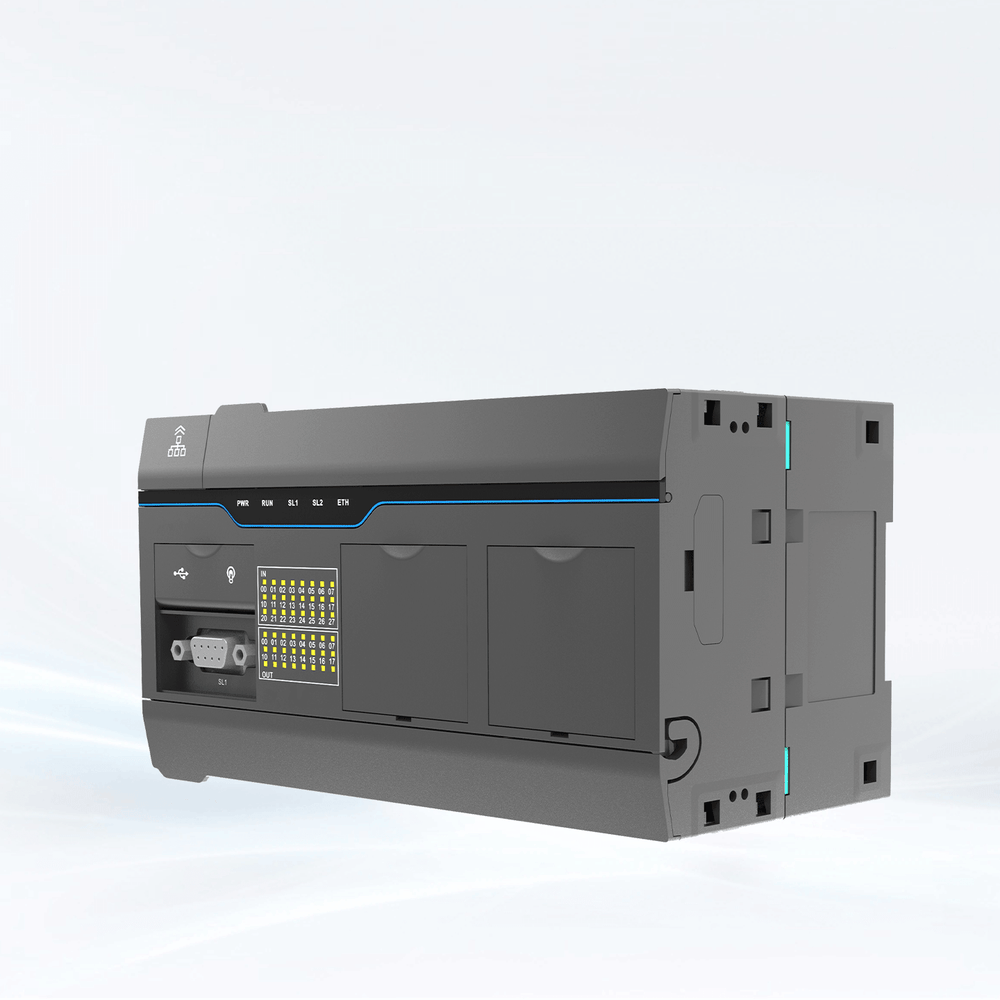

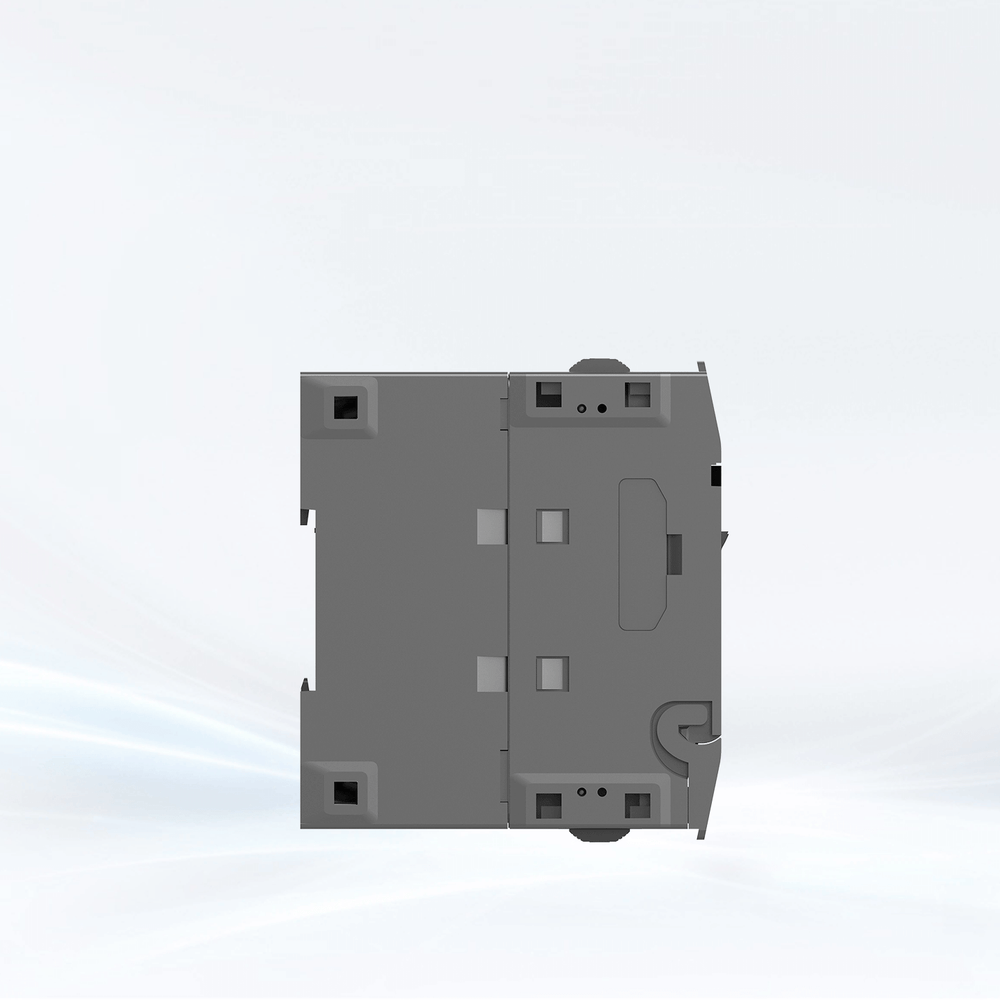

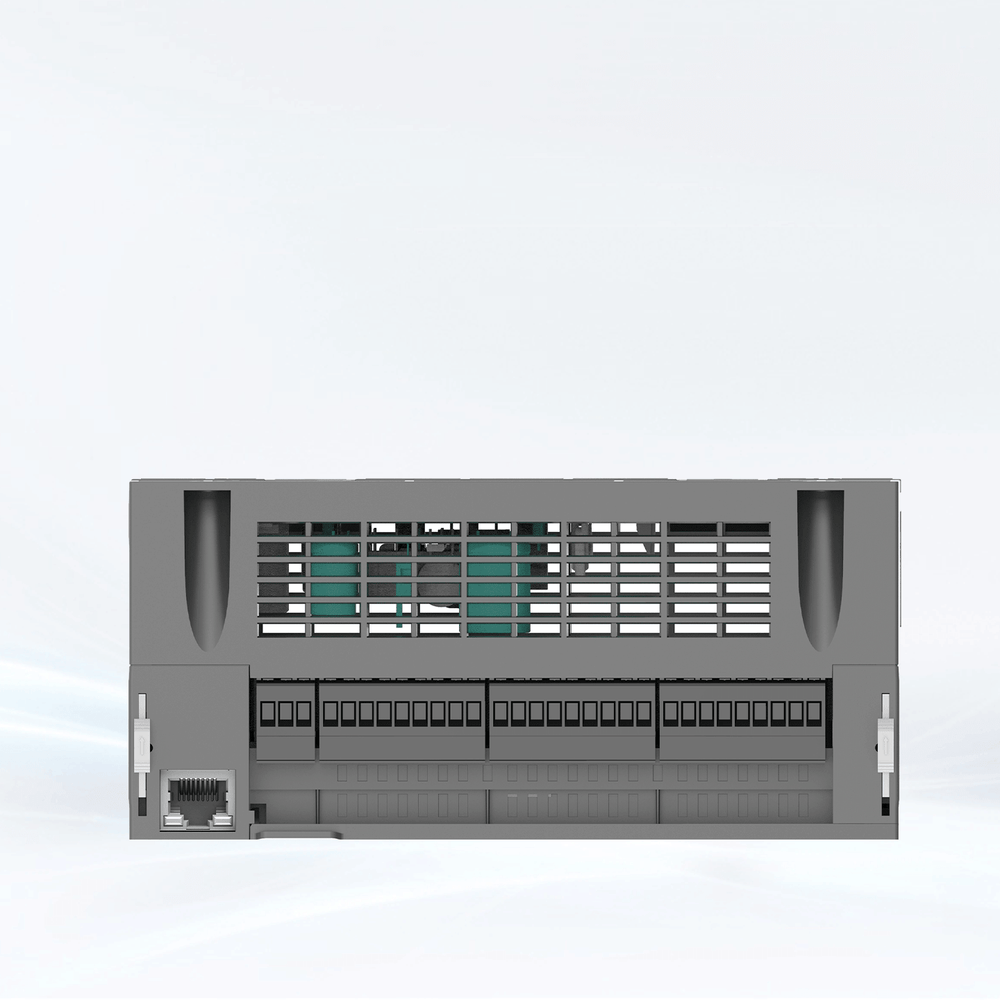

FC5-40MN-DC

Regular price: $326.99
Sale price: $326.99
Regular price
Unit price: per

FC5 series PLC is developed with IEC61131-3 architecture and PLC OPEN standard instruction set. It supports electronic cam, gear, interpolation and other motion control functions, has built-in Ethernet and serial port, object-oriented programming concept, and is extremely cost-effective.

Download related documents and software

Availability: In stock Out of stock

Product variants

Quantity

Description

FEATURES		FC5-40MN-DC
Built in I/O		40
Input Points		24
Output Points		16
High Speed Pulse Input		None
High Speed Pulse Output		None
Expansion Ability	IO Expansion Modules	It depends on CPU power supply (MAX 31)
	Expansion Board	2
	Modbus Communication	2 channels (1DB9,1terminal block)
Communication Ports	USB Type-C	Program download and upload,online monitoring,firmware upgrading
	RS232/RS485	Serial port 1:RS485/232,Serial port 2:RS485,Baud rate:4800-115200bps
	Ethernet Port	1*RJ45,10/100M,self adaptive
RTC		Built in
