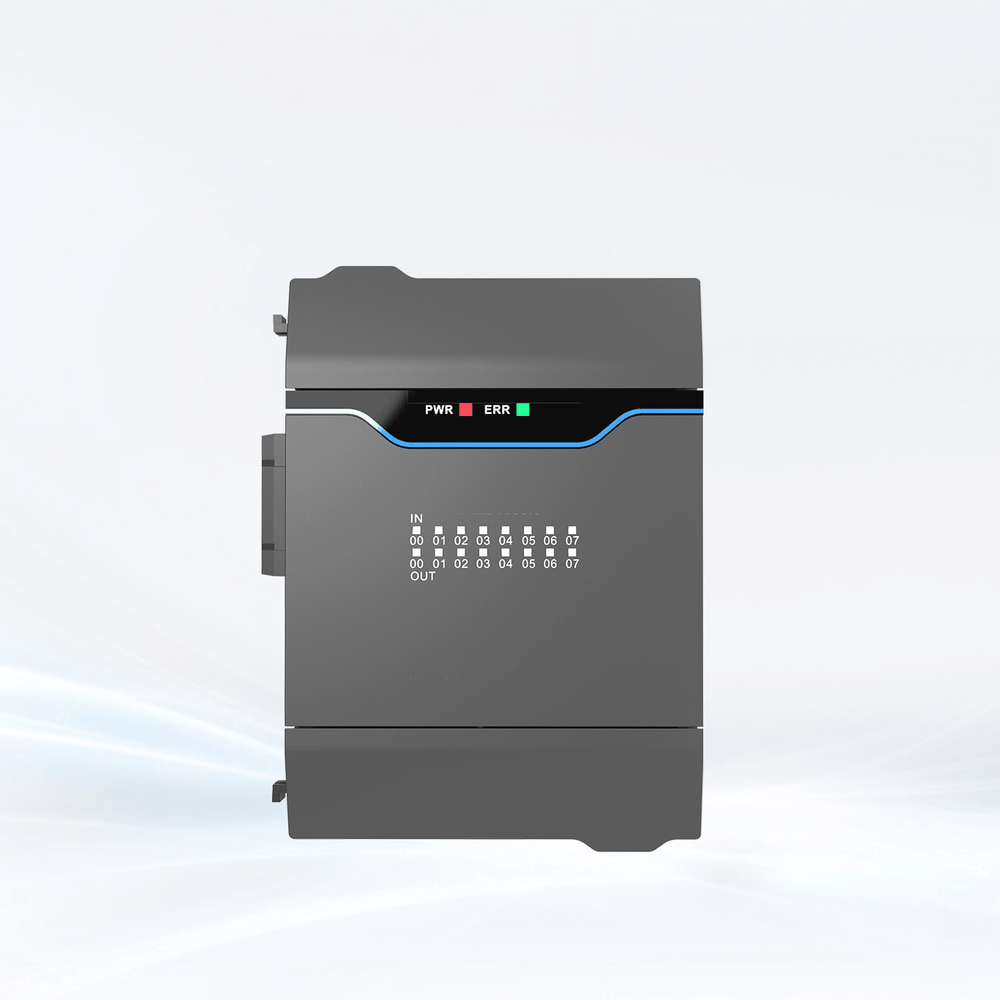

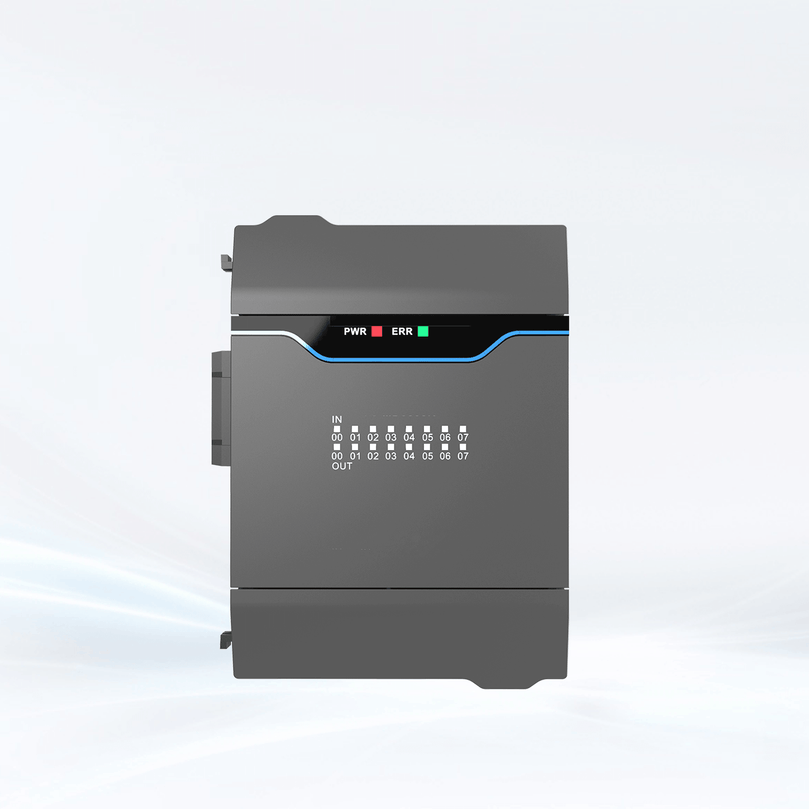

F5-MA0404A/0402A

Regular price: $255.99
Sale price: $255.99
Regular price
Unit price: per

Download related documents and software

Availability: In stock Out of stock

Product variants

Quantity

Description

FEATURES	F5-MA0404A/0402A
Input	4
Output	4/2
Resolution	16-bit
Input/Output Signa	Input: Voltage-10V~10V, Current 0~20mA output: Voltage 0V~10V, Current 0~20mA
Full Range Value	Customized (-30000~30000)
Conversion Precesion (Full Scale Range)	Input± 0.2% Output± 0.5%
Maximum Input Signal allowed	Voltage:30V Current:30mA
Imoedence Input	Voltage>200Kohms Current<250ohms+5%
Output load Range Allowed	Voltage>2k ohms Current<500 ohms
Power Rupply	24VDC-15%/+20%,3.2W max.The main unit is provided internally without external input
Wiring Strucutre	Removable terminal block
Working Temperature	-10~60℃
Storage Temperature	-20~70℃
Environment Humidity	5%~95%RH (Non-condensing)
Installaton	Directly installed on DIN46277 (35mm width)guide rail or fixed with screws
Dimension	Dimension B
