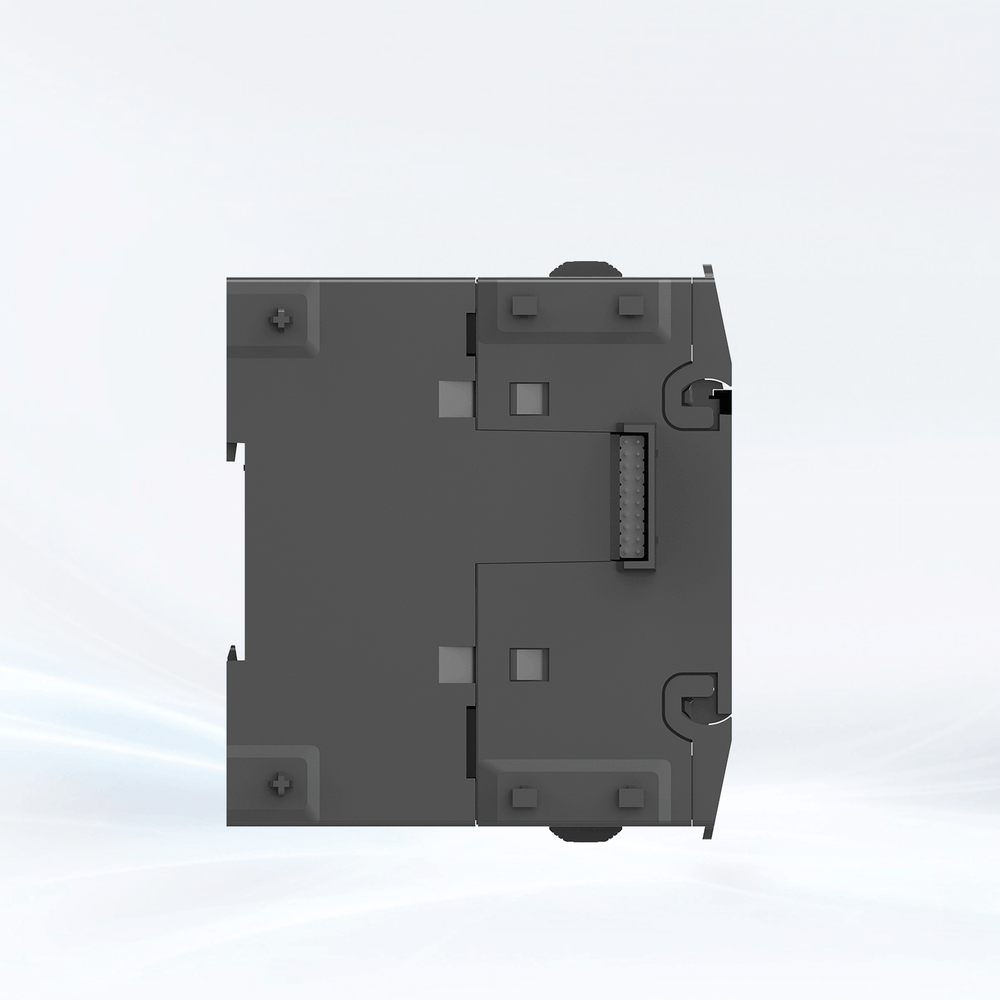

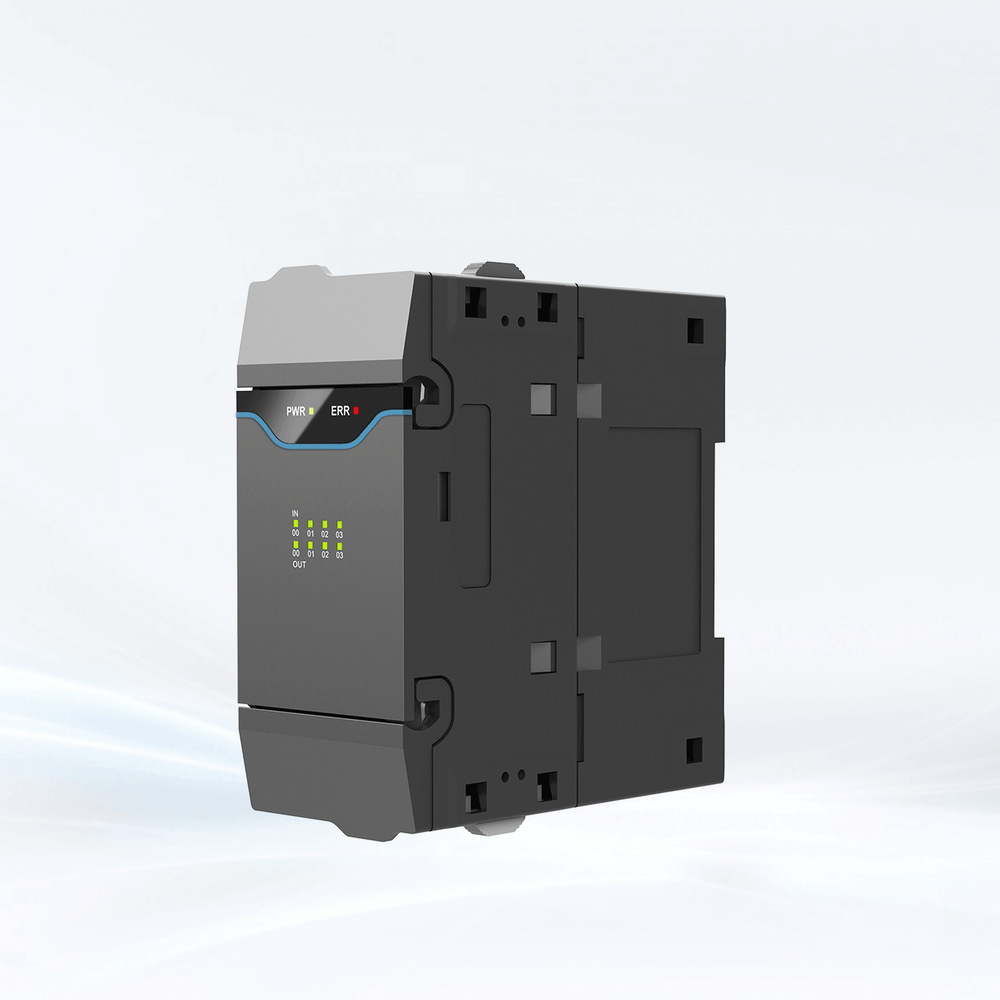

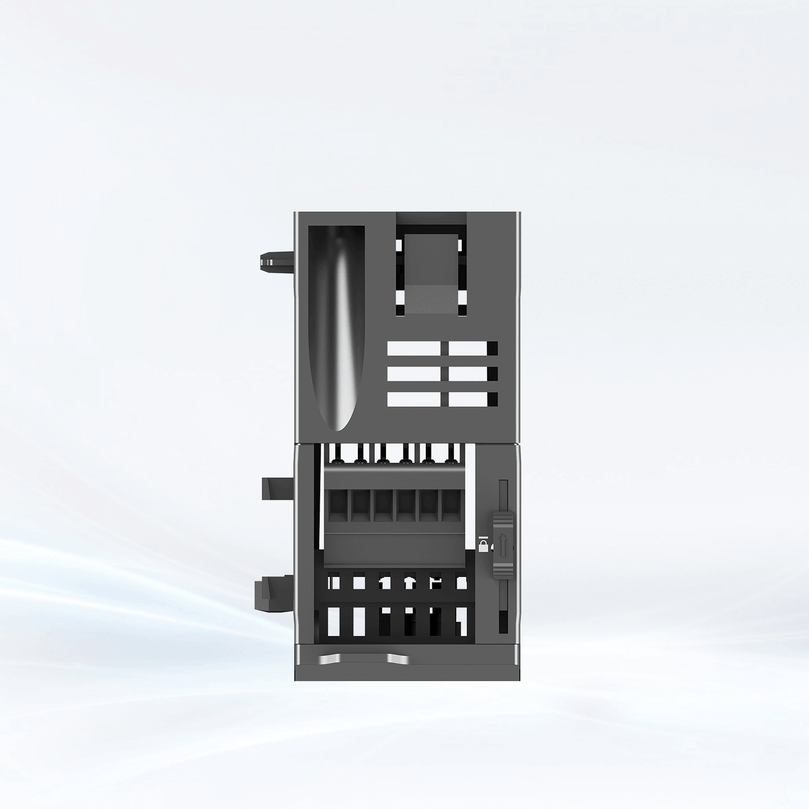

F5-MA0004A

Regular price
$141.99
Sale price
$141.99
Regular price
Download related documents and software
Availability: In stock Out of stock
F5-MA0004AF5-MA0004AF5-MA0004AF5-MA0004A
FEATURES F5-MA0004A
Input /
Output 4
Resolution 16-bit
Input/Output Signa Input: Voltage-10V~10V, Current 0~20mA
output: Voltage 0V~10V, Current 0~20mA
Full Range Value Customized (-30000~30000)
Conversion Precesion
(Full Scale Range)
±0.5%
Maximum Input Signal
allowed
/
Imoedence Input /
Output load Range Allowed Voltage>2k ohms
Current<500 ohms
Power Rupply 24VDC-15%/+20%,3.2W max.The main unit is provided internally without external input
Wiring Strucutre Removable terminal block
Working Temperature -10~60℃
Storage Temperature -20~70℃
Environment Humidity 5%~95%RH (Non-condensing)
Installaton Directly installed on DIN46277 (35mm width)guide rail or fixed with screws
Dimension Dimension A
